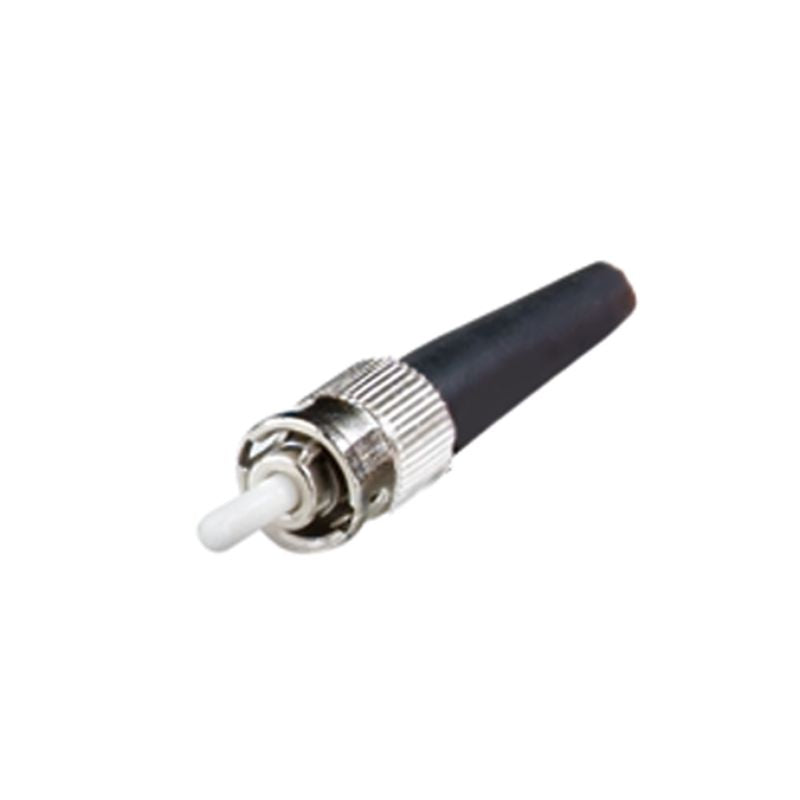

1968150000 - Multimode ST Plug Connector for Fiber Optics, 2.6-3.2mm

1968150000 - Multimode ST Plug Connector for Fiber Optics, 2.6-3.2mm

SKU: 1968150000   Download PDF

Select a Variant:
  • 1968150000 - Multimode ST Plug Connector for Fiber Optics, 2.6-3.2mm
Qty:
Now $5.52   Web pricing policy
BEFORE   $0.00 Now $5.52 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Enhance your fiber optics projects with this versatile multimode Plug ST connector, specially engineered for various applications It meets essential industry standards, including RoHS compliance, ensuring safety and eco-friendliness This connector accommodates a maximum sheath diameter of 32 mm and a minimum diameter of 26 mm, making it adaptable for multiple connection methods such as gluing, crimping, and polishing.

The TPE bending protection sleeve adds an extra layer of durability, safeguarding your cable during use.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Bending protection sleeve material is TPE.

    •Plugging cycles rated for 1000 times.

    •Minimum cable pull-out force of 100 N.

    •Dust protection cap material is TPE.

    •Crimp barrel material made of nickel-plated copper.

    •Ferrule made from zirconia.

    •Protection degree of IP20.

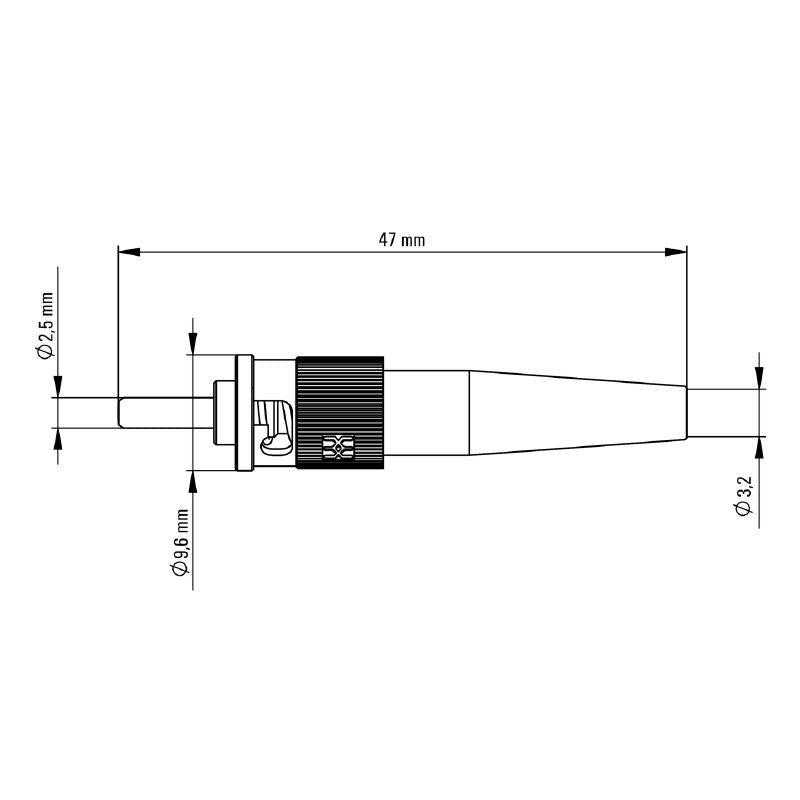

Specifications:

 Depth 47 mm
 Height 9.6 mm
 Width 9.6 mm
 Storage temperature -40 °C...90 °C
 Operating temperature -20 °C...80 °C
 Insertion loss ≤ 0.4 dB
 Return loss ≥ 30 dB
 Fibre type GOF Multimode
 Connector standard IEC 61754-2
 GTIN (EAN) 4032248667147
