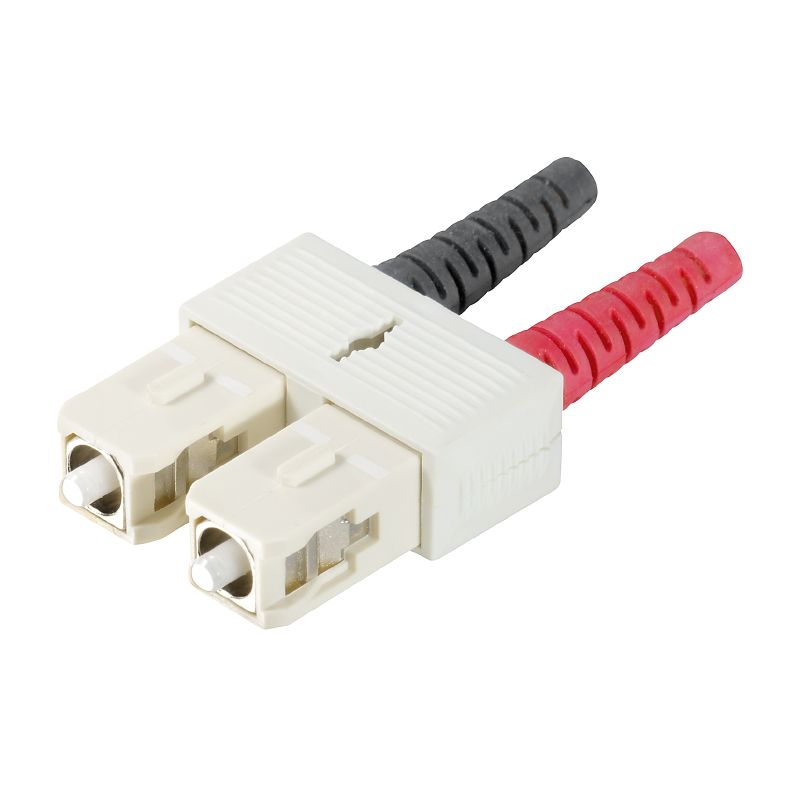

1964480000 - SC Duplex Multimode Plug, 25.5mm x 9.7mm x 50mm (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

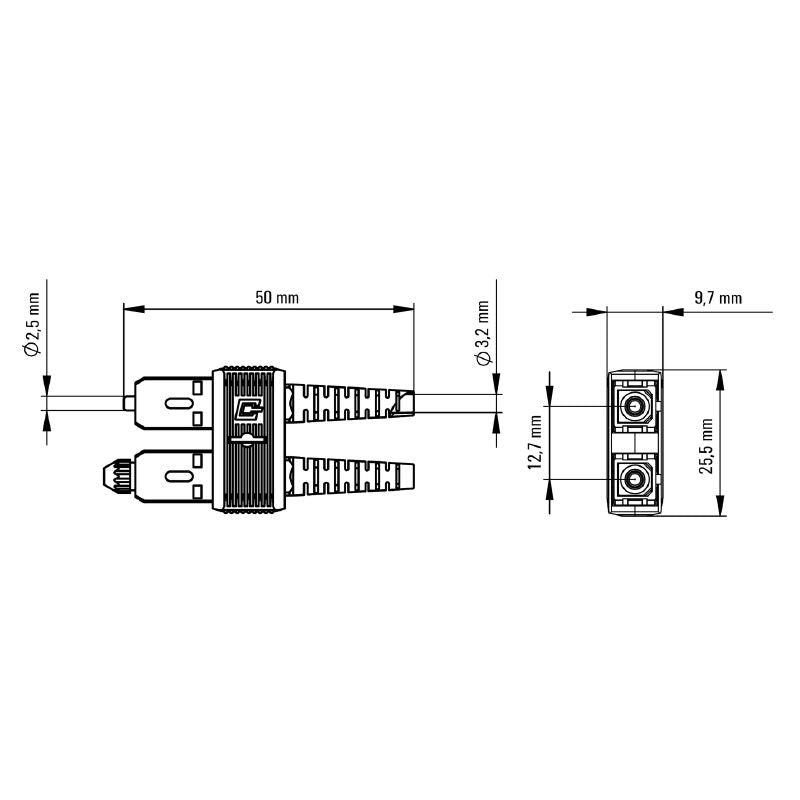

Introducing the SC duplex plug, perfect for multimode applications and compliant with various standards, including ROHS This compact connector measures 255 mm in height, 97 mm in width, and 50 mm in depth, making it ideal for versatile installations It operates efficiently in temperatures from -40 °C to 70 °C and withstands humidity levels ranging from 0% to 93% relative humidity The plug includes a robust bending protection sleeve crafted from TPE, along with a zirconia ferrule for enhanced performance.

Constructed with high-quality materials, this plug guarantees reliable connections and long-lasting durability.

Features and Benefits:

•Connector standard is IEC 61754-4.

•Insertion loss is ≤ 0.4 dB.

•Return loss (attenuation) is ≥ 30 dB.

•Capable of 1000 plugging cycles.

•Protection degree of IP20.

•Cable pull-out force minimum of 100 N.

•Humidity levels supported from 0 to 93% relative humidity.

Specifications:
