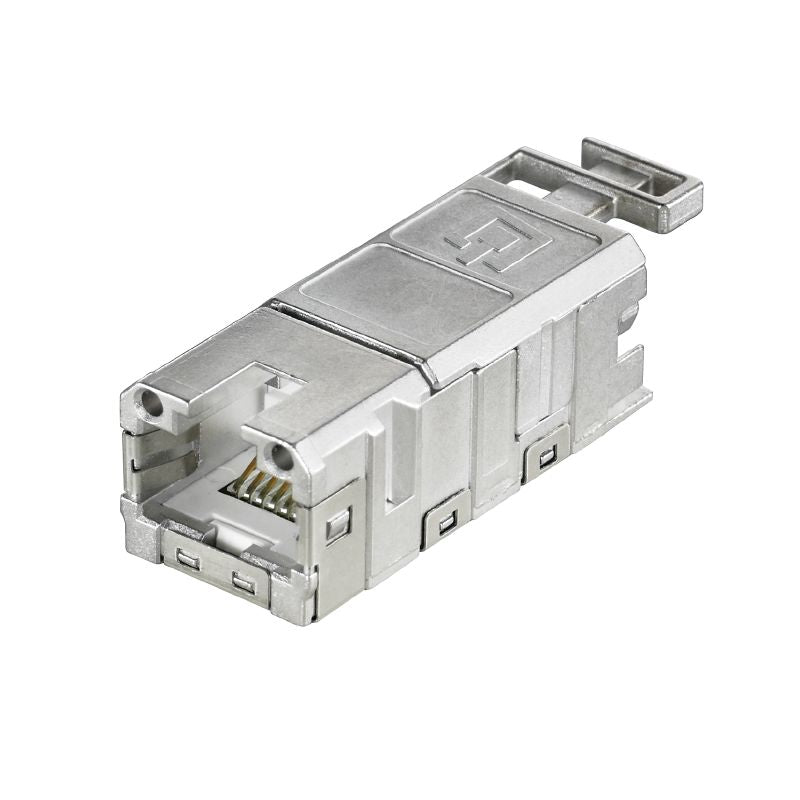

1963840000 - Durable RJ45 Socket for Base Connection, TIA-568B Compliant (Pack of 10)

1963840000 - Durable RJ45 Socket for Base Connection, TIA-568B Compliant (Pack of 10)

SKU: 1963840000   Download PDF

Select a Variant:
  • 1963840000 - Durable RJ45 Socket for Base Connection, TIA-568B Compliant (Pack of 10)
Qty:
Now $163.52   Web pricing policy
BEFORE   $0.00 Now $163.52 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

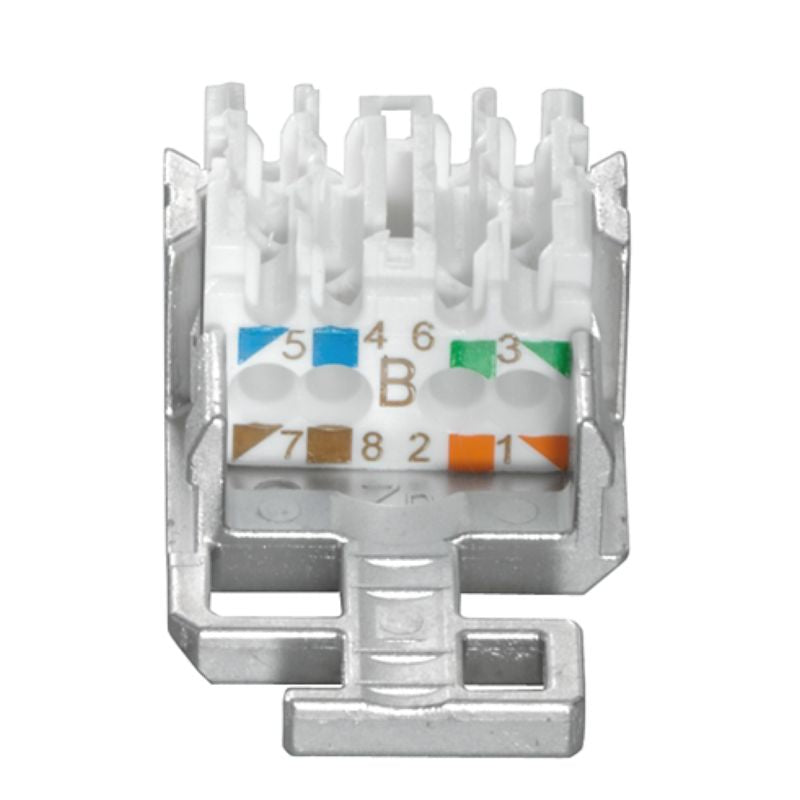

The RJ45 insert socket is engineered for seamless base connections in accordance with the TIA-568B standards Fully compliant with RoHS regulations, this socket excludes any substances of very high concern (SVHC) at levels over 01 weight percent It operates reliably across a broad temperature spectrum of -40 °C to 70 °C and thrives in environments with humidity ranging from 0 to 93% Constructed from robust zinc diecast material, this housing guarantees exceptional durability and consistent performance in varying conditions.

Features and Benefits:

    •Suitable for RJ45 connections and IDC.

    •Housing made from durable zinc diecast.

    •Compliant with RoHS without exemption.

    •Capable of withstanding a variety of temperatures and humidity levels.

    •Used with RJ45 inserts for various connector types including HDC and junction boxes.

Specifications:

 Operating temperature -40 °C...70 °C
 Humidity 0...93 % rel. humidity
 Connection 1 RJ45
 Connection 2 IDC
 Insert type Insert data SteadyTec
 Insulation cross-section, min. 0.85 mm
 Insulation cross-section, max. 1.6 mm
 Category Cat.6A / Class EA (ISO/IEC 11801 2010)
 Contact material Spring steel, Ni 1.2 µm
 Contact surface Gold over Nickel, Au ≥ 0.8 µm
 Connection diameter, solid 0.4...0.64 mm
 Conductor connection cross-section, solid (AWG) AWG 24...AWG 22
 Connection diameter, flexible 0.48...0.76 mm
 Conductor connection cross-section, flexible (AWG) AWG 26...AWG 22
 Shielding 360° all-round enclosure
 Protection degree IP67 with housing
 Plugging cycles 750
 Ability to reconnect ≥ 10 cycles for AWG 23-26, ≥ 4 cycles for AWG 22
 Contact resistance ≤ 20 mΩ
 Current-carrying capacity at 50 °C 1 A
 Dielectric strength, contact / contact ≥ 1000 V AC/DC
 Dielectric strength, contact / shield ≥ 1500 V AC/DC
 Insulation resistance 500 MΩ
 PoE / PoE+ conforming to IEEE 802.3bt
 Certificate no. (cULus) E316369
 Connector standard IEC 60603-7-51
 UL standard for communication accessories UL 1863
