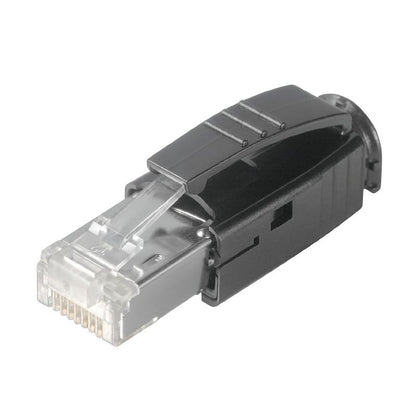

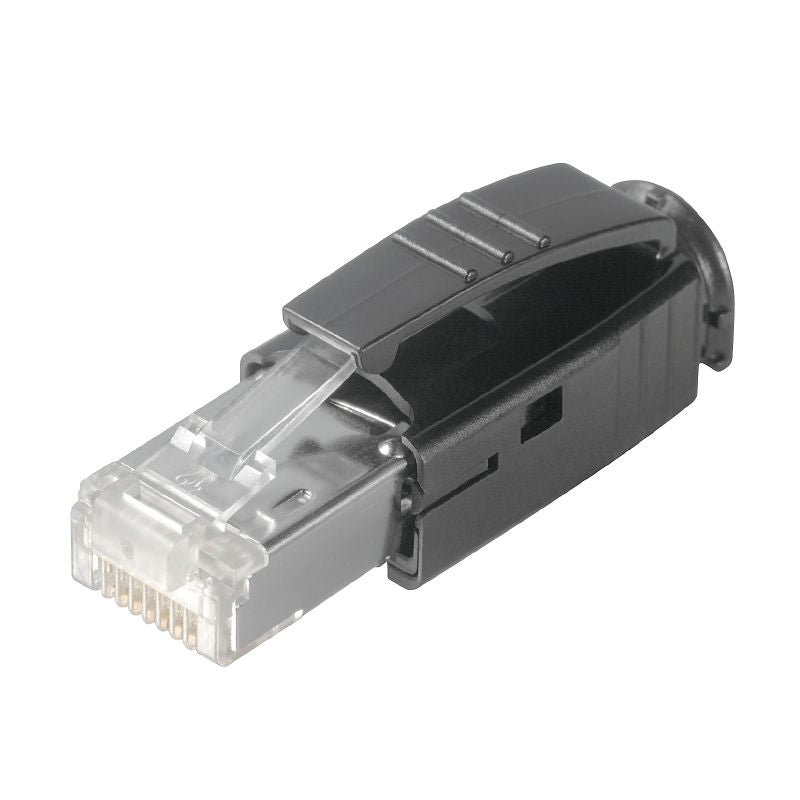

1963590000 - RJ45 Cat.6 Plug with Bending Protection Sleeve, Black (Pack of 10)

1963590000 - RJ45 Cat.6 Plug with Bending Protection Sleeve, Black (Pack of 10)

SKU: 1963590000   Download PDF

Select a Variant:
  • 1963590000 - RJ45 Cat.6 Plug with Bending Protection Sleeve, Black (Pack of 10)
Qty:
Now $36.80   Web pricing policy
BEFORE   $0.00 Now $36.80 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a sleek black RJ45 crimp plug, expertly crafted with a protective bending sleeve for enhanced durability This compliance with Class EA of ISO/IEC 11801 (2010) and RoHS regulations assures quality and safety Engineered for effortless connection, it features piercing contacts for secure and efficient shielded connections in one swift motion This versatile plug is compatible with a variety of ports and includes retro-fit kink prevention sleeves to protect against damage.

Perfect for seamless networking solutions.

Features and Benefits:

    •Connects piercing contacts and shielded connections in one step.

    •Retro-fit for kink-prevention sleeves.

    •Multi-port compatible.

    •Bending protection sleeve made of high-quality polycarbonate.

    •Gold-plated contact surface.

    •Flexible and solid conductor connection compatibility.

Specifications:

 Operating temperature -40 °C...70 °C
 Connection 1 RJ45
 Connection 2 Crimp
 Insulation cross-section, min. 0.85 mm
 Insulation cross-section, max. 1.05 mm
 Cable pull-out force, min. 89 N
 Category Cat.6 A / Class E A (ISO/IEC 11801 2010)
 Contact material Phosphorus bronze
 Contact surface Gold-plated
 Connection diameter, solid 0.36...0.51 mm
 Conductor connection cross-section, solid (AWG) AWG 27...AWG 24
 Connection diameter, flexible 0.46...0.61 mm
 Conductor connection cross-section, flexible (AWG) AWG 27...AWG 24
 MICE classification M M1
 MICE classification I I1
 MICE classification C C1
 MICE classification E E3
 Sheath diameter, min. 5 mm
 Sheath diameter, max. 7.3 mm
 Shielding material 0.5 mm brass, 2 µm nickel
 Shielding 360° all-round enclosure
 Protection degree IP20
 Plugging cycles 750
 Material insulator Polycarbonate PC, UL 94 V-0
 Contact resistance ≤ 20 mΩ
 Current-carrying capacity at 50 °C 1 A
 Dielectric strength, contact / contact ≥ 1000 V AC/DC
 Dielectric strength, contact / shield ≥ 1500 V AC/DC
 Insulation resistance 500 MΩ
 PoE / PoE+ conforming to IEEE 802.3af
 Connector standard IEC 60603-7-51
