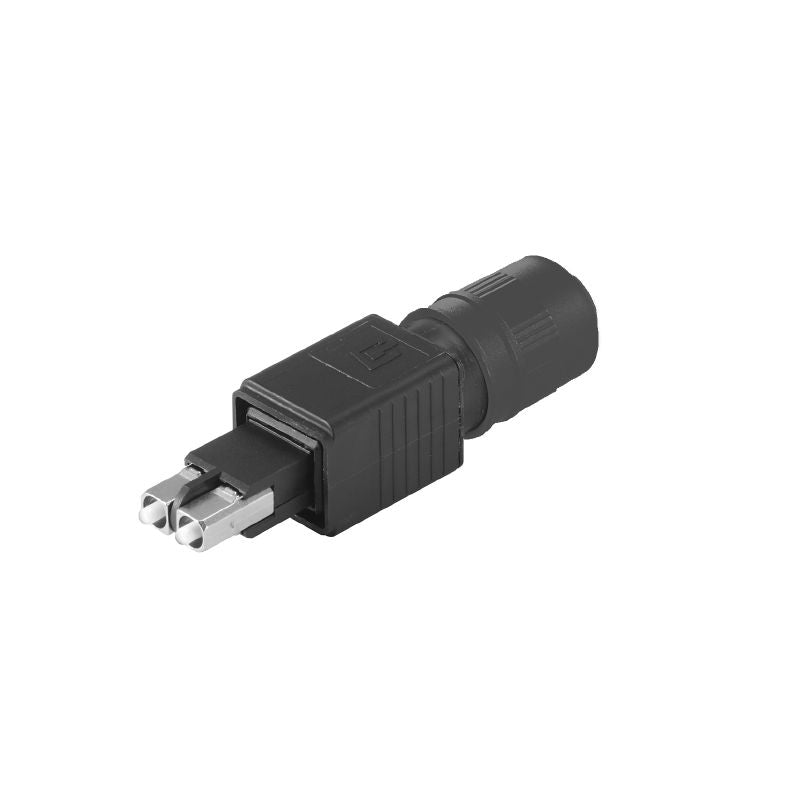

1963400000 - SC-Duplex FO Connector Variant 4, IP67 Compliance (Pack of 10)

1963400000 - SC-Duplex FO Connector Variant 4, IP67 Compliance (Pack of 10)

SKU: 1963400000   Download PDF

Select a Variant:
  • 1963400000 - SC-Duplex FO Connector Variant 4, IP67 Compliance (Pack of 10)
Qty:
Now $518.65   Web pricing policy
BEFORE   $0.00 Now $518.65 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the IE-PS-V04P-2SC-SM, a top-tier FO connector engineered in a SC-Duplex arrangement, utilizing single-mode fiber technology This product adheres to IP67 standards for water and dust resistance, ensuring reliable performance in various environments Additionally, it meets RoHS directives, making it an environmentally friendly choice Please note that this item is set for discontinuation after April 8, 2025, so be sure to secure yours while stocks last.

Features and Benefits:

    •Compliant with RoHS standards without exemptions.

    •Insertions capable for 500 plugging cycles.

    •Protection degree rated at IP67.

    •Available both in single-mode and multimode types.

Specifications:

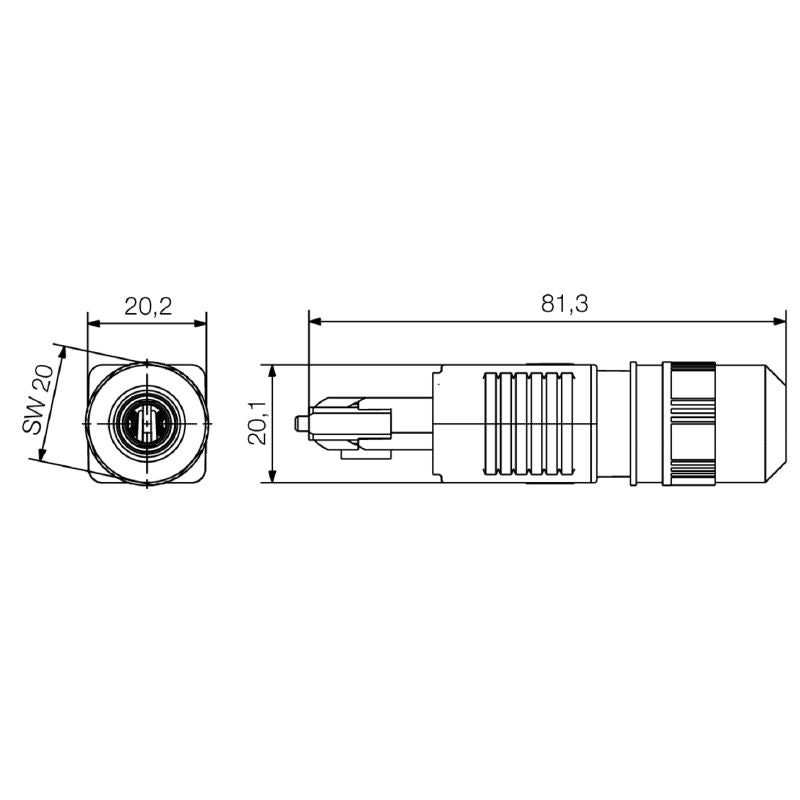

 Depth 81.3 mm
 Height 20.1 mm
 Width 20.2 mm
 Insertion loss 0.5 dB singlemode; 0.4 dB multimode; 1.5 dB POF
 Return loss 40 dB singlemode; 30 dB multimode
 Sheath diameter, max 10 mm
 Sheath diameter, min 5 mm
 Fibre type Singlemode
 Connection 1 SCRJ
 Connection 2 gluing, crimping, polishing
 ETIM 6.0 EC001122
 ECLASS 12.0 19-17-01-22
