1963390000 - IP67 Version 4 SC-RJ POF Connector, Kink Prevention (Pack of 10)

1963390000 - IP67 Version 4 SC-RJ POF Connector, Kink Prevention (Pack of 10)

SKU: 1963390000 Download PDF

Variant:
  • 1963390000 - IP67 Version 4 SC-RJ POF Connector, Kink Prevention (Pack of 10)
Now $494.89
BEFORE   $0.00 Now $494.89
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

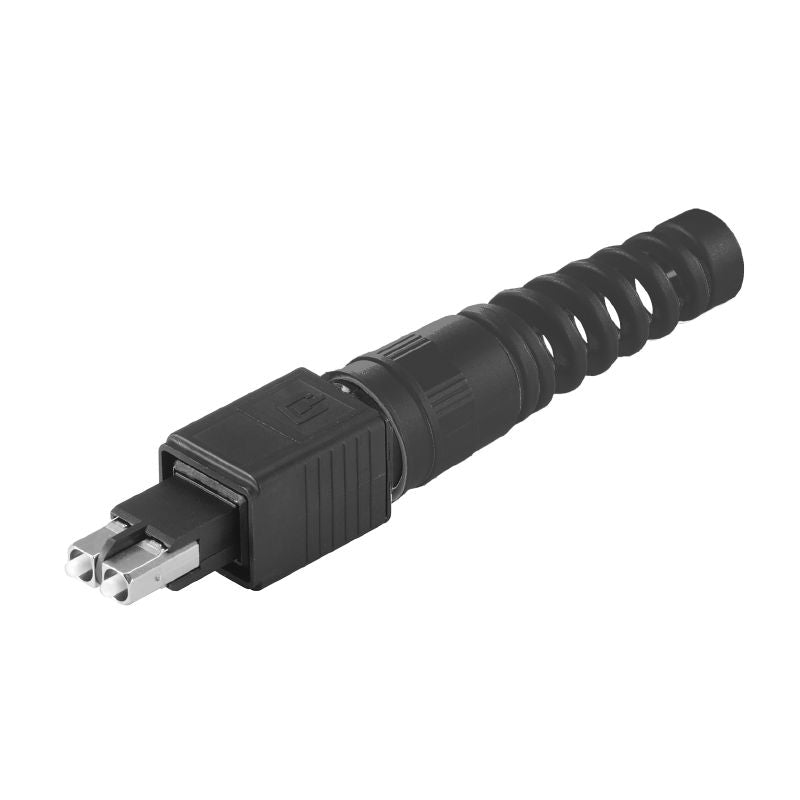

This product is equipped with a Version 4 FO connector alongside an SC-RJ POF, expertly crafted to prevent kinks for enhanced durability It boasts an IP67 rating for robust protection against dust and water, ensuring reliable performance in various conditions Adhering to RoHS standards, this item simplifies connection through an efficient crimping and cutting system, making it a practical choice for your connectivity needs.

Features and Benefits:

    •Compliant with RoHS exemption 6c.

    •Operating temperature range of -40 °C to 70 °C.

    •Plugging cycles allow up to 500.

    •Insertion loss rates of 0.5 dB for singlemode and 0.4 dB for multimode.

    •Return loss of 40 dB singlemode and 30 dB multimode.

    •Housing materials include PA UL 94 V0 and zinc diecast.

Specifications:

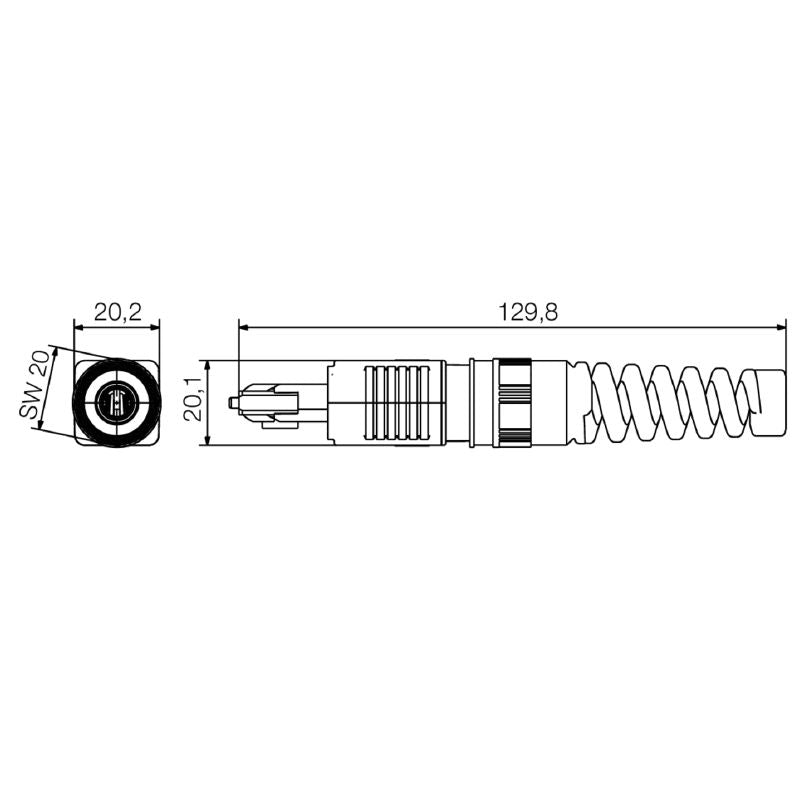

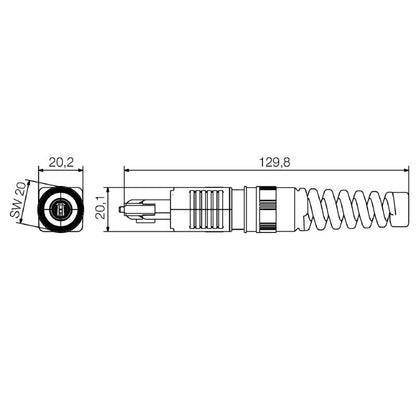

 Depth 129.8 mm
 Height 20.1 mm
 Width 20.2 mm
 Sheath diameter, max. 10 mm
 Sheath diameter, min. 5 mm
 Connector standard IEC 61076-3-106 Var. 4, IEC 61754-24
 Fibre type POF
 Protection degree IP67
 Insertion loss ≤ 1.0 dB POF
 Return loss (attenuation) 40 dB singlemode; 30 dB multimode
 Classifications {'ETIM 6.0': 'EC001122', 'ETIM 7.0': 'EC001122', 'ETIM 8.0': 'EC001122', 'ETIM 9.0': 'EC001122', 'ETIM 10.0': 'EC001122', 'ECLASS 9.0': '19-17-01-22', 'ECLASS 10.0': '19-17-01-22', 'ECLASS 11.0': '19-17-01-22', 'ECLASS 12.0': '19-17-01-22', 'ECLASS 13.0': '19-17-01-22', 'ECLASS 14.0': '19-17-01-22', 'ECLASS 15.0': '19-17-01-22'}
