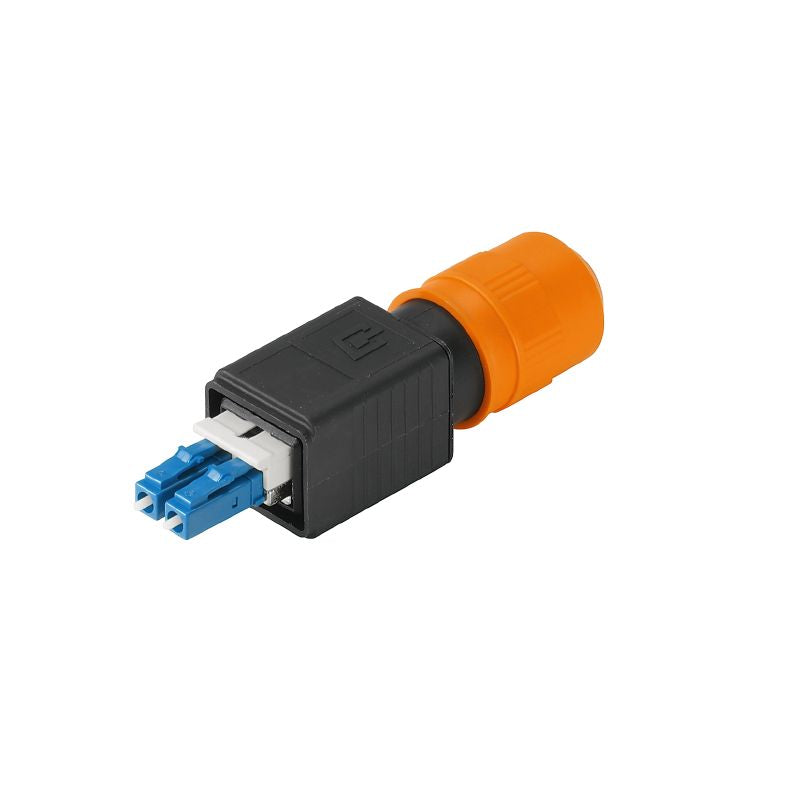

1963340000 - Durable IP67 LC-Duplex Single-Mode FO Connector, Variant 4 (Pack of 10)

SKU: SKU: 1963340000 Download PDF

Select a Variant:

1963340000 - Durable IP67 LC-Duplex Single-Mode FO Connector, Variant 4 (Pack of 10)

SET THE QTY:

Now $499.20 Web pricing policy

~~BEFORE $0.00~~ Now $499.20 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience reliable connectivity with this FO connector, identified as Variant 4, specifically engineered for LC-Duplex single-mode applications Boasting an impressive IP67 rating, this connector is designed to withstand harsh environments It utilizes single-mode fiber for optimal data transmission efficiency and meets RoHS regulations with confirmed exemption Constructed from resilient PA UL 94 V0 and PBT materials, this connector promises long-lasting durability for your networking needs.

Features and Benefits:

•Complies with RoHS and REACH regulations.

•Durable materials provide high reliability.

•IP67 rating offers excellent protection against dust and water.

•Designed for single-mode applications.

Specifications:

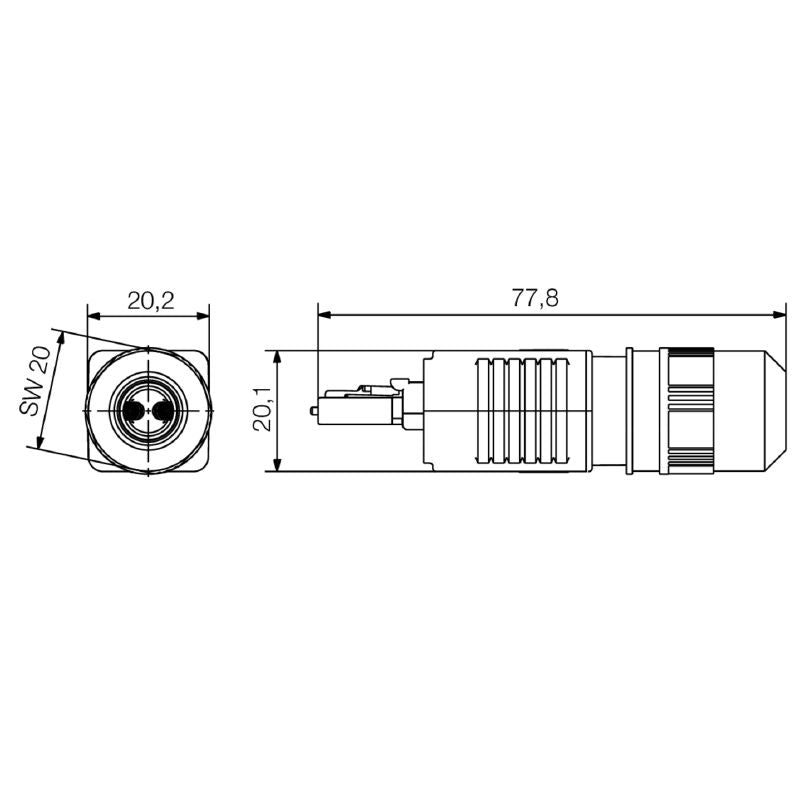

Depth	77.8 mm
Height	20.1 mm
Width	20.2 mm
Operating temperature	-40 °C to 70 °C
Insertion loss	0.5 dB singlemode, 0.4 dB multimode
Plugging cycles	500
Protection degree	IP67
Return loss (attenuation)	40 dB singlemode; 30 dB multimode
Sheath diameter (max)	10 mm
Sheath diameter (min)	5 mm
Connector standard	IEC 61076-3-106 Var. 4, IEC 61754-20
RoHS Compliance Status	Compliant with exemption
RoHS Exemption	6c
Fibre type	Singlemode
Connection 1	LC
Connection 2	gluing, crimping, polishing
