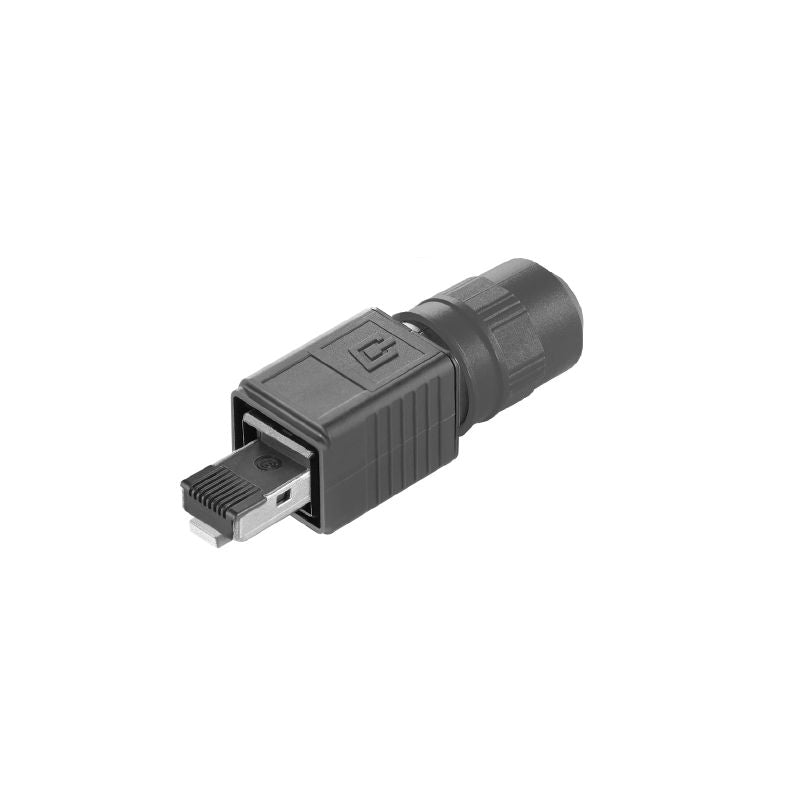

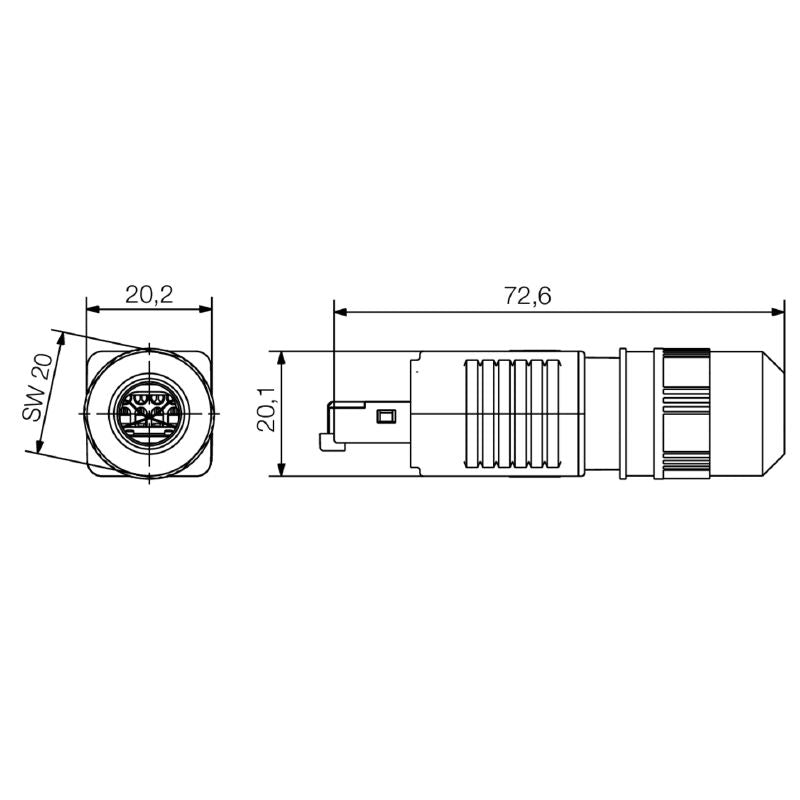

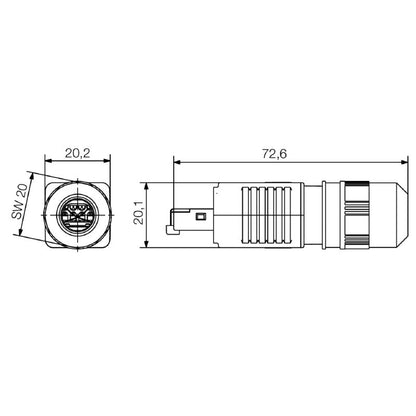

1963160000 - Tool-Free Version 4 RJ45 Plug, Cat.6A Networking Solution (Pack of 10)

1963160000 - Tool-Free Version 4 RJ45 Plug, Cat.6A Networking Solution (Pack of 10)

SKU: 1963160000   Download PDF

Select a Variant:
  • 1963160000 - Tool-Free Version 4 RJ45 Plug, Cat.6A Networking Solution (Pack of 10)
Qty:
Now $337.88   Web pricing policy
BEFORE   $0.00 Now $337.88 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience hassle-free networking with this tool-free RJ45 plug, designed in compliance with Version 4 standards for Cat6A / Class EA based on ISO/IEC 11801 2010 This connector meets RoHS requirements and is free from any REACH substances of high concern in amounts exceeding 01 wt% With provisions for both RJ45 and IDC connections, it adheres to EIA/TIA wiring standards for types A and B Engineered for superior performance, this component is perfect for high-speed network applications.

Features and Benefits:

    •No tools required for installation.

    •Compliant with RoHS and free of REACH SVHC.

    •Gold over nickel contact surface for enhanced performance.

    •IP67 protection degree providing dust and water resistance.

    •Able to withstand 750 plugging cycles.

    •Reconnection capability of ≥ 10 cycles with the same or larger cross-section.

    •Suitable for PROFINET installations.

Specifications:

 Operating temperature -40 °C to 70 °C
 Connection 1 RJ45
 Connection 2 IDC
 Insulation cross-section, min. 0.85 mm
 Insulation cross-section, max. 1.6 mm
 Category Cat.6A / Class EA (ISO/IEC 11801 2010)
 Connection diameter, solid 0.4 to 0.64 mm
 Conductor connection cross-section, solid (AWG) AWG 24 to AWG 22
 Connection diameter, flexible 0.48 to 0.76 mm
 Conductor connection cross-section, flexible (AWG) AWG 26 to AWG 22
 MICE classification M M3
 MICE classification I I3
 MICE classification C C1
 MICE classification E E3
 Sheath diameter, min. 5 mm
 Sheath diameter, max. 10 mm
 Shielding 360° all-round enclosure
 Dielectric strength, contact / contact ≥ 1000 V AC/DC
 Dielectric strength, contact / shield ≥ 1500 V AC/DC
 Connector standard IEC 61076-3-106 Var. 4, IEC 60603-7-51
