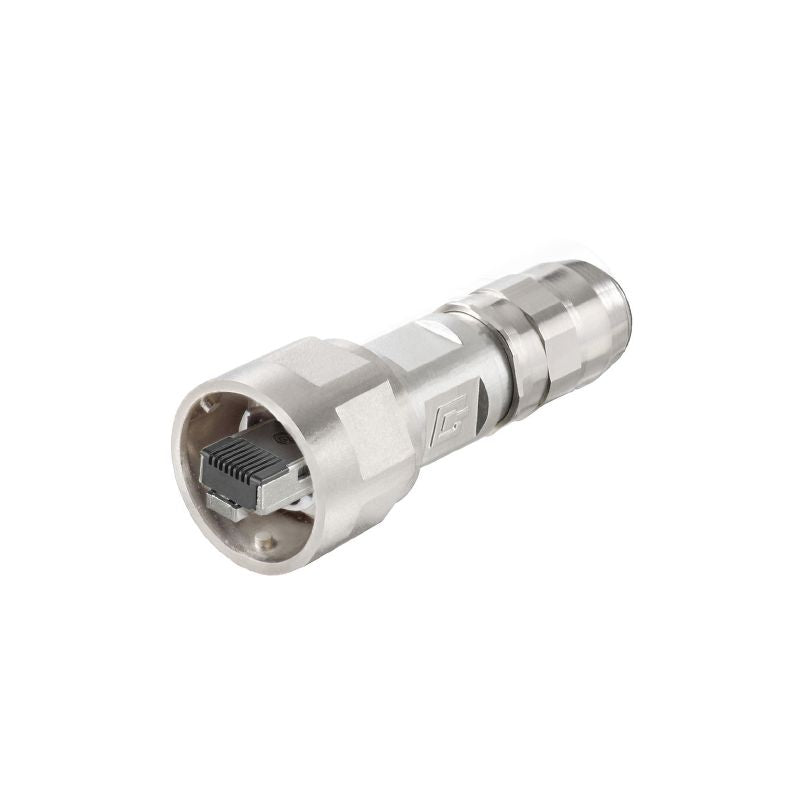

1963140000 - Metal RJ45 Crimp Plug, Cat.6A, IP67, Variant 1

1963140000 - Metal RJ45 Crimp Plug, Cat.6A, IP67, Variant 1

SKU: 1963140000   Download PDF

Select a Variant:
  • 1963140000 - Metal RJ45 Crimp Plug, Cat.6A, IP67, Variant 1
Qty:
Now $49.05   Web pricing policy
BEFORE   $0.00 Now $49.05 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the Variant 1 RJ45 crimp plug, crafted from durable metal and engineered specifically for Cat6A / Class EA in accordance with ISO/IEC 11801 2010 standards Certified with cULus number E316369, this connector boasts a robust zinc diecast housing It is versatile, accommodating solid conductor sizes ranging from AWG 26/1 to AWG 24/1, as well as flexible conductor sizes from AWG 27/7 to AWG 24/7, making it adaptable to different connection requirements.

The insulation cross-section supports sizes between 085 mm and 105 mm Designed for longevity, this connector features an IP67 protection rating and is capable of withstanding up to 750 plugging cycles, ensuring reliability in various conditions.

Features and Benefits:

    •IP67 protection degree.

    •360° all-round enclosure shielding.

    •Gold over nickel contact surface.

    •Designed for harsh environmental conditions.

    •Suitability for a wide range of applications in data communication.

Specifications:

 Operating temperature -40 °C to 70 °C
 Connection 1 RJ45
 Connection 2 Crimp
 Insulation cross-section, min. 0.85 mm
 Insulation cross-section, max. 1.05 mm
 Category Cat.6A / Class EA (ISO/IEC 11801 2010)
 Connection diameter, solid 0.36 to 0.51 mm
 Conductor connection cross-section, solid (AWG) AWG 26/1 to AWG 24/1
 Connection diameter, flexible 0.46 to 0.61 mm
 Conductor connection cross-section, flexible (AWG) AWG 27/7 to AWG 24/7
 MICE classification M M3
 MICE classification I I3
 MICE classification C C1
 MICE classification E E3
 Sheath diameter, min. 5 mm
 Sheath diameter, max. 10 mm
 Plugging cycles 750
 Dielectric strength, contact / contact ≥ 1000 V AC/DC
 Dielectric strength, contact / shield ≥ 1500 V AC/DC
 Connector standard IEC 61076-3-106 Var. 1, IEC 60603-7-51
 Certificate no. (cULus) E316369
