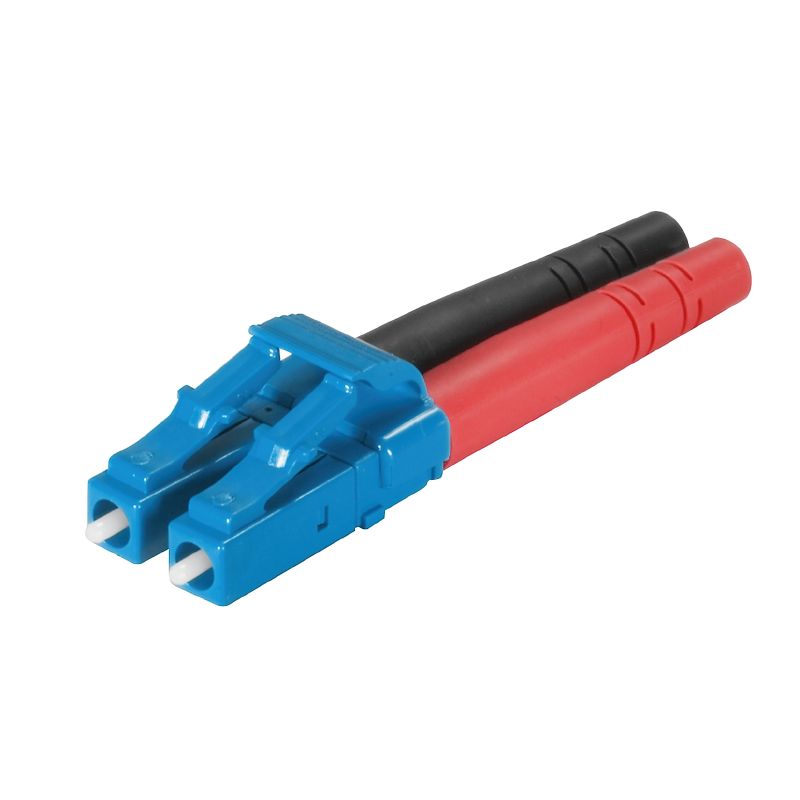

1962980000 - Singlemode LC Duplex Plug with TPE Bend Protection

Description:

Introducing the LC duplex plug, crafted specifically for singlemode applications This reliable component adheres to ROHS standards and operates efficiently in temperatures ranging from -40 °C to 70 °C Identified by the order number 1962980000, it weighs a mere 05 grams Designed for strength, the bending protection sleeve is constructed from durable TPE, providing additional longevity With a minimum cable pull-out force of 100 N, this connector is built to handle up to 1000 plugging cycles.

It features a dust protection cap also made from TPE, ensuring cleanliness and performance The housing is primarily made of PC UL 94 V0 material, reinforced with a zinc diecast insert for added durability Performance-wise, this plug showcases an insertion loss of ≤ 05 dB and a return loss of ≥ 40 dB Conforming to the IEC 61754-20 connector standard, it is categorized under several ETIM and ECLASS classifications, making it a versatile choice for various networking applications.

Features and Benefits:

•Operating temperature range from -40 °C to 70 °C.

•Bending protection sleeve material made of TPE.

•Capacity for 1000 plugging cycles.

•Insertion loss rated at ≤ 0.5 dB.

•Return loss of ≥ 40 dB.

Specifications:
