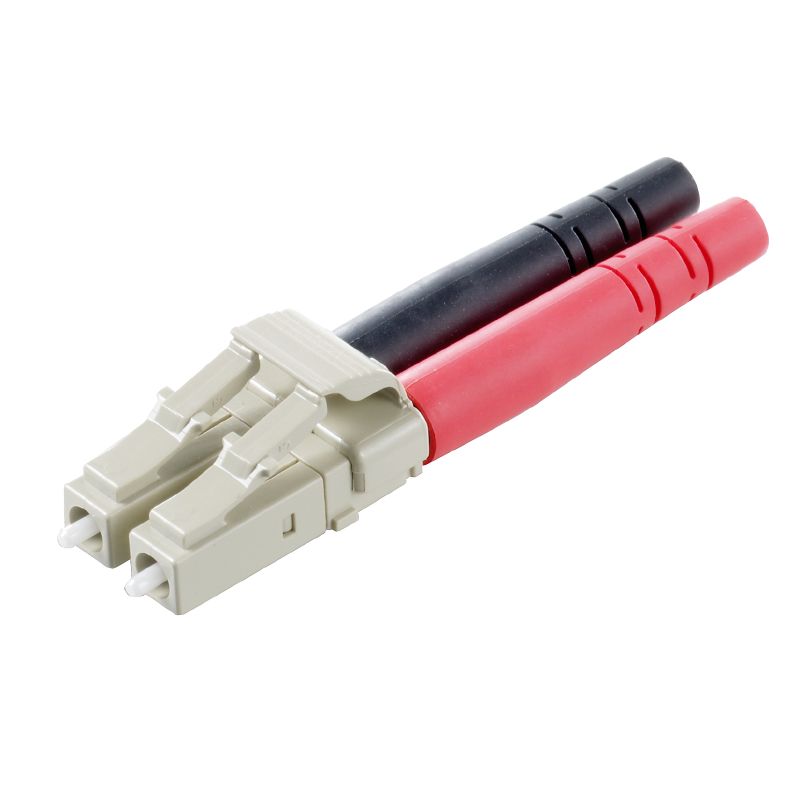

1962970000 - LC Duplex Multimode Plug with IP20 and TPE Protection

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile LC duplex plug tailored for multimode applications, this product is built to meet RoHS compliance and features an IP20 rating for enhanced protection Weighing in at just 422 grams, it operates efficiently across a wide temperature range of -40 °C to 70 °C, while managing humidity levels from 0% up to 93% Crafted with a TPE bending protection sleeve and a dust cap, this plug showcases durability along with optimal performance.

The crimp barrel is made from nickel-plated copper, and the ferrule is crafted from high-quality zirconia With sheath diameters ranging from a minimum of 28 mm to a maximum of 3 mm, it accommodates single conductor diameters between 06 mm and 14 mm This connector adheres to IEC 61754-20 standards, featuring a low insertion loss of ≤ 04 dB and a robust return loss of ≥ 30 dB Designed for longevity, it can endure up to 1000 plugging cycles and offers a solid minimum cable pull-out strength of 100 N, making it a reliable choice for your connection needs.

Features and Benefits:

•Conforms to RoHS compliance.

•Capability to operate in temperatures from -40 °C to 70 °C.

•Supports a range of humidity from 0% to 93% relative humidity.

•Made with materials including TPE for durability and rust-proof stainless steel for the pressure spring.

Specifications:
