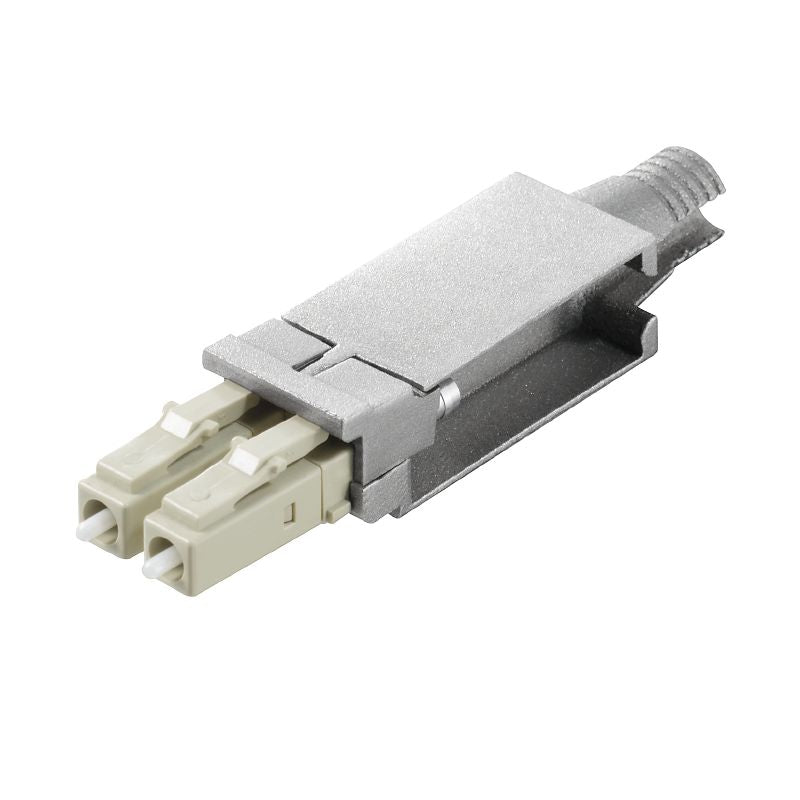

1962790000 - Dual LC Singlemode Plug Insert - RoHS Compliant (Pack of 10)

1962790000 - Dual LC Singlemode Plug Insert - RoHS Compliant (Pack of 10)

SKU: SKU: 1962790000 Download PDF

Variant:
  • 1962790000 - Dual LC Singlemode Plug Insert - RoHS Compliant (Pack of 10)
Regular price Now $361.64
Regular price BEFORE   $0.00 Sale price Now $361.64
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a specialized plug insert for 2 LC singlemode connections, engineered to meet RoHS standards This product has an environmental compliance status that demonstrates adherence to particular exemptions Please note, while this item will be available for purchase until April 8, 2025, it will no longer be offered after this date Secure your order while supplies last!.

Features and Benefits:

    •Includes a crimp connection.

    •Zirconia ferrule material for enhanced performance.

    •Suitable for a range of housing types.

    •Able to handle a maximum insertion loss of ≤ 0.5 dB.

    •Rated for 1000 plugging cycles.

    •Protection degree of IP67 when housed.

Specifications:

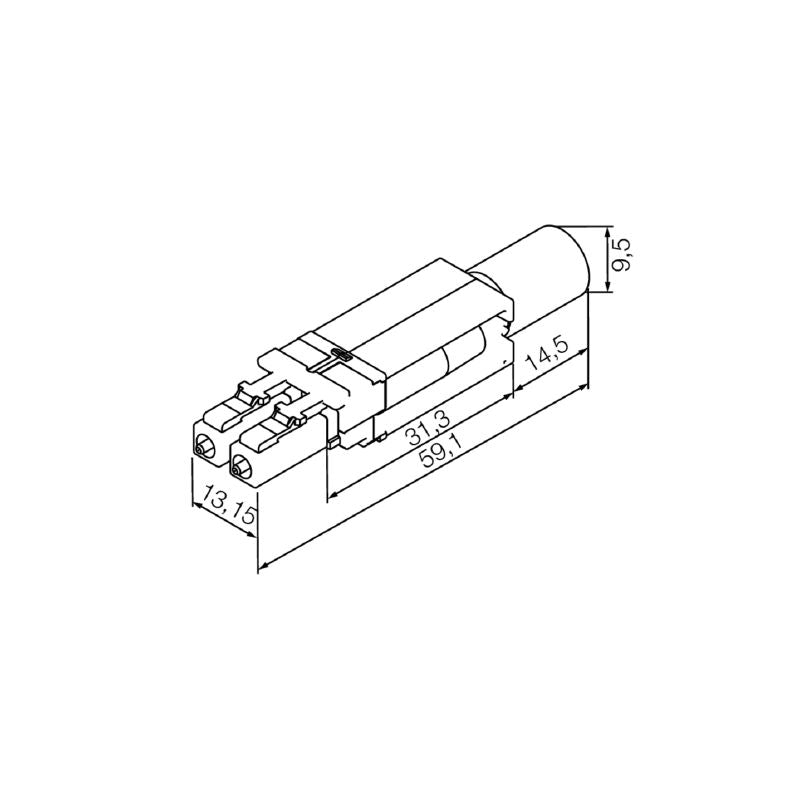

 Depth 59 mm
 Height 10.3 mm
 Width 13.15 mm
 Operating temperature -40 °C...70 °C
 Humidity 0...85 % rel. humidity
 Connector standard IEC 61754-20
 Fibre type Singlemode
 Housing main material PBT diecast zinc
 Return loss (attenuation) ≥ 40 dB
 Protection degree IP67 with housing
 RoHS Compliance Status Compliant with exemption
 RoHS Exemption 6c
 SCIP 4f3aae94-c2bc-4010-b63b-5b114ba6bd55
