1962780000 - Multimode LC Plug Insert with Zirconia Ferrule (Pack of 10)

1962780000 - Multimode LC Plug Insert with Zirconia Ferrule (Pack of 10)

SKU: 1962780000   Download PDF

Select a Variant:
  • 1962780000 - Multimode LC Plug Insert with Zirconia Ferrule (Pack of 10)
Qty:
Now $328.06   Web pricing policy
BEFORE   $0.00 Now $328.06 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

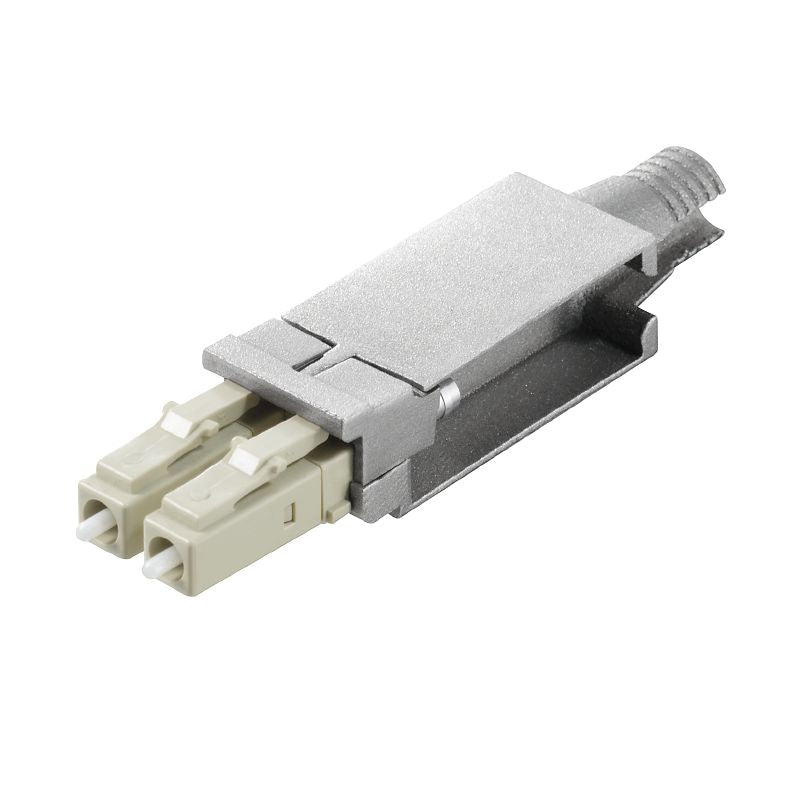

Introducing the Plug Insert 2 LC, specifically engineered for multimode applications with an easy-to-use LC connection interface This insert boasts a durable construction featuring a zirconia ferrule housed in PBT diecast zinc material Compliant with RoHS regulations, it can operate effectively in temperatures ranging from -40 °C to 70 °C It offers impressive performance with an insertion loss of ≤ 0.

4 dB and a return loss of ≥ 30 dB Additionally, it is built to withstand up to 1000 plugging cycles, making it a reliable choice for your connectivity needs.

Features and Benefits:

    •IP67 protection degree.

    •Compliant with RoHS with exemption.

    •Suitable for environments with 0 to 85% relative humidity.

Specifications:

 Operating temperature: -40 °C to 70 °C

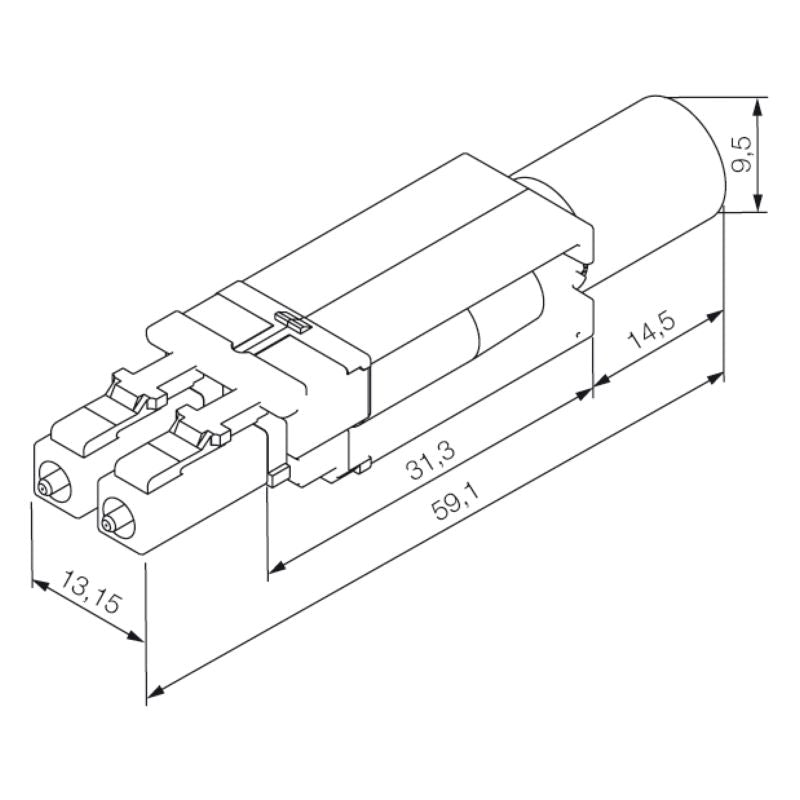

 Depth: 59 mm
 Height: 10.3 mm
 Width: 13.15 mm
 Net weight: 15 g
 Humidity: 0 to 85% relative humidity
 Insertion loss: ≤ 0.4 dB
 Plugging cycles: 1000
 Return loss (attenuation): ≥ 30 dB
 Connector standard: IEC 61754-20
 Fibre type: Multimode
 Ferrule material: Zirconia
 Connection 1: LC
 Connection 2: Crimp
 Colour: Miscellaneous
 Composition: Connector and flange insert for variant 1, 4 and 14 housings
