1556290000 - High-Performance VGA Coupling Insert for Socket Applications

1556290000 - High-Performance VGA Coupling Insert for Socket Applications

SKU: 1556290000   Download PDF

Select a Variant:
  • 1556290000 - High-Performance VGA Coupling Insert for Socket Applications
Qty:
Now $8.01   Web pricing policy
BEFORE   $0.00 Now $8.01 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

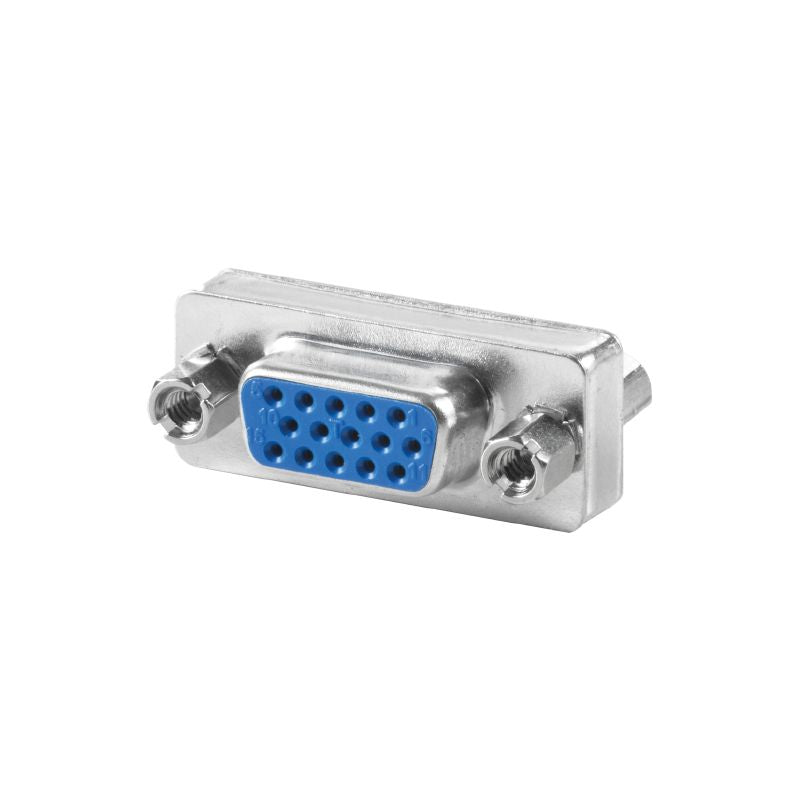

Introducing the IE-FCI-HD15-FF, a specialized VGA coupling signal insert crafted for seamless socket-to-socket connections This product adheres to RoHS standards and is certified under the UL file number E497345 Weighing just 9 grams, it is compact and designed to function optimally in extreme temperatures ranging from -55 °C to 105 °C Additionally, it boasts an impressive dielectric strength of 1000 V for one minute and features an insulation resistance of 1000 MΩ at 500 V DC.

With an IP20 protection rating, this coupling insert ensures reliable performance in various applications.

Features and Benefits:

    •RoHS compliant with exemptions.

    •Dielectric strength of 1000 V effective for one minute.

    •Insulation resistance of 1000 MΩ at 500 V DC.

    •Protection degree of IP20.

Specifications:

 Operating temperature -55 °C...105 °C
 Product type VGA coupling
 Insert type Signal insert VGA/HD15
 Electrical properties Dielectric strength, contact / contact: 1000 V eff / 1 min; Insulation resistance: 1000 MΩ at 500 V DC
 Approval certificate number (DNV) TAA000022B
 UL Certificate No. E497345
 ETIM Classification EC001121
 ECLASS 9.0 27-44-03-90
 ECLASS 9.1 27-18-90-90
