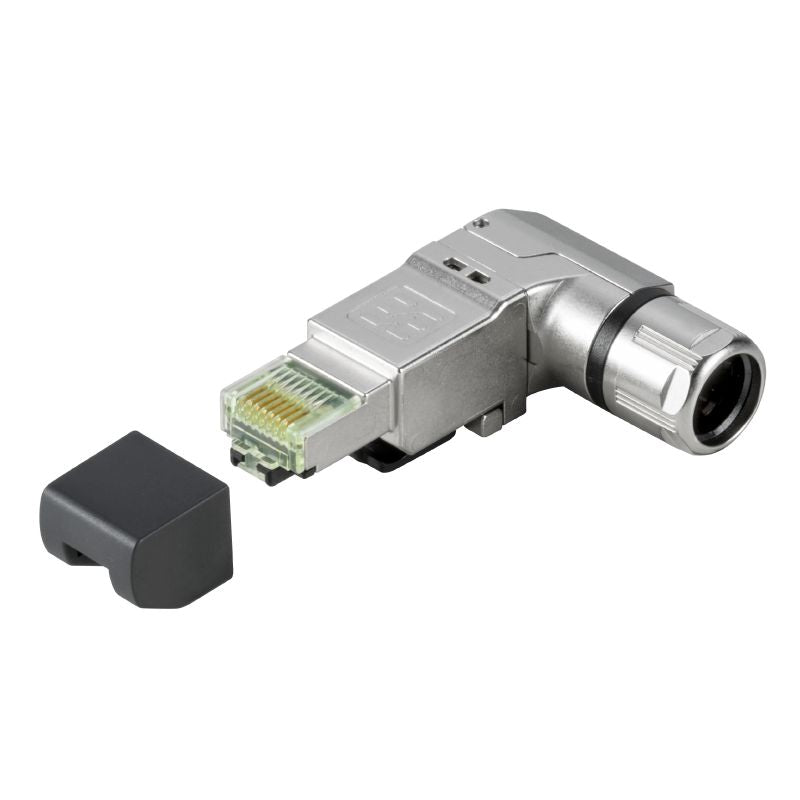

1518090000 - Angled RJ45 Plug for Cat.6A with Piercing Contacts

1518090000 - Angled RJ45 Plug for Cat.6A with Piercing Contacts

SKU: 1518090000 Download PDF

Variant:
  • 1518090000 - Angled RJ45 Plug for Cat.6A with Piercing Contacts
Now $22.63
BEFORE   $0.00 Now $22.63
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our expertly crafted RJ45 plug, engineered with piercing contacts and an angled orientation for optimal performance in Cat6A/Class EA environments This plug meets international standards, including ISO/IEC 11801:2010 and EIA/TIA T568 B, and showcases its quality with the UL certificate number E471884 Fully compliant with RoHS regulations, it comes free from any exemptions Designed to accommodate RJ45 connection types, it supports varying insulation cross-sections of 0.

85 mm to 11 mm, ensuring secure and efficient connectivity for your networking needs.

Features and Benefits:

    •Angled outlet direction for easy installation.

    •Suitable for a wide range of cable connections with a strong performance.

    •Includes 360-degree all-round enclosure shielding for better protection.

    •Robust plugging cycles capability of 750 cycles.

    •Ability to reconnect up to 4 times with the same cross-section.

Specifications:

 Operating temperature: -40 °C to 85 °C
 Main material of housing: Zinc diecast, nickel-plated
 Contact surface: Gold over nickel
 Conductor connection cross-section, solid (AWG): AWG 26 to AWG 24
 Conductor connection cross-section, flexible (AWG): AWG 27 to AWG 24
 Connection diameter, solid: 0.41 to 0.51 mm
 Connection diameter, flexible: 0.46 to 0.61 mm
 Sheath diameter (min): 5 mm
 Sheath diameter (max): 9 mm
 Protection degree: IP20
 Current-carrying capacity at 50 °C: 1 A
 Contact resistance: ≤ 20 mΩ
 Dielectric strength (contact/contact): ≥ 1000 V AC/DC
 Dielectric strength (contact/shield): ≥ 1500 V AC/DC
 Insulation resistance: ≥ 500 MΩ
 PoE/PoE+: Compliant with IEEE 802.3at
 ETIM standard: EC001121
 ECLASS standard: 27-44-03-90
