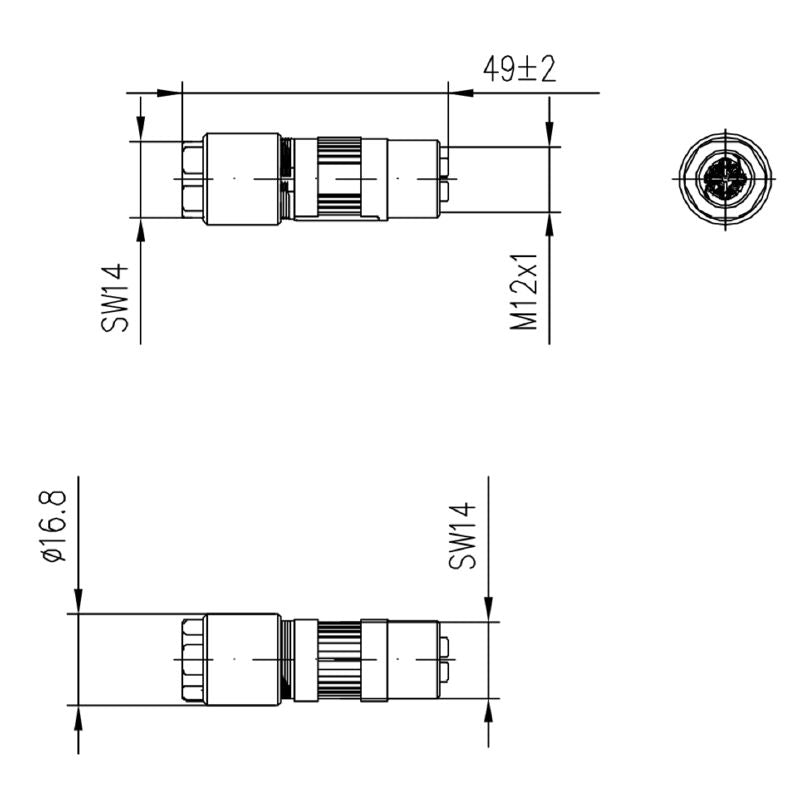

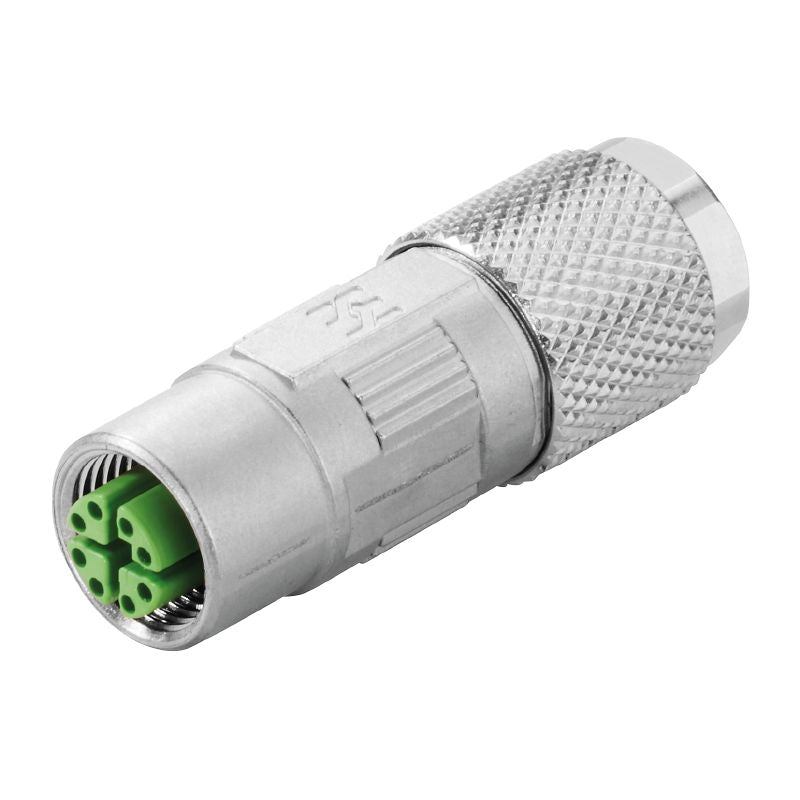

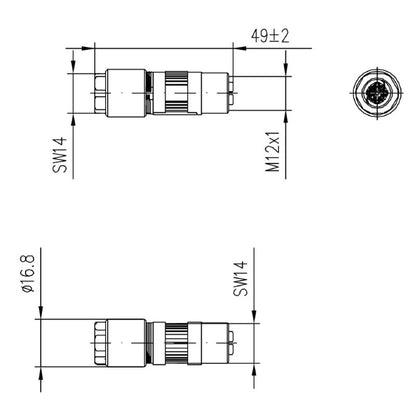

1516330000 - IP67 Rated M12 Socket, Cat.6A Compliant

1516330000 - IP67 Rated M12 Socket, Cat.6A Compliant

SKU: 1516330000   Download PDF

Select a Variant:
  • 1516330000 - IP67 Rated M12 Socket, Cat.6A Compliant
Qty:
Now $48.30   Web pricing policy
BEFORE   $0.00 Now $48.30 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

This custom-manufactured M12 socket is engineered to meet your specifications, conforming to Cat6A / Class EA standards as outlined by ISO/IEC 11801:2010 It boasts an impressive IP67 rating when connected, ensuring robust protection against dust and water Additionally, this product complies with RoHS regulations and is certified by cULus, bearing certificate number E316369.

Features and Benefits:

    •Compliant with RoHS exemption.

    •Female contact type.

    •Gold-plated contact surface.

    •Insulation resistance of 100 MΩ.

    •Able to withstand at least 100 plugging cycles.

    •360° all-round shielding.

    •Conforming to IEEE 802.3at for PoE/PoE+.

Specifications:

 Operating temperature -40 °C to 85 °C
 Category Cat.6A / Class EA (ISO/IEC 11801 2010)
 Coding X-coded
 Contact material Brass
 Gender of contact Female
 Housing main material Zinc diecast
 Nominal voltage 48 V
 Number of poles 8
 Protection degree IP67 plugged
 Insulation cross-section, max. 1.6 mm
 Wire connection diameter, solid, min. 0.4 mm
 Wire connection diameter, solid, max. 0.64 mm
 Wire connection diameter, flexible, min. 0.48 mm
 Wire connection diameter, flexible, max. 0.76 mm
 Sheath diameter, min. 5 mm
 Sheath diameter, max. 9.7 mm
 Insulation resistance 100 MΩ
