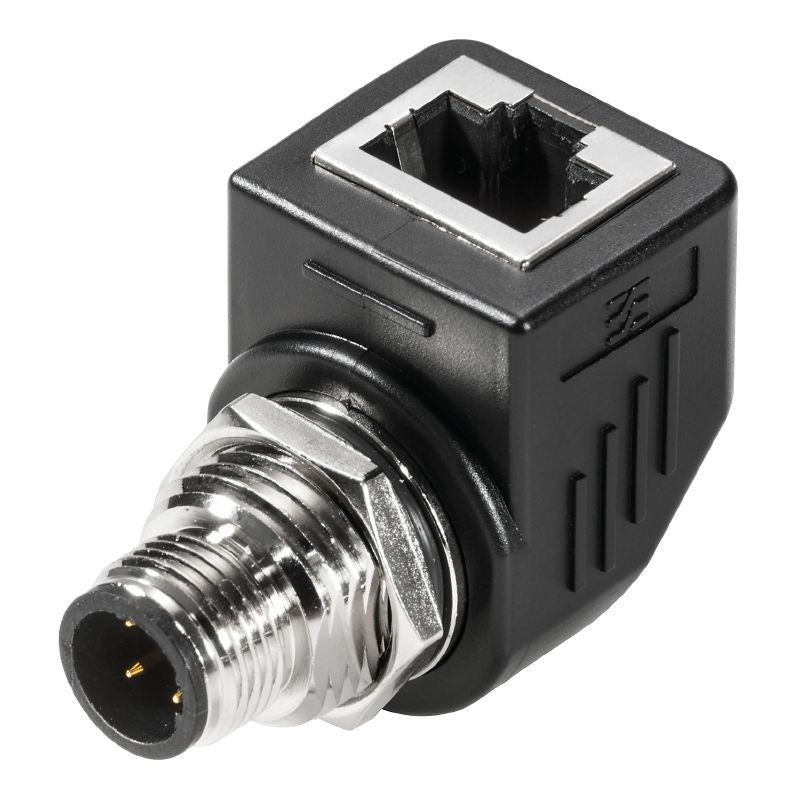

1514940000 - RJ45 90° Angled M12 Adapter, IP67 Rated, Cat.5 Compliant

1514940000 - RJ45 90° Angled M12 Adapter, IP67 Rated, Cat.5 Compliant

SKU: 1514940000   Download PDF

Select a Variant:
  • 1514940000 - RJ45 90° Angled M12 Adapter, IP67 Rated, Cat.5 Compliant
Qty:
Now $55.88   Web pricing policy
BEFORE   $0.00 Now $55.88 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a versatile angled adapter that connects through RJ45 90° and M12 interfaces, specifically engineered for Cat5 networks and adheres to ISO/IEC 11801 standards With an impressive IP67 protection rating, this adapter is built to withstand demanding environments It also meets RoHS compliance, and features a gold-plated contact surface to ensure superior conductivity and performance.

Features and Benefits:

    •M12 pin on RJ45 socket.

    •D-coded configuration.

    •Gold-plated contact surface.

    •Protection degree of IP67.

    •Designed for applications involving Cat.5 connections.

Specifications:

 Storage temperature -40 °C...80 °C
 Operating temperature -25 °C...80 °C
 Number of poles 4
 Current-carrying capacity at 50 °C 1 A
 Contact resistance ≤ 10 mΩ
 Connector standard IEC 60603-7-5, IEC 61076-2-101
 Housing main material PA 66
 Connection 1 RJ45 90°
 Connection 2 M12
 Shielding Yes
