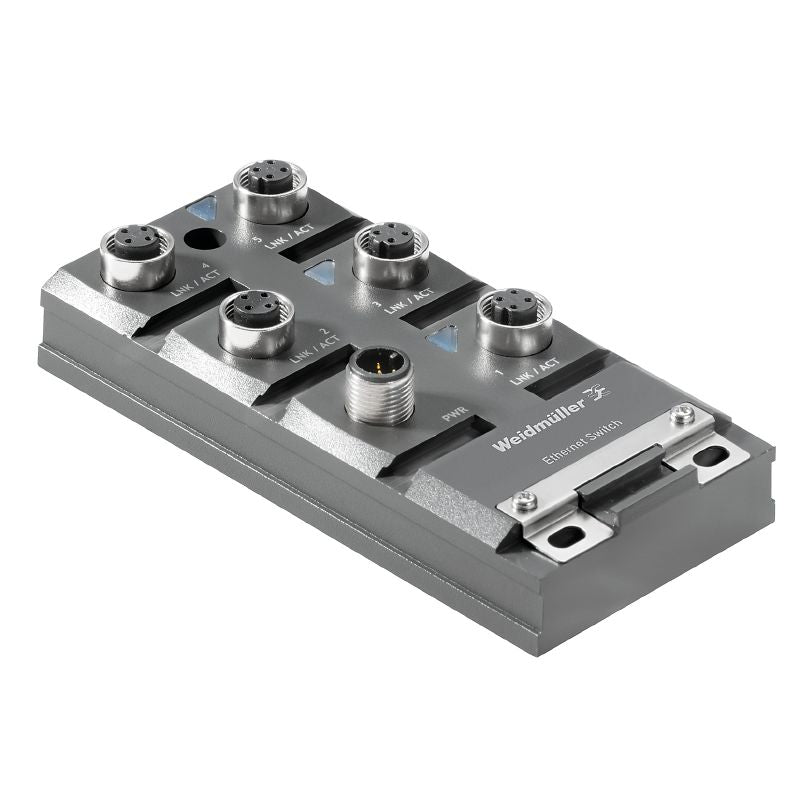

1504420000 - IP67 Unmanaged Network Switch with 5 M12 Ports
1504420000 - IP67 Unmanaged Network Switch with 5 M12 Ports
SKU: SKU: 1504420000 Download PDF
- 1504420000 - IP67 Unmanaged Network Switch with 5 M12 Ports
- 1504420000 - IP67 Unmanaged Network Switch with 5 M12 Ports
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the IE-SW-IP67T-5M12, a robust unmanaged network switch engineered for Fast Ethernet This device features five M12 D-coded ports and is built to withstand harsh conditions, operating effectively in temperatures ranging from -40 °C to 75 °C With an IP67 rating, it offers excellent protection against dust and water infiltration Additionally, it meets RoHS standards along with other essential certifications, ensuring its reliability and compliance for various applications.
Features and Benefits:
•Unmanaged network switch.
•Fast Ethernet support.
•IP67 encapsulated for protection against dust and water.
•Five M12 D-coded ports.
•Operating temperature ranges from -40 °C to 75 °C.
Specifications:
| Operating temperature (max) | -40 °C to 75 °C |
| Operating temperature (min) | -40 °C |
| Storage temperature (max) | 85 °C |
| Storage temperature (min) | -40 °C |
| Humidity | 5 to 95 % (non-condensing) |
| Current consumption | 0.12 A |
| Overload current protection | 1.1 A |
| Supply voltage | 24/36 V DC, 24 V AC |
| Voltage supply range (min) | 12 V |
| Voltage supply range (max) | 45 V |
| Bandwidth backplane | 1 Gbit/s |
| MAC table size | 2 K |
| Packet buffer size | 384 kBit |
| Housing main material | Plastic |
| Protection degree | IP67 |
| Mounting type | Wall mounting |
