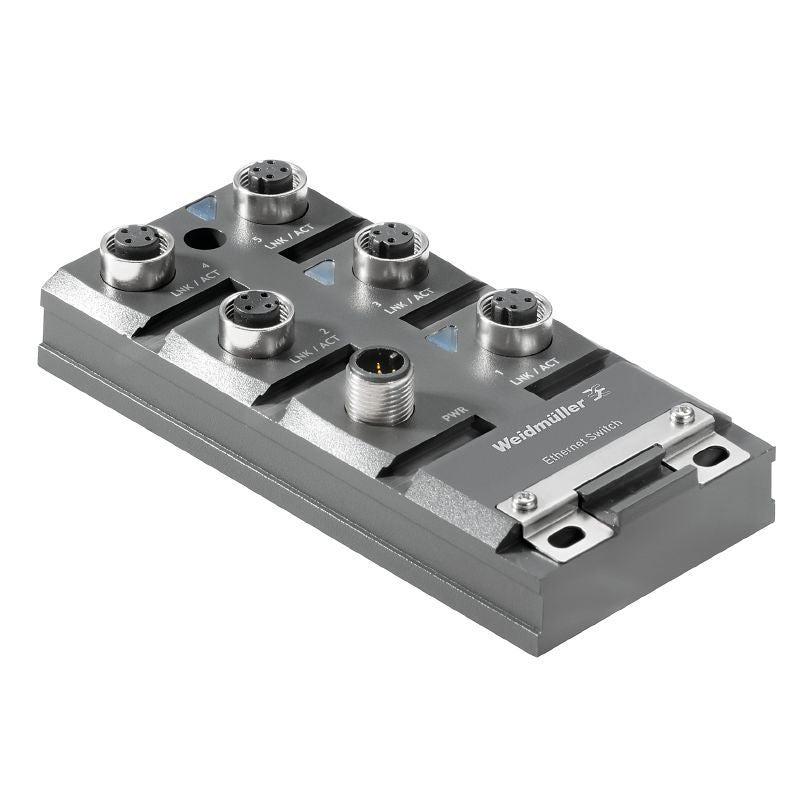

1504410000 - IP67 Rated 5-Port Unmanaged Ethernet Switch for Industrial Use
1504410000 - IP67 Rated 5-Port Unmanaged Ethernet Switch for Industrial Use
SKU: SKU: 1504410000 Download PDF
- 1504410000 - IP67 Rated 5-Port Unmanaged Ethernet Switch for Industrial Use
- 1504410000 - IP67 Rated 5-Port Unmanaged Ethernet Switch for Industrial Use
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience reliable connectivity with this unmanaged network switch, perfect for Fast Ethernet applications It comes equipped with 5 M12 D coded ports and boasts an IP67 rating, making it suitable for demanding environments Capable of functioning within temperature ranges of -25 °C to 60 °C, this switch is a durable choice for industrial settings, ensuring dependable performance when you need it most.
Features and Benefits:
•IP67 encapsulated.
•Unmanaged switch design.
•Suitable for temperatures between -25 °C and 60 °C.
•5 M12 D coded ports.
Specifications:
| Depth | 29.6 mm |
| Height | 125 mm |
| Width | 60 mm |
| Net weight | 270 g |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -25 °C to 60 °C |
| Humidity | 5 to 95 % (non-condensing) |
| Current consumption | 0.12 A |
| Overload current protection | 1.1 A |
| Supply voltage | 24/36 V DC, 24 V AC |
| Bandwidth backplane | 1 Gbit/s |
| MAC table size | 2 K |
| Packet buffer size | 384 kBit |
| Housing main material | Plastic |
| Protection degree | IP67 |
| Type of mounting | Wall mounting |
| Data switching | Store and Forward |
