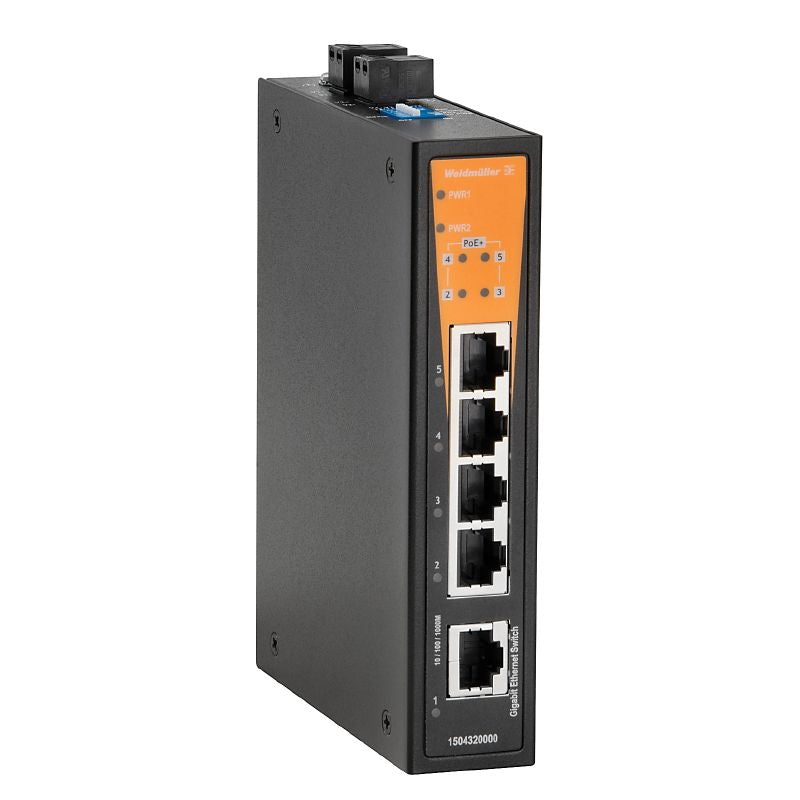

1504320000 - Unmanaged PoE Network Switch with 4 Ports for Gigabit Ethernet
1504320000 - Unmanaged PoE Network Switch with 4 Ports for Gigabit Ethernet
SKU: SKU: 1504320000 Download PDF
- 1504320000 - Unmanaged PoE Network Switch with 4 Ports for Gigabit Ethernet
- 1504320000 - Unmanaged PoE Network Switch with 4 Ports for Gigabit Ethernet
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Enhance your network setup with this unmanaged PoE network switch, which includes 4 RJ45 ports that support PoE+ alongside an additional RJ45 port for Gigabit Ethernet connectivity Operating efficiently in temperatures ranging from 0 °C to 60 °C, this switch is built for seamless integration into your systems It features robust IP30 protection for added reliability Certified under UL number E141197 and compliant with RoHS regulations, it ensures both safety and environmental responsibility.
Features and Benefits:
•Compliant with RoHS and includes exemptions.
•Comes with various EMC standards.
•Equipped with advanced functions like broadcast storm protection.
•Supports jumbo frame and energy-efficient Ethernet standards.
•LED indicators for power and PoE status.
Specifications:
| Depth | 105 mm |
| Height | 135 mm |
| Width | 29 mm |
| Net weight | 360 g |
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -40 °C to 85 °C |
| Power over Ethernet (PoE) output current | {'IEEE 802.3af': '350 mA', 'IEEE 802.3at': '600 mA', 'High power mode': '720 mA'} |
| PoE output power | {'IEEE 802.3af': '15.4 W', 'IEEE 802.3at': '30 W', 'High power mode': '36 W'} |
| PoE pin assignment | Mode A: Pin 1, 2 (V+); Pin 3, 6 (V-) |
| Total PoE power budget | {'Voltage type': 'DC', 'Voltage range': '12 V to 57 V', 'Power budget': {'12V': '62 W', '18V': '120 W', '36V': '144 W'}} |
| Submission compliance | ['FCC Part 15 Subpart B Class A', 'EN 55032', 'EN 55024'] |
| Protection degree | IP30 |
| Housing main material | Aluminium |
