1450880000 - 25-Pole FrontCom D-Sub Signal Insert, RoHS Compliant

1450880000 - 25-Pole FrontCom D-Sub Signal Insert, RoHS Compliant

SKU: 1450880000   Download PDF

Select a Variant:
  • 1450880000 - 25-Pole FrontCom D-Sub Signal Insert, RoHS Compliant
Qty:
Now $8.11   Web pricing policy
BEFORE   $0.00 Now $8.11 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

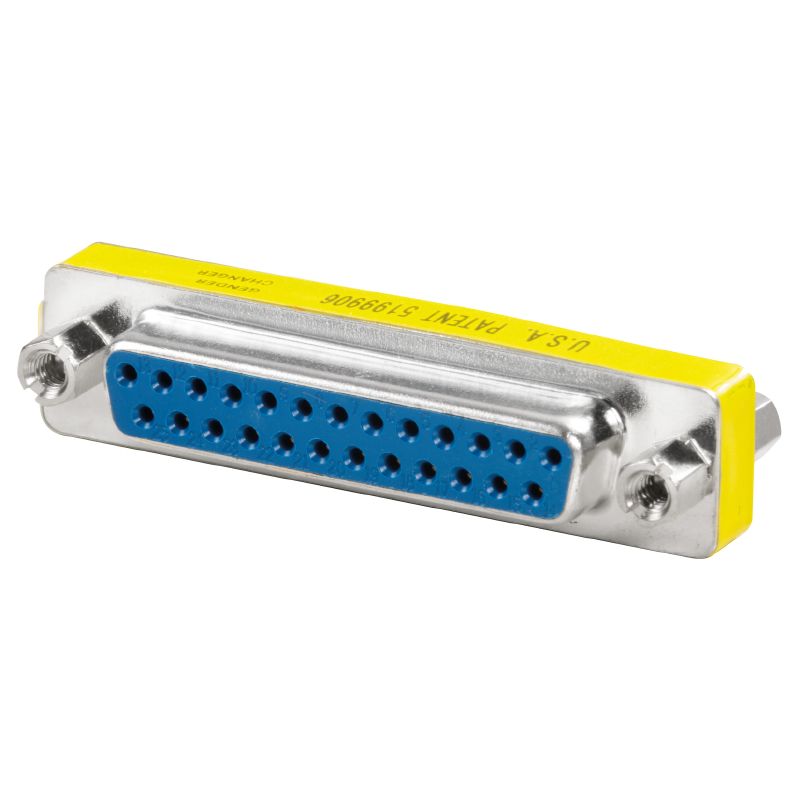

Introducing the FrontCom signal insert for D-Sub connections, built with a 25-pole socket-to-socket configuration This product meets RoHS compliance standards and has been certified under UL certificate number E497345 Constructed from durable materials, it guarantees dependable performance across various environmental conditions, making it a reliable choice for your connection needs.

Features and Benefits:

    •RoHS compliant with exemptions.

    •Designed for 25-pole socket configurations.

    •IP20 protection degree.

Specifications:

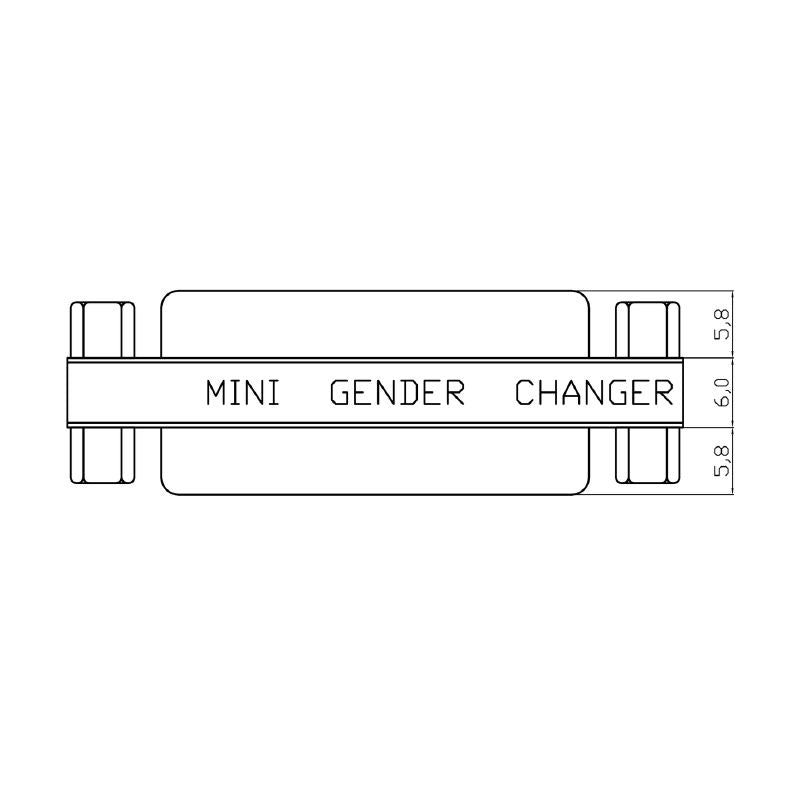

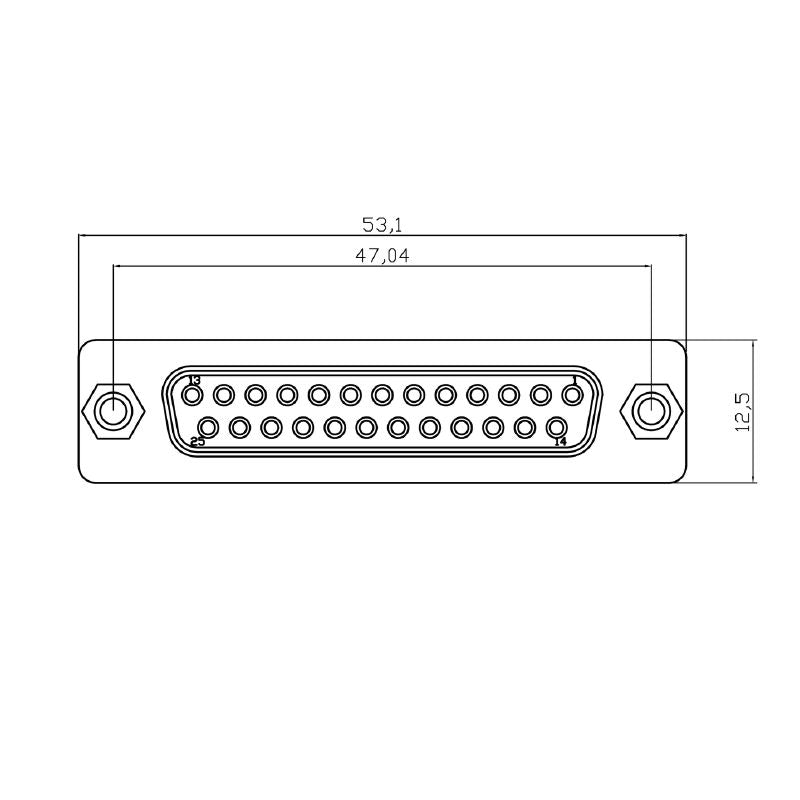

 Height 17.6 mm
 Width 12.5 mm
 Length 53.1 mm
 Operating temperature -55 °C to 105 °C
 Contact resistance ≤ 20 mΩ
 Contact surface Gold-plated
 Current-carrying capacity 3 A
 Dielectric strength, contact/contact 1 kV eff / 1 min.
 Housing main material SPCC
 Housing surface tin-plated
 Insulation resistance 1000 MΩ at 500 V DC
 Material insulator PBT glass fibre reinforced UL 94 V-0
 Number of poles 25
