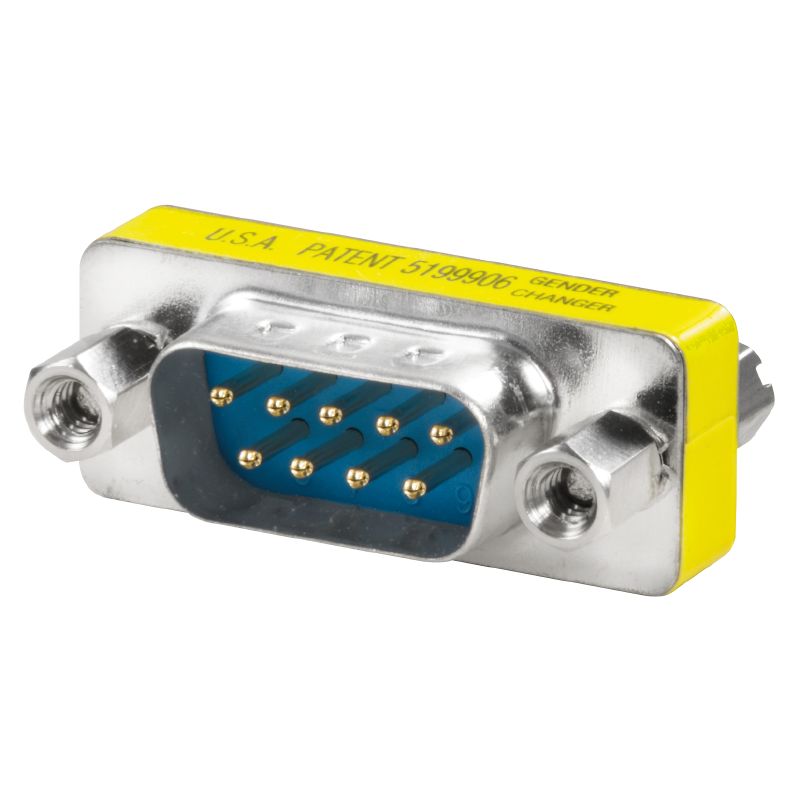

1450850000 - 9-Pole D-Sub Connector, RoHS Certified, Compact 17.9mm Height

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

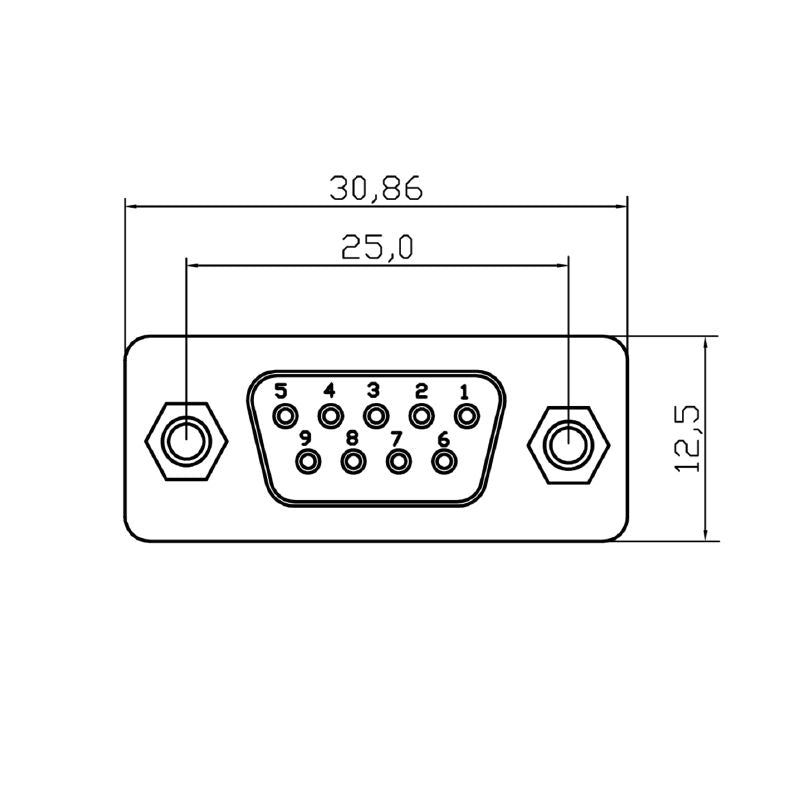

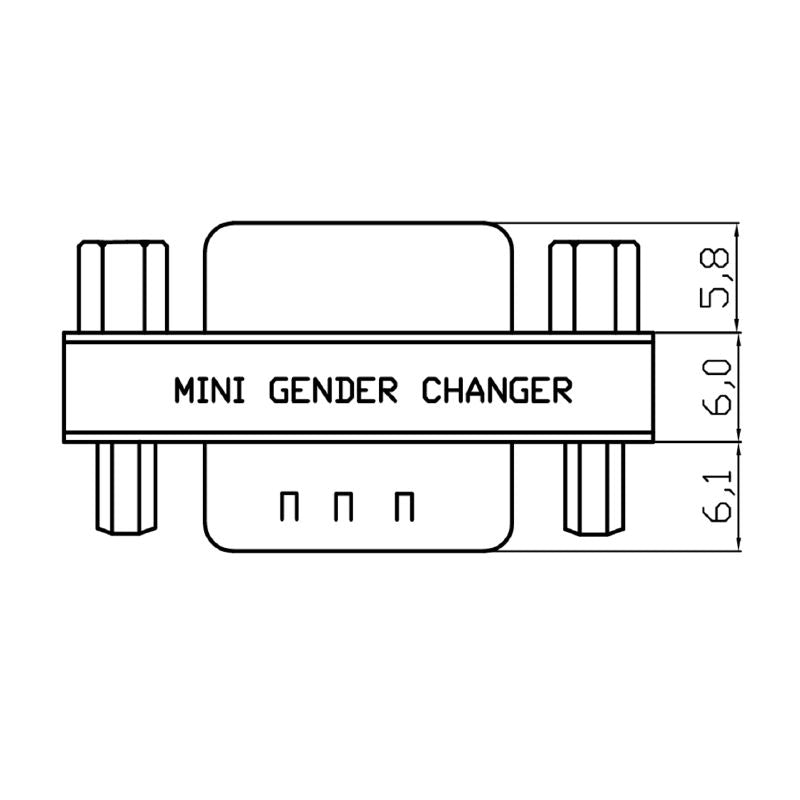

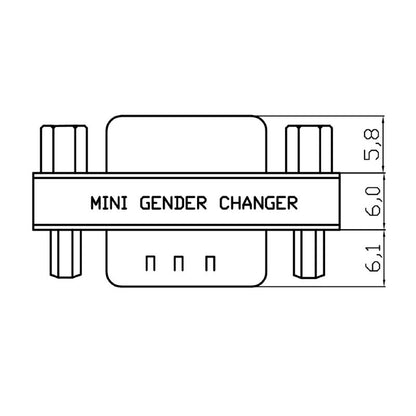

Introducing a 9-pole Signal insert D-Sub connector, expertly crafted for diverse applications This connector adheres to RoHS regulations, ensuring compliance with necessary exemptions Certified for quality, its UL file number confirms its credentials With compact dimensions of 179 mm in height, 125 mm in width, and 308 mm in length, it weighs only 968 grams Built to withstand temperatures ranging from -55 °C to 105 °C, this connector is reliable for a wide range of environments.

Features and Benefits:

•Contact resistance of ≤ 20 mΩ.

•Gold-plated contact surface.

•Current-carrying capacity of 3 A.

•Dielectric strength of 1 kV for 1 minute between contacts.

•Protection degree rating of IP20.

•Insulation resistance of 1000 MΩ at 500 V DC.

•Made from SPCC housing material which is tin-plated.

Specifications:
