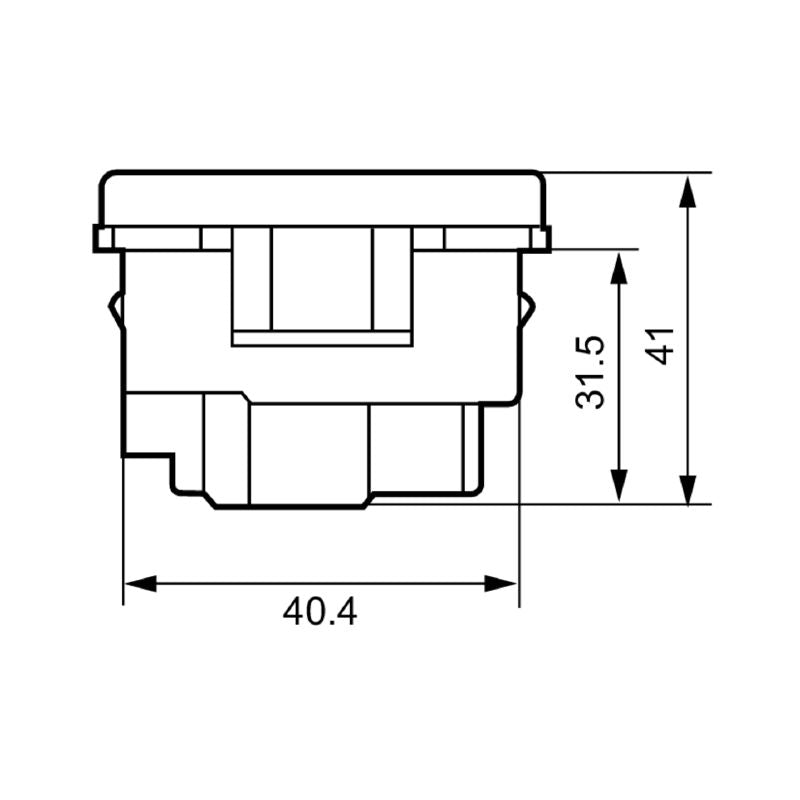

1450830000 - Type I 15A Socket Connector for Large Power Applications

SKU: SKU: 1450830000 Download PDF

Select a Variant:

1450830000 - Type I 15A Socket Connector for Large Power Applications

SET THE QTY:

Now $27.01 Web pricing policy

~~BEFORE $0.00~~ Now $27.01 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the IE-FCI-PWB-AU, a reliable Type I socket connector specifically engineered for substantial power needs, with a rating of 15 A This connector adheres to RoHS standards and ensures safety by not exceeding the 01 wt% limit for SVHC substances Weighing just 44 grams, it operates efficiently within a temperature spectrum of -5 °C to 40 °C Its eco-friendly design reflects its commitment to environmental safety, as evidenced by its RoHS compliance.

Ideal for robust applications, this connector combines functionality with an environmentally conscious approach.

Features and Benefits:

•Compliant with RoHS regulations.

•Environmental compliance without exemptions.

•Available with limited conductor connection cross-sections for various wire configurations.

•IP20 protection degree suitable for indoor use.

Specifications:

Storage temperature	-10 °C...70 °C
Operating temperature	-5 °C...40 °C

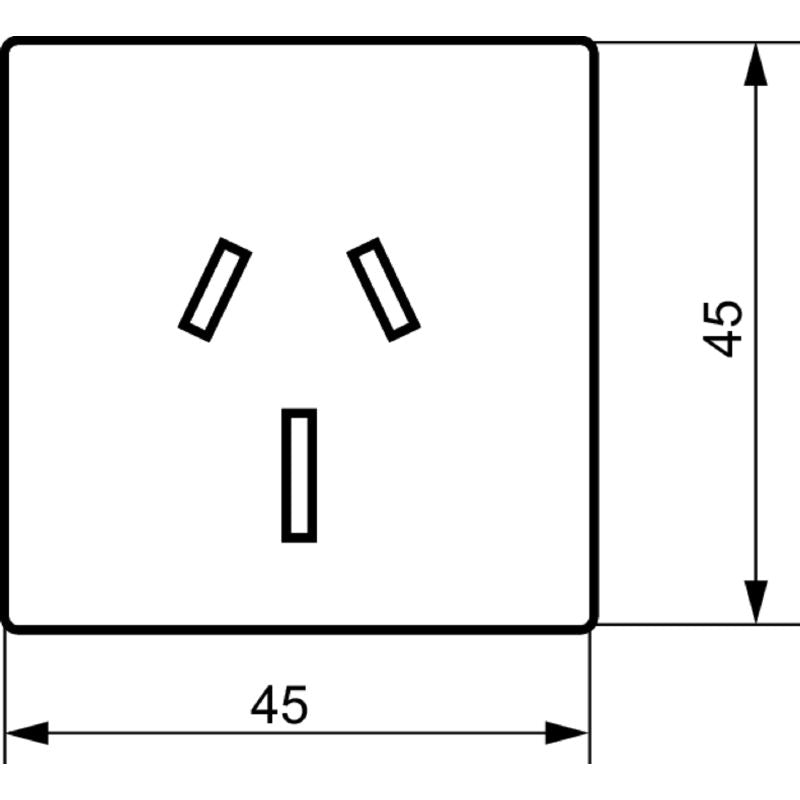

Connector face	Type I
Fire load	910 kJ
Insert type	Insert Power large
Clampable conductors	{'extremely flexible with wire end ferrule': '1.5 ... 2.5 mm²', 'extremely flexible without wire end ferrule': '1.5 ... 4 mm²', 'flexible with wire end ferrule': '1.5 ... 2.5 mm²', 'flexible without wire end ferrule': '1.5 ... 4 mm²', 'rigid': '1.5 ... 4 mm²'}
Stripping length	9 mm
Type of connection	Screw connection
Housing main material	Polycarbonate PC
Nominal current	15 A
Rated voltage (AC)	240 V
Certificate No. (DNV)	TAA000022B
ETIM classifications	{'ETIM 6.0': 'EC001121', 'ETIM 7.0': 'EC001121', 'ETIM 8.0': 'EC001121', 'ETIM 9.0': 'EC001121', 'ETIM 10.0': 'EC001121'}
ECLASS classifications	{'ECLASS 9.0': '27-44-03-90', 'ECLASS 9.1': '27-18-90-90', 'ECLASS 10.0': '27-44-03-90', 'ECLASS 11.0': '27-44-03-90', 'ECLASS 12.0': '27-18-28-92', 'ECLASS 13.0': '27-18-28-92', 'ECLASS 14.0': '27-18-28-92', 'ECLASS 15.0': '27-18-28-92'}
