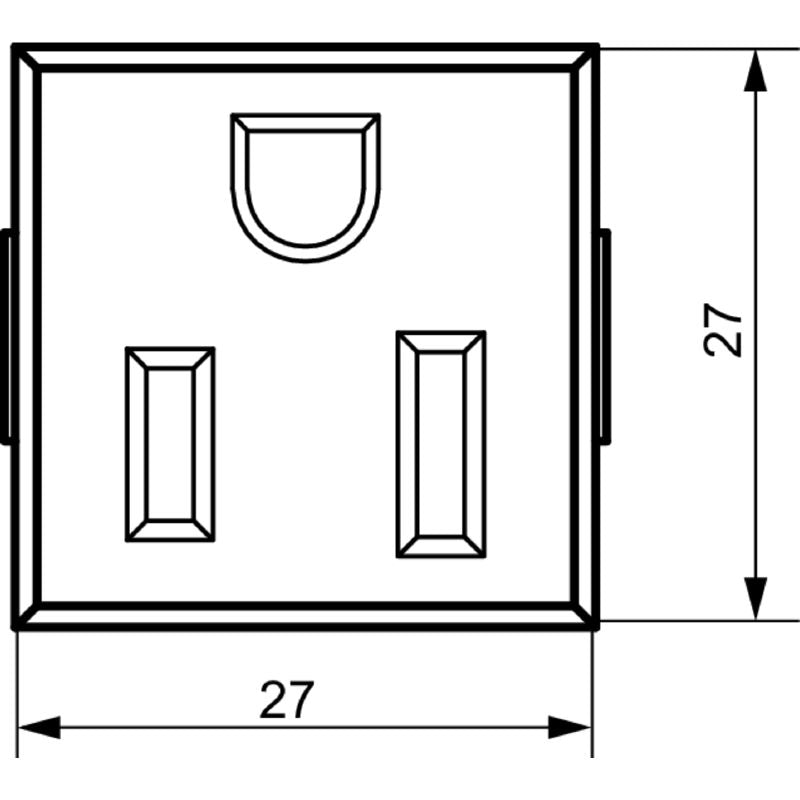

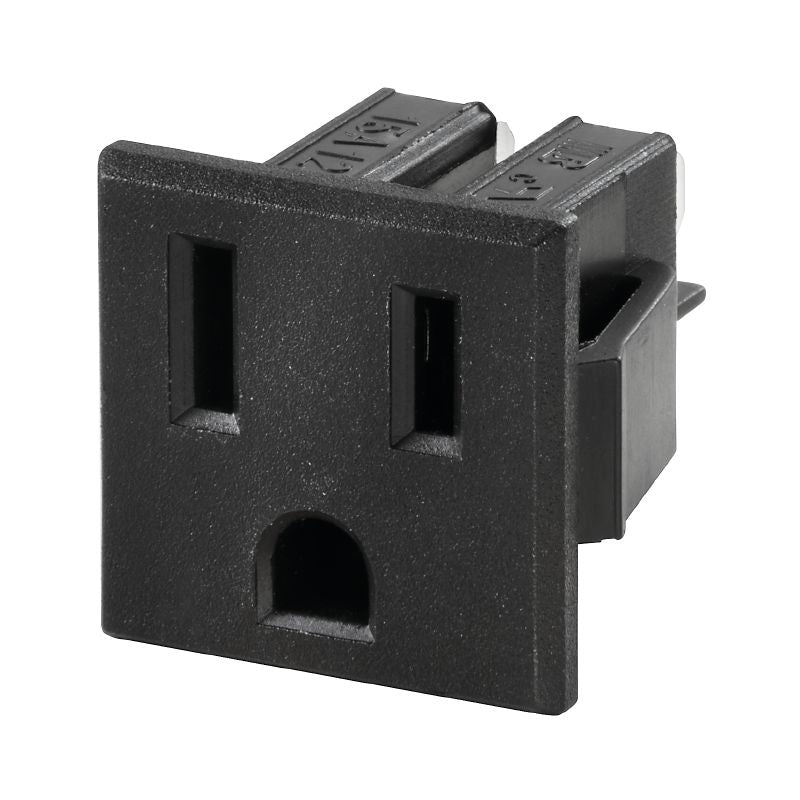

1450800000 - RoHS Compliant Type B Socket Connector, IP20 Rating

1450800000 - RoHS Compliant Type B Socket Connector, IP20 Rating

SKU: 1450800000   Download PDF

Select a Variant:
  • 1450800000 - RoHS Compliant Type B Socket Connector, IP20 Rating
Qty:
Now $17.96   Web pricing policy
BEFORE   $0.00 Now $17.96 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the IE-FCI-PWS-US, a Type B socket connector crafted specifically for the US market, adhering to RoHS and UL standards for quality assurance With a front-side protection rating of IP20, this connector is versatile enough for multiple applications It operates safely within a temperature range of -20 °C to 85 °C, complying with environmental regulations to guarantee a reliable performance.

Features and Benefits:

    •RoHS compliant without exemption.

    •Touch-safe protection is mandatory for US sockets.

    •Solder connection type.

Specifications:

 Operating temperature: -20 °C...85 °C
 Protection degree: IP20 (front side)
 Contact resistance: ≤ 30 mΩ
 Housing main material: PA 66
 Insulation resistance: ≥ 100 MΩ @ 500 V DC
 Nominal current: 15 A
 Rated voltage (AC): 125 V
 Certificate No. (UR): E479233
 Certificate No. (cURus): E340886
 Clampable conductors: Extremely flexible with and without wire end ferrule, flexible with and without wire end ferrule, rigid
