1450770000 - Durable Type G Socket Connector, IP20, RoHS Approved

1450770000 - Durable Type G Socket Connector, IP20, RoHS Approved

SKU: 1450770000 Download PDF

Variant:
  • 1450770000 - Durable Type G Socket Connector, IP20, RoHS Approved
Now $18.95
BEFORE   $0.00 Now $18.95
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

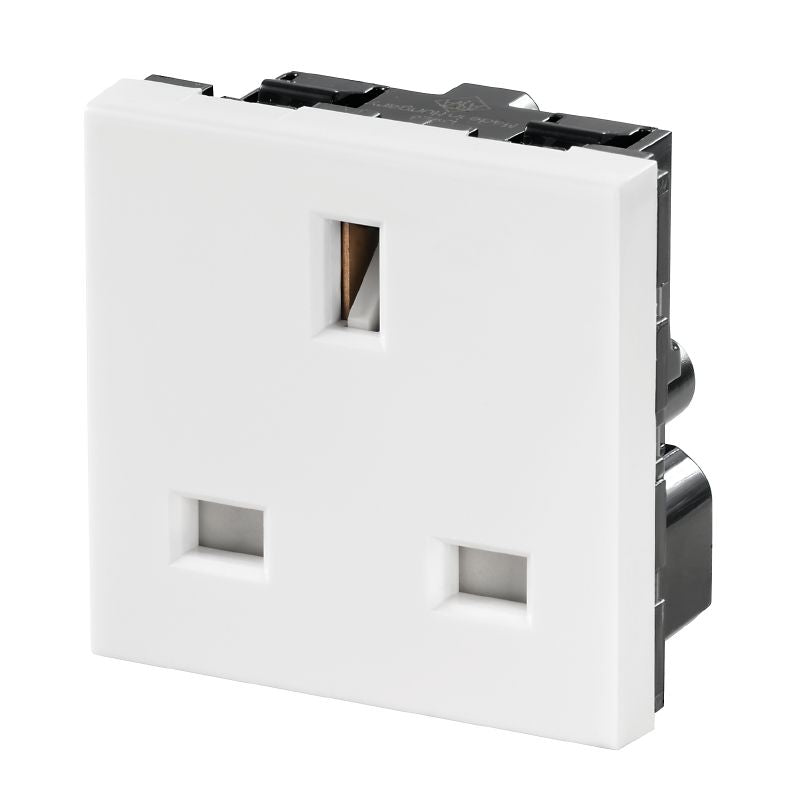

Introducing the Insert Power large Type G socket connector, specifically crafted for the FrontCom series This robust connector meets multiple industry standards and is RoHS compliant with relevant exemptions Engineered to withstand various environmental challenges, it operates efficiently between -5 °C and 40 °C and can be stored safely in temperatures ranging from -10 °C to 70 °C Weighing in at just 37 grams, this connector offers a protective rating of IP20, ensuring durability and reliability for your connection needs.

Features and Benefits:

    •Compliant with RoHS and has a specific exemption.

    •Can connect conductors with a cross-section ranging from 1.5 mm² to 4 mm² depending on the usage.

    •Screw connection type for secure fastening.

    •Constructed from polycarbonate PC for durability.

Specifications:

 Storage temperature -10 °C...70 °C
 Operating temperature -5 °C...40 °C
 Fire load 770 kJ
 Protection degree IP20
 Nominal current 13 A
 Rated voltage (AC) 250 V
 Stripping length 9 mm
 Housing main material Polycarbonate PC
 Conductor connection cross-section (flexible with wire end ferrule) 1.5 ... 2.5 mm²
 Conductor connection cross-section (flexible without wire end ferrule) 1.5 ... 4 mm²
 Conductor connection cross-section (rigid) 1.5 ... 4 mm²
 Certificate No. (DNV) TAA000022B
 GTIN (EAN) 4050118255577
 ETIM classifications EC001121
 ECLASS classifications 27-44-03-90, 27-18-90-90
