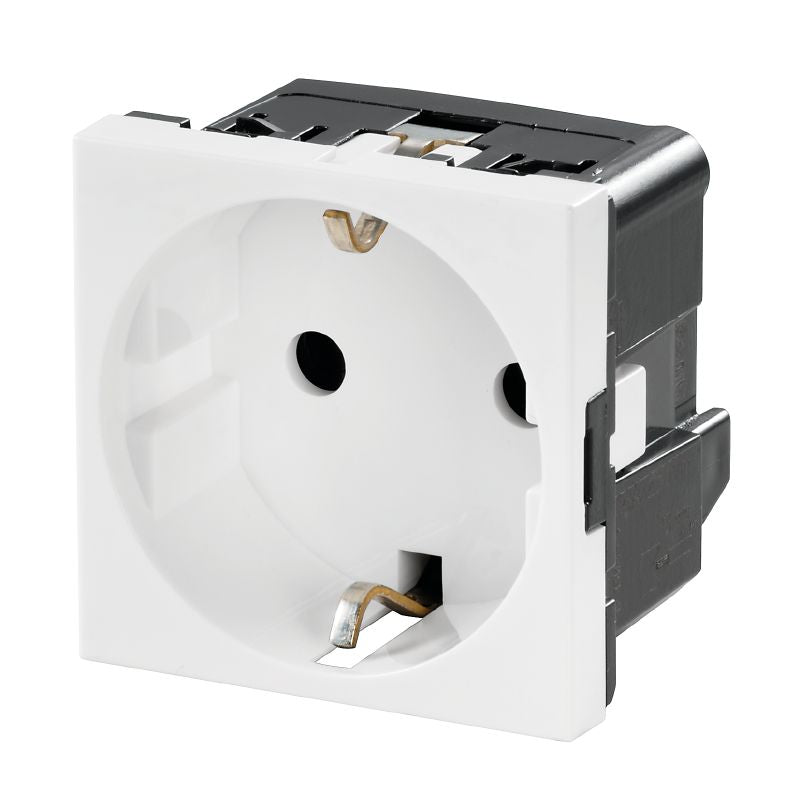

1450730000 - Type F Insert Power Connector for Electrical Socket Connections

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Type F front connector, specifically tailored for socket connectivity within the Insert Power large category This reliable connector meets RoHS standards without any exemptions With a GTIN (EAN) of 4050118255546, it is engineered for electrical connections, capable of operating within designated temperature ranges for both operation and storage Ideal for seamless electrical applications, this connector guarantees safety and compliance.

Features and Benefits:

•IP20 protection degree.

•Maximum fire load of 770 kJ.

•Extremely flexible conductor connection with wire end ferrule from 1.5 mm² to 1.5 mm².

•Flexible conductor connection without wire end ferrule ranging from 1.5 mm² to 2.5 mm².

•Rigid conductor connection capacity from 1.5 mm² to 2.5 mm².

•Stripping length of 10 mm.

•PUSH IN connection type.

Specifications:
