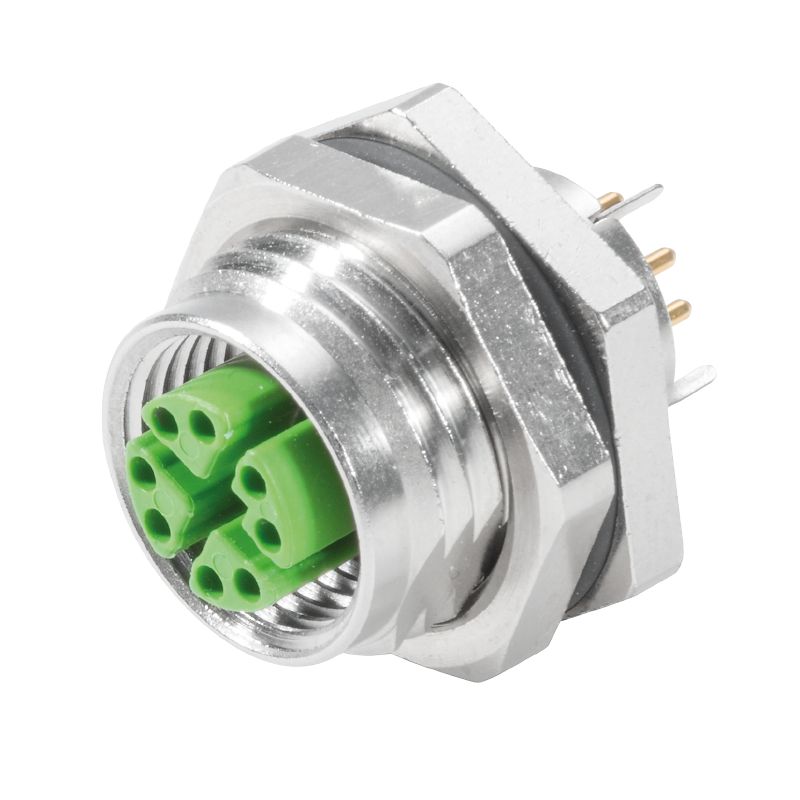

1444650000 - M12 PCB Connector, IP67 Rated, for Cat.6A Solder Connections (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 PCB plug-in connector, engineered for solder connections that meet the Cat6A / Class EA specifications outlined in ISO/IEC 11801 2010 This connector boasts an impressive IP67 rating when securely fastened, ensuring superior protection against dust and moisture With compatibility for reflow soldering, it's designed for effortless integration, and its ability to be mounted on the back panel adds versatility to your installations.

Features and Benefits:

•Compliant with RoHS and has a specific exemption.

•Operates in a temperature range from -40 °C to 85 °C.

•Contains a gold over nickel contact surface.

•Has a minimum wall thickness of 0.9 mm and a maximum of 2.5 mm.

•Excellent insulation resistance of 100 MΩ.

•Solder connection compatible with M12 connectors.

•High durability with ≥ 100 plugging cycles.

•Shielding material is CuSn providing 360° all-round enclosure.

Specifications:
