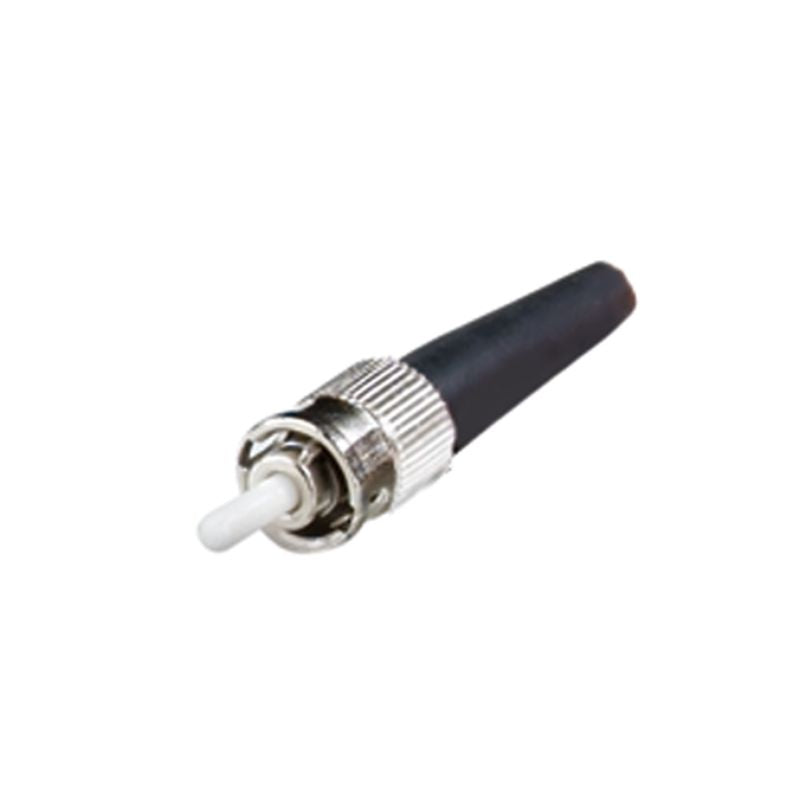

1414680000 - Durable ST Plug for Singlemode Applications, IP20 Rated

Description:

Introducing a robust ST plug, specifically engineered for singlemode applications This connector adheres to the IEC 61754-2 standard, ensuring compatibility and performance It includes a protective dust cap crafted from TPE, and is designed for a remarkable longevity with a plug-in retention capability of at least 1000 cycles The device boasts an impressive maximum insertion loss of 05 dB and achieves a return loss of 40 dB or more.

Rated with an IP20 protection level, it's compliant with RoHS standards, with certain exceptions Constructed from durable zinc diecast housing paired with a zirconia ferrule, this plug promises reliable connections Also noteworthy is its strong cable pull-out force, rated at a minimum of 100 N, guaranteeing a stable and secure link.

Features and Benefits:

•Compliant with RoHS regulations with an exemption.

•Connector standard according to IEC 61754-2.

•Dust protection cap material is TPE.

•Minimum plugging cycles rated at 1000.

•Insertion loss of ≤ 0.5 dB.

•Return loss of ≥ 40 dB.

•Bending protection sleeve made of TPE.

Specifications:
