1393470000 - Cat.5 PCB Connector, IP65 Rated, Solder Type (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

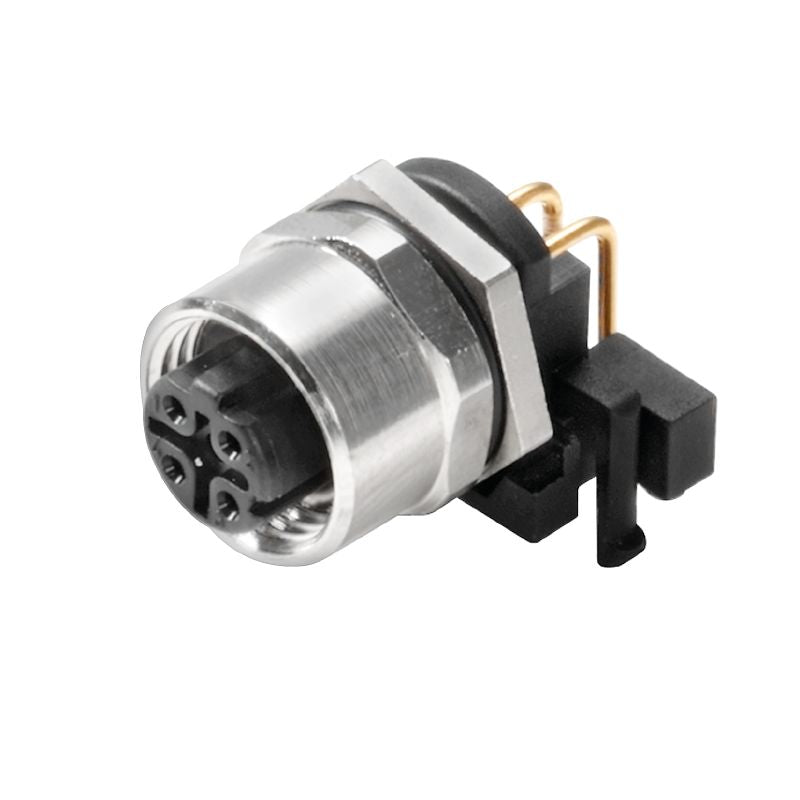

Introducing the IE-M12-PCBCE-PANEL-A, a versatile PCB connection solution designed for robust reliability This component features solder connections and adheres to Category 5 standards as outlined in ISO/IEC 11801 Boasting an IP65 rating according to DIN EN 60529, it offers excellent protection against dust and water Weighing in at just 10876 grams, this component operates effectively within a temperature range of -40 °C to 85 °C, making it suitable for various environments.

Additionally, it complies with RoHS directives, with a permitted exception under 6c, and contains lead (7439-92-1), as registered under SCIP registration number 9229992a-00b9-4096-8962-200a7f33e289.

Features and Benefits:

•Includes D-coded connection.

•Reflow compatible housing.

•Constructed from nickel-plated CuZn and polyamide materials.

Specifications:
