1393080000 - M12 PCB Connector, Cat.6A Solder, IP67 Rated (Pack of 10)

1393080000 - M12 PCB Connector, Cat.6A Solder, IP67 Rated (Pack of 10)

SKU: 1393080000   Download PDF

Select a Variant:
  • 1393080000 - M12 PCB Connector, Cat.6A Solder, IP67 Rated (Pack of 10)
Qty:
Now $306.40   Web pricing policy
BEFORE   $0.00 Now $306.40 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience reliable connectivity with this M12 PCB plug-in connector, specifically engineered for solder connections Complying with Cat6A / Class EA standards per ISO/IEC 11801 2010, this connector ensures high performance When installed correctly, it offers robust IP67 protection, making it suitable for various environments Additionally, it's designed for compatibility with reflow processes, enhancing its versatility for a range of applications.

Features and Benefits:

    •X-coded.

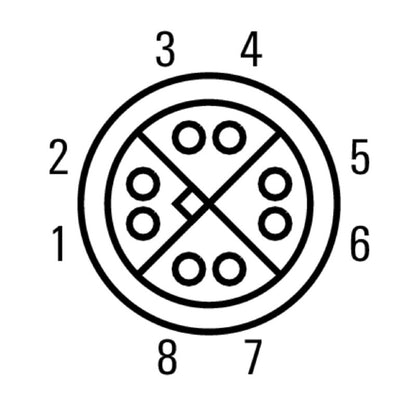

    •8 poles for connection.

    •Nominal voltage of 48V.

    •Gold over nickel contact surface.

    •CuZn housing material.

    •M12 connection thread.

    •High insulation resistance of 100 MΩ.

    •Can handle at least 100 plugging cycles.

    •Shielding material is CuSn with 360° all-round enclosure.

Specifications:

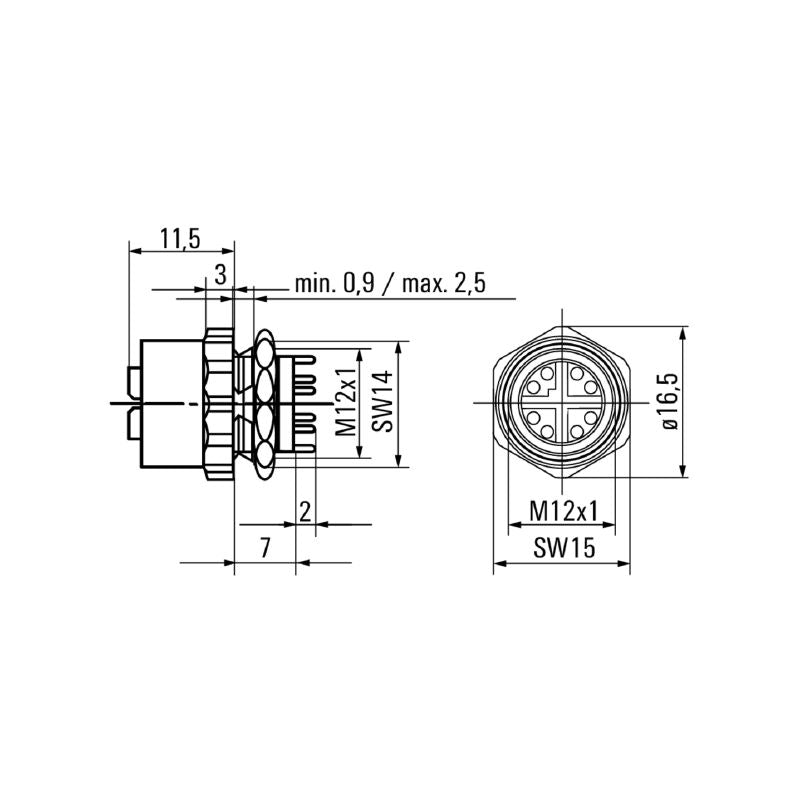

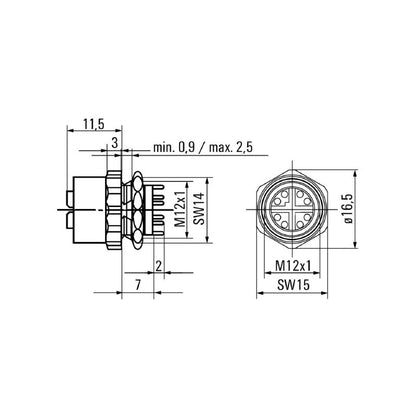

 Wall thickness, min. 0.9 mm
 Wall thickness, max. 2.5 mm
 Operating temperature -40 °C...85 °C
 RoHS Compliance Status Compliant with exemption
 RoHS Exemption 6c
 REACH SVHC Lead 7439-92-1
 SCIP 67cf1078-beca-4687-860b-dc475a6ec24a
 Protection degree IP67 when screwed in
