Description:

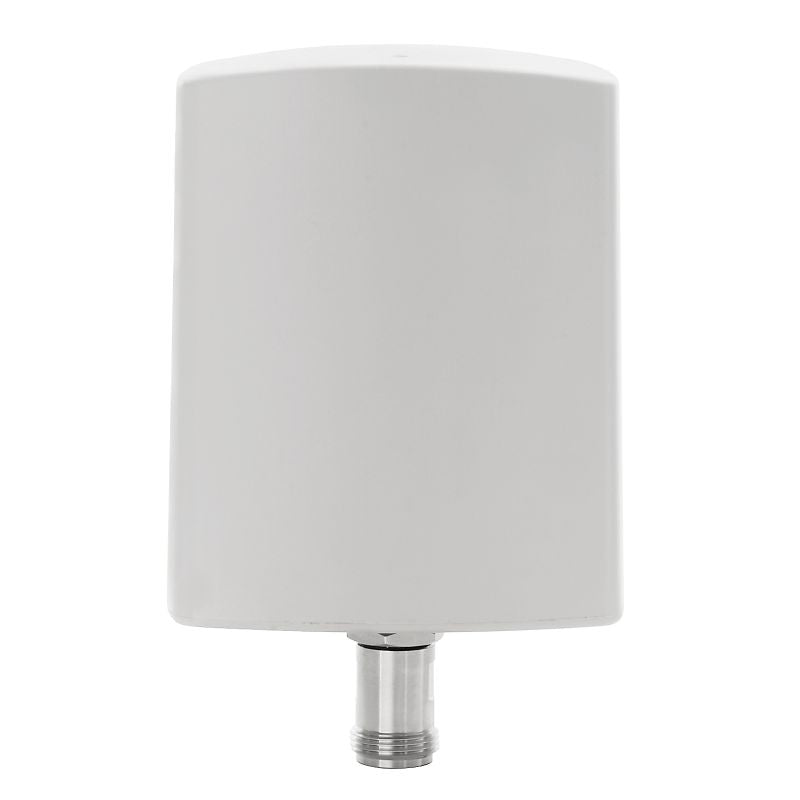

Enhance your wireless connectivity with this directional dual-band WLAN antenna Functioning at 24 GHz and 5 GHz frequencies, it delivers a strong gain of 9 dBi The antenna is equipped with an N-type female connector positioned at the base and boasts an IP67 rating, providing excellent protection against water and dust With an impedance of 50 Ω, it’s a reliable choice for your networking needs.
Features and Benefits:
•Directional radiation pattern.
•Suitable for both indoor and outdoor applications.
•Compliant with RoHS standards.
•Enclosure made from PC material.
•Includes wall mounting hardware in delivery.
•Used for WLAN communication in various environments.
Specifications:
| 3dB beamwidth (horizontal) | Band 1: 75°, Band 2: 55° |
| 3dB beamwidth (vertical) | Band 1: 55°, Band 2: 55° |
| Antenna gain | Band 1: 9 dBi, Band 2: 9 dBi |
| Composite power max. | 10 W |
| Frequency range | Band 1: 2400 - 2500 (MHz), Band 2: 5150 - 5875 (MHz) |
| Front-to-back ratio | Band 1: 15 dB, Band 2: 15 dB |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Radiation | Directional |
| Standing wave ratio | < 2 |
| Type of connection | 1x N-type female, bottom |
| Vertical electrical tilt | Band 1: 0°, Band 2: 0° |
| Operating temperature, max. | 80 °C |
| Operating temperature, min. | -40 °C |
| Storage temperature, max. | 80 °C |
| Storage temperature, min. | -40 °C |
| Wind load | Frontal 7 N @ 160 Km/h |
