1324010000 - M12 IP67 PCB Connector, Solder, Cat.6A Class EA (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

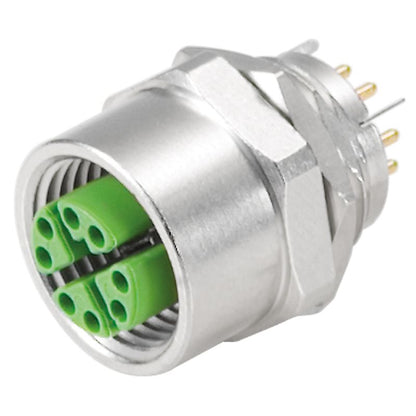

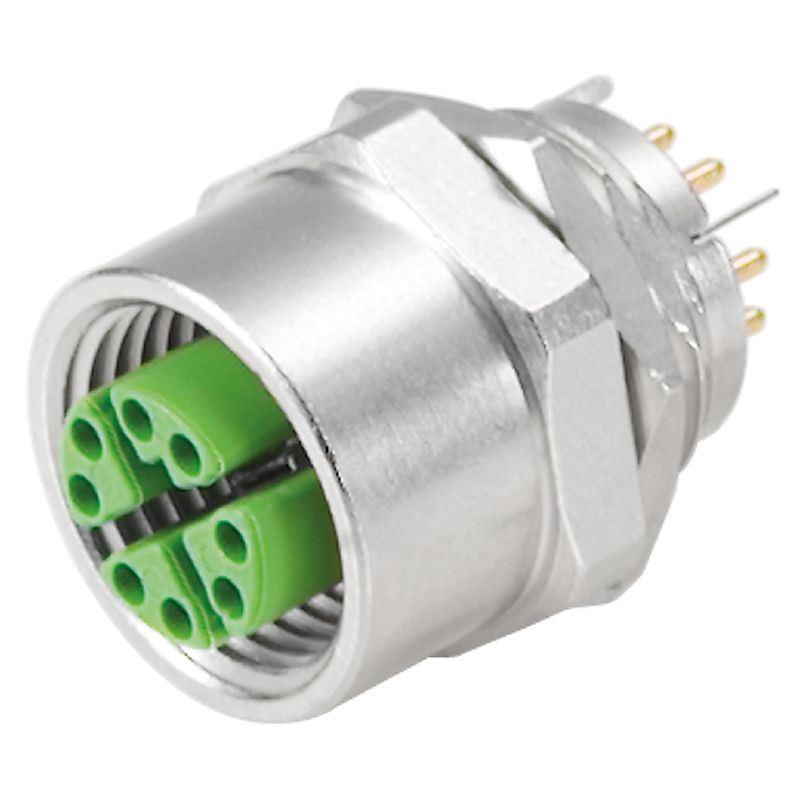

Introducing the IE-PCB-M12X-S-180, a durable PCB plug-in connector specifically crafted for solder connections It meets the rigorous standards of Cat6A / Class EA as outlined in ISO/IEC 11801 2010 When securely attached, this connector boasts an IP67 protection rating, ensuring excellent resistance against water and dust Additionally, it is compatible with reflow soldering processes, making it a versatile choice for your electronic projects.

Features and Benefits:

•Operating temperature range of -40 °C to 85 °C.

•X-coded for secure connections.

•Gold over nickel contact surface for improved conductivity.

•CuZn housing material ensures durability.

•360° all-round enclosure for effective shielding.

•Insulation resistance of 100 MΩ.

•Rated for a minimum of 100 plugging cycles.

Specifications:
