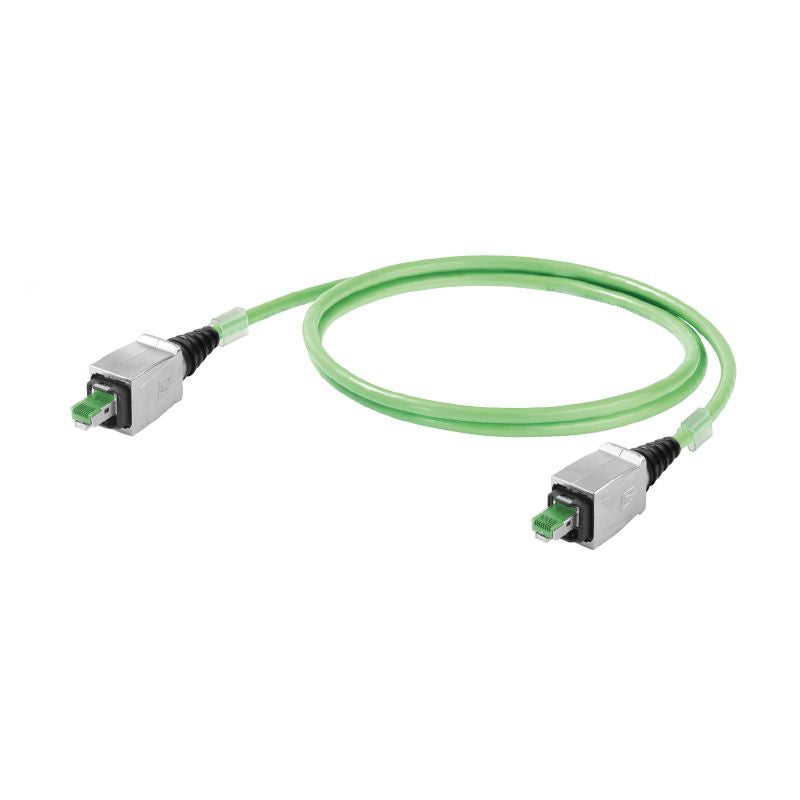

1312690010 - 1m RJ45 Torsion Cable, IP67 Metal PushPull Connection

1312690010 - 1m RJ45 Torsion Cable, IP67 Metal PushPull Connection

SKU: 1312690010   Download PDF

Select a Variant:
  • 1312690010 - 1m RJ45 Torsion Cable, IP67 Metal PushPull Connection
Qty:
Now $111.53   Web pricing policy
BEFORE   $0.00 Now $111.53 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a robust torsion cable equipped with durable RJ45 IP 67 PushPull molded connectors crafted from metal This cable meets both Category 5 and Category 5e specifications, ensuring reliable connectivity It operates well in a wide range of temperatures, from -40 °C to 80 °C, making it versatile for various environments Made from high-quality PUR material, this cable is also RoHS compliant, affirming its eco-friendliness without any exemptions.

Ideal for both storage and operational use, this cable is designed for durability and performance.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Very good abrasion resistance.

    •Halogen-free according to IEC 60754-2.

    •Silicone-free construction.

    •UV-resistant.

    •1 million torsion cycles.

    •Shielding S/UTP.

Specifications:

 Standard, assembly UL Style 21161
 Standard, insulating material DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
 Standard, shielding material DIN EN 13602 Cu-ETP-A..B
 Standard, wire material DIN EN 13602 Cu-ETP-A
 Connector standard IEC 61076-3-117 Var. 14
 Arrangement of wire cores Star-quad
 Colour sequence or wires - wire pairs white, yellow, blue, orange
 Complete shielding Plastic foil
 Wire material Stranded tin-plated copper wire
 Category Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Loop resistance 120 Ω/km
 Signal propagation time 4.8 ns/m
 Test voltage: wire-wire-shield 700 V rms, 50 Hz, 1 min
 Min. bending radius, once only 5 x cable diameter
 Min. bending radius, repetitive 10 x cable diameter
 Resistance to oils in accordance with IEC 60811-2-1
 Resistance to spread of flame in accordance with IEC 60332-1
 Torsion resistance 180 °/m
 Diameter of inner sheathing 4.5 mm
 Insulation cross-section 1.5 mm
 Sheath diameter, max. 6.7 mm
 Sheath diameter, min. 6.3 mm
 Sheathing material thickness 1 mm
 Shielding braid thickness 0.13 mm
 Strands 19
 Wire core insulation thickness 0.38 mm
