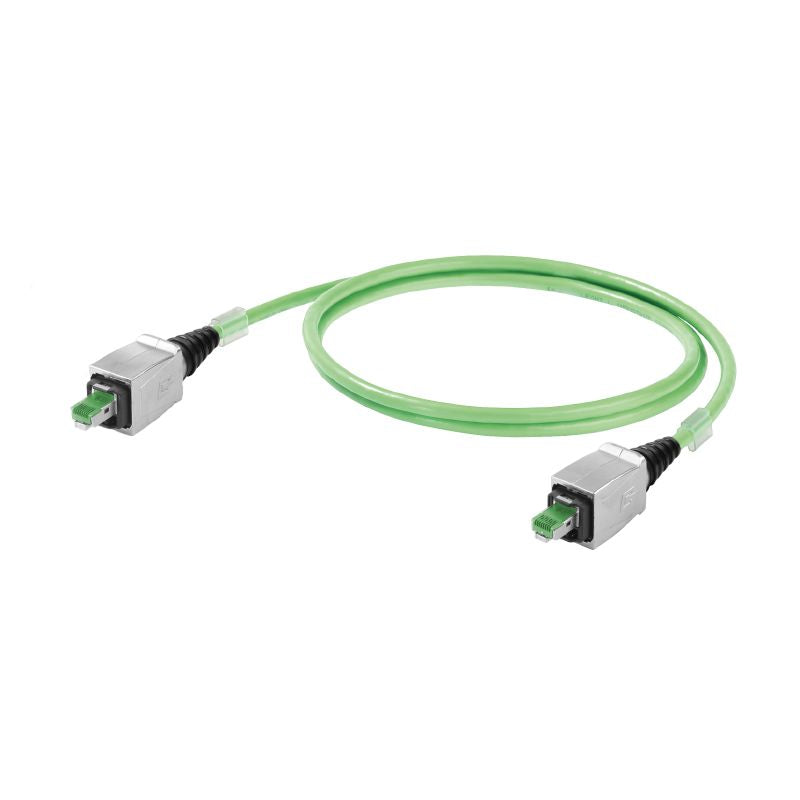

1307610075 - 7.5m PROFINET Dragline Cable with IP67 Metal Connectors

1307610075 - 7.5m PROFINET Dragline Cable with IP67 Metal Connectors

SKU: 1307610075 Download PDF

Variant:
  • 1307610075 - 7.5m PROFINET Dragline Cable with IP67 Metal Connectors
Now $139.17
BEFORE   $0.00 Now $139.17
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Elevate your connectivity with this dragline cable specifically engineered for PROFINET applications It comes equipped with robust RJ45 IP 67 PushPull molded connectors crafted from metal, ensuring durability and performance Compliant with both Cat5 standards per ISO/IEC 11801 and Cat5e according to TIA T568-B, this cable guarantees reliable data transmission Constructed from high-quality PUR material, it spans an impressive length of 7.

5 meters, making it ideal for various setups.

Features and Benefits:

    •Compliant with RoHS standards without exemption.

    •Cable features a star-quad arrangement of wire cores.

    •Very good abrasion resistance.

    •Halogen-free according to IEC 60754-2.

    •Resistant to oils as per IEC 60811-2-1 standards.

    •UV-resistant.

    •Silicone-free.

Specifications:

 Length 7.5 m
 Storage temperature -50 °C...70 °C
 Operating temperature -40 °C...70 °C
 Installation temperature -20 °C...60 °C
 Standard, insulating material DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
 Standard, shielding material DIN EN 13602 Cu-ETP-A..B
 Standard, wire material DIN EN 13602 Cu-ETP-A
 Cross-section 4*AWG 22/7 - 0.32 mm²
 Diameter of inner sheathing 3.9 mm
 Insulation PE
 Insulation cross-section 1.5 mm
 Material sheath PUR
 Number of wires 4
 Overlap of shielding braid 85 %
 Sheath diameter, max. 6.7 mm
 Sheath diameter, min. 6.3 mm
 Sheathing material thickness 0.9 mm
 Shielding SF/UTP
 Plug left RJ45, IP67, male contact, straight, PushPull V14 moulded, plug, Zinc diecast, shielded
 Plug right RJ45, IP67, male contact, straight, PushPull V14 moulded, plug, Zinc diecast, shielded
 Capacity at 1 kHz 52 nF/km
 Category Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Delay skew 40 ns/100m
 Loop resistance 120 Ω/km
 Operating voltage (UL rating) 600 V
 Signal propagation time 5.3 ns/m
 Speed 180 m/min
 Test voltage: wire-wire-shield 2000 V eff, 50 Hz, 1 min
 Transfer impedance 20 mΩ/m at 10 MHz
