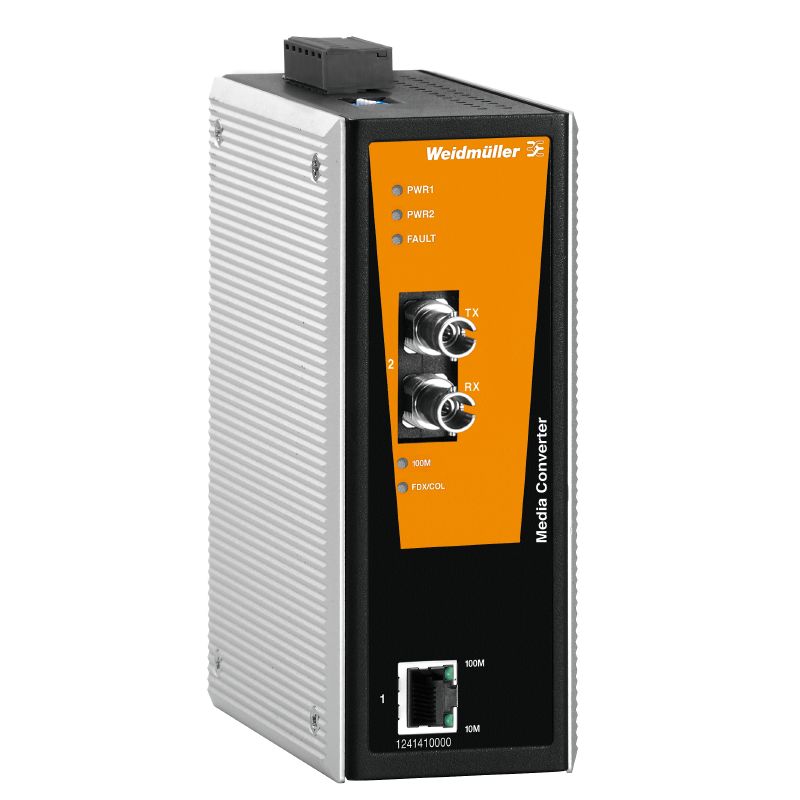

1286890000 - Fast Ethernet Media Converter, RJ45 & ST Ports, -40°C to 75°C
1286890000 - Fast Ethernet Media Converter, RJ45 & ST Ports, -40°C to 75°C
SKU: SKU: 1286890000 Download PDF
- 1286890000 - Fast Ethernet Media Converter, RJ45 & ST Ports, -40°C to 75°C
- 1286890000 - Fast Ethernet Media Converter, RJ45 & ST Ports, -40°C to 75°C
Couldn't load pickup availability
Description:
Ensure seamless data transmission with this versatile media converter, featuring support for Fast Ethernet Equipped with one RJ45 port and one ST multi-mode port, it operates efficiently across a wide temperature range from -40 °C to 75 °C, making it suitable for diverse environments This product adheres to RoHS standards, highlighting its eco-friendly design Measuring 105 mm deep, 135 mm tall, and 53.
6 mm wide, it has a weight of 630 grams, emphasizing its robust yet compact nature Ideal for reliable connectivity within specified parameters, this device is a practical solution for your networking needs.
Features and Benefits:
•Supports ambient temperatures from -40 °C to 75 °C.
•RoHS compliant with exemption.
•DIP switch for full-/half-duplex mode configuration.
•LED indicators for power and fault monitoring.
•Removable 6-pin terminal block for power connection.
•Reverse polarity protection included.
Specifications:
| Depth | 105 mm |
| Height | 135 mm |
| Width | 53.6 mm |
| Net weight | 630 g |
| Operating temperature (min) | -40 °C |
| Operating temperature (max) | 75 °C |
| Storage temperature (min) | -40 °C |
| Storage temperature (max) | 85 °C |
| Transmission rate | 100 Mbps |
| Transceiver type | Multimode |
| Connector type | ST-Duplex |
| Wavelength TX min | 1260 nm |
| Wavelength TX max | 1360 nm |
| Receive power min | -32 dBm |
| Receive power max | -3 dBm |
| Transmission power min | -20 dBm |
| Transmission power max | -10 dBm |
| Power supply voltage | 24 V DC |
| Power supply current | 0.32 A at 12 V, 0.16 A at 24 V |
