Description:

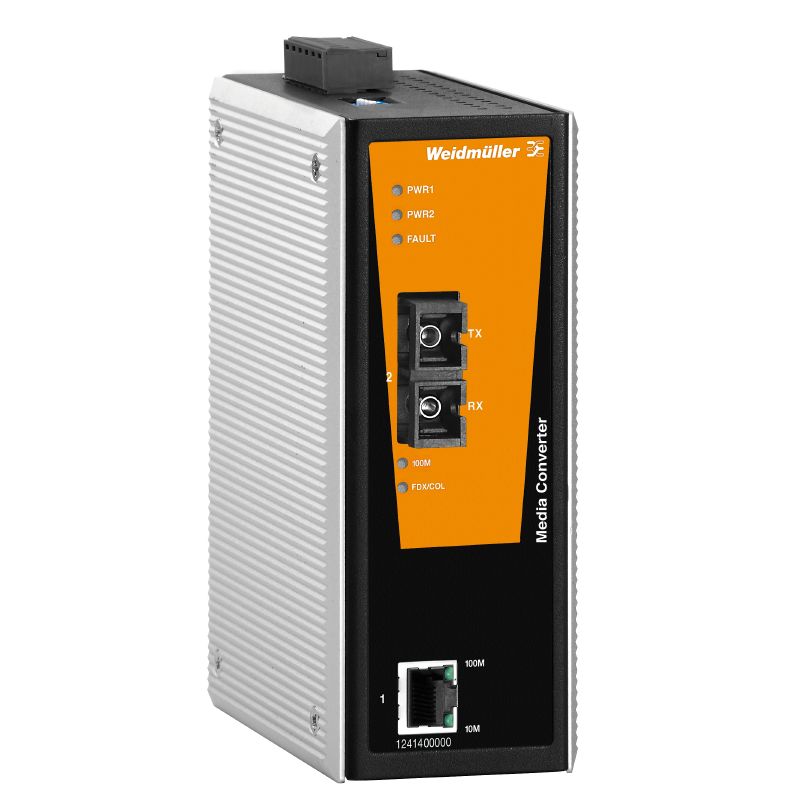

Experience seamless connectivity with the IE-MC-VLT-1TX-1SC media converter, specially engineered for Fast Ethernet applications It is equipped with a single RJ45 port and an SC Multi-mode port, ensuring versatile networking solutions This device operates effectively in extreme temperatures, ranging from -40 °C to 75 °C Additionally, it meets RoHS compliance standards, offering a dependable and environmentally friendly connection option.
Features and Benefits:
•Compliant with RoHS.
•Includes various EMC standards for compliance.
•Offers LED indicators for power and fault monitoring.
•Designed for environmentally harmful environments, operating in temperatures from -40 °C to 75 °C.
•Includes protective features such as reverse polarity protection.
Specifications:
| Depth | 105 mm |
| Height | 135 mm |
| Width | 53.6 mm |
| Transmission rate | 100 Mbps |
| Transceiver type | Multimode |
| Connector type | SC-Duplex |
| Transmission distance, typ. | 5 km |
| Humidity | 5 to 95 % (non-condensing) |
| Operating temperature, max. | 75 °C |
| Operating temperature, min. | -40 °C |
| Storage temperature, max. | 85 °C |
| Storage temperature, min. | -40 °C |
| Power supply | {'Connection type': '1 removable 6-pin terminal block', 'Voltage': '24 V DC', 'Current': '0.16 A'} |
| MTBF | 401,000 h |
| Housing main material | metal |
| Protection degree | IP30 |
| Type of mounting | DIN rail |
