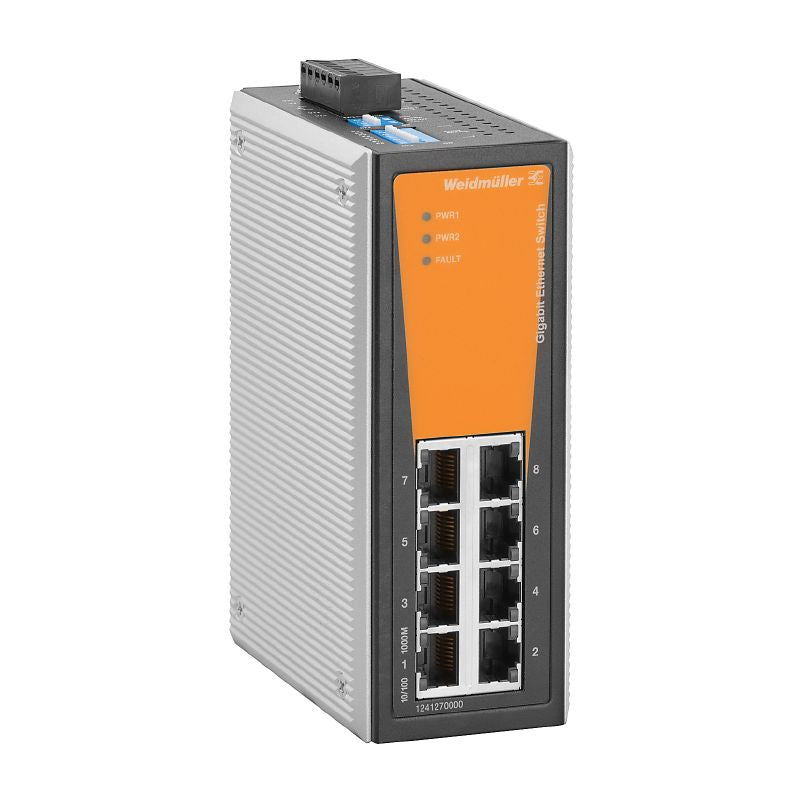

1286860000 - 8-Port Gigabit Ethernet Network Switch, Unmanaged, UL Certified
1286860000 - 8-Port Gigabit Ethernet Network Switch, Unmanaged, UL Certified
SKU: SKU: 1286860000 Download PDF
- 1286860000 - 8-Port Gigabit Ethernet Network Switch, Unmanaged, UL Certified
- 1286860000 - 8-Port Gigabit Ethernet Network Switch, Unmanaged, UL Certified
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience seamless connectivity with this unmanaged network switch, equipped with eight RJ45 ports that support Gigabit Ethernet speeds of 10/100/1000BaseT(X) Built to function reliably in extreme temperatures ranging from -40 °C to 75 °C, this switch has also met RoHS compliance standards and holds specific UL certifications Its versatile design makes it ideal for installation in environments that are safeguarded against dust and moisture, ensuring robust performance across various applications.
Features and Benefits:
•Compliant with RoHS.
•Operating temperature ranges from -40 °C to 75 °C.
•Supports a storage temperature range of -40 °C to 85 °C.
•IP30 protection degree.
•DIP switch functionalities for port management.
•LED indicators for power and fault status.
Specifications:
| UL File Number Search | E141197, E223527 |
| Dimensions (mm) | 105 x 135 x 52.85 |
| Current Consumption | 0.32 A at 24 V |
| Supply Voltage | 12/24/48 V DC |
| MTBF | 2,398,736 h |
| Backplane Bandwidth | 16 Gbit/s |
| Packet Buffer Size | 1,408 kBit |
| Jumbo Frame Support | up to 9.6 KB |
| Protection Standards | EN 55032, EN 55035, CISPR 32 |
| Regulatory Approvals | UL508, EN 62368-1 |
