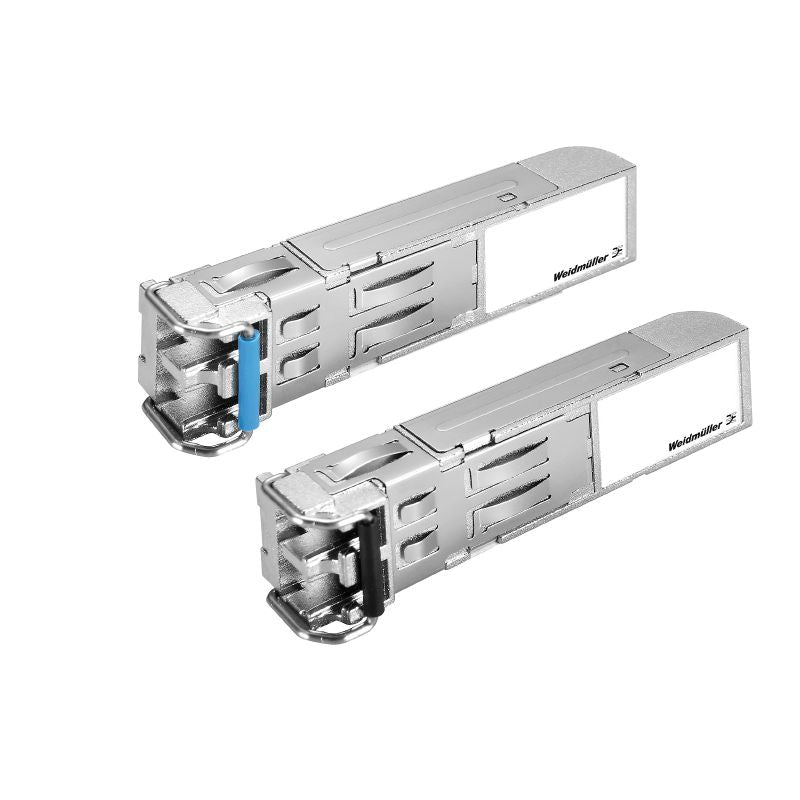

1286710000 - 1000 Mbps Multimode SFP Transceiver, LC-Duplex, 2 km Range
1286710000 - 1000 Mbps Multimode SFP Transceiver, LC-Duplex, 2 km Range
SKU: SKU: 1286710000 Download PDF
- 1286710000 - 1000 Mbps Multimode SFP Transceiver, LC-Duplex, 2 km Range
- 1286710000 - 1000 Mbps Multimode SFP Transceiver, LC-Duplex, 2 km Range
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience high-speed connectivity with our SFP transceiver, designed to deliver impressive performance at 1000 Mbps This device utilizes multimode fiber and is equipped with a reliable LC-Duplex connector With an optimal transmission range of up to 2 km, it operates efficiently within a temperature spectrum of -40 °C to 85 °C, making it suitable for various environments and applications.
Features and Benefits:
•Digital diagnostic monitor function supported.
•Humidity tolerance ranging from 5 to 95% (non-condensing).
•RoHS compliant with exemption.
•SFP slot insert mounting type.
Specifications:
| Transmission rate | 1000 Mbps |
| Transceiver type | Multimode |
| Connector type | LC-Duplex |
| Transmission distance | 2 km |
| Wavelength TX min | 1270 nm |
| Wavelength TX max | 1355 nm |
| Wavelength RX min | 1260 nm |
| Wavelength RX max | 1610 nm |
| Receive power min | -19 dBm |
| Receive power max | -1 dBm |
| Transmission power min | -9 dBm |
| Transmission power max | -1 dBm |
| Link-budget | 10 dB |
| Supply voltage | 3.3 V (via Ethernet switch) |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -40 °C to 85 °C |
| Net weight | 25 g |
