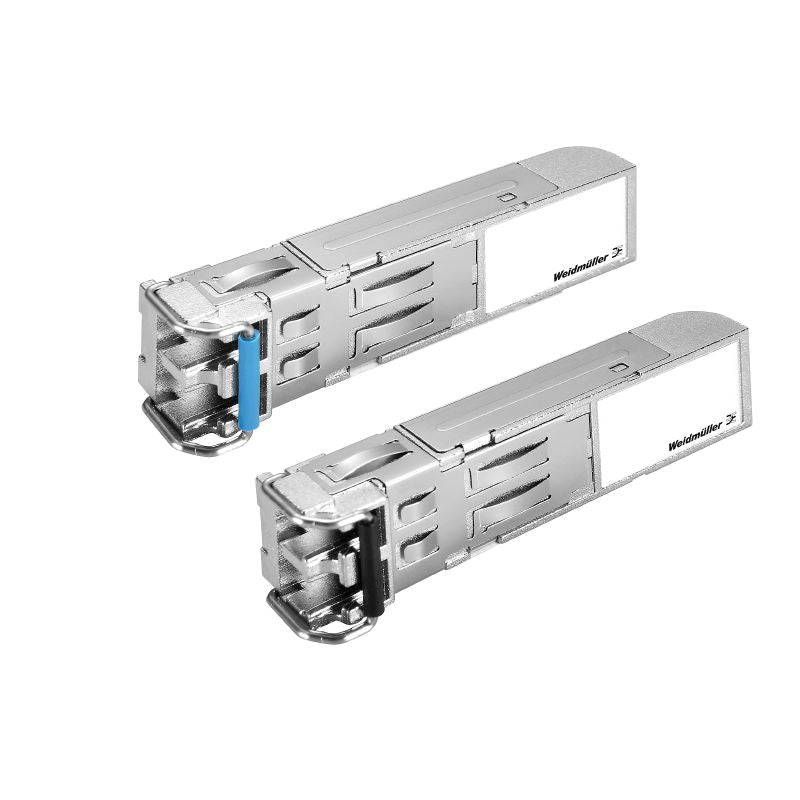

1286700000 - 1000 Mbps LC-Duplex Multimode Transceiver, 0.55 km Range
1286700000 - 1000 Mbps LC-Duplex Multimode Transceiver, 0.55 km Range
SKU: SKU: 1286700000 Download PDF
- 1286700000 - 1000 Mbps LC-Duplex Multimode Transceiver, 0.55 km Range
- 1286700000 - 1000 Mbps LC-Duplex Multimode Transceiver, 0.55 km Range
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience high-speed connectivity with this optical transceiver, operating at a remarkable 1000 Mbps Tailored for multimode applications, it features an LC-Duplex connector and can transmit data over distances of up to 055 kilometers This robust device is built to withstand a wide temperature range, functioning efficiently in environments from -40 °C to 85 °C.
Features and Benefits:
•Digital diagnostic monitor function supported.
•Compliant with RoHS exemption.
•Humidity tolerance of 5 to 95% (non-condensing).
•Suitable for various EMC standards.
Specifications:
| Transmission Rate | 1000 Mbps |
| Connector Type | LC-Duplex |
| Transmission Distance | 0.55 km |
| Wavelength TX Min | 830 nm |
| Wavelength TX Max | 860 nm |
| Wavelength RX Min | 770 nm |
| Wavelength RX Max | 860 nm |
| Receive Power Min | -18 dBm |
| Receive Power Max | 0 dBm |
| Transmission Power Min | -9.5 dBm |
| Transmission Power Max | -4 dBm |
| Link-Budget | 8.5 dB |
| Power Supply Voltage | 3.3 V (via Ethernet switch) |
| Mounting Type | Insert in SFP slot |
| Operating Temperature Max | 85 °C |
| Operating Temperature Min | -40 °C |
| Storage Temperature Max | 85 °C |
| Storage Temperature Min | -40 °C |
| UL File Number | E230683 |
| ETIM 6.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 10.0 | EC003628 |
| ECLASS 9.1 | 27-44-02-92 |
| Ethernet Ports | 1 |
