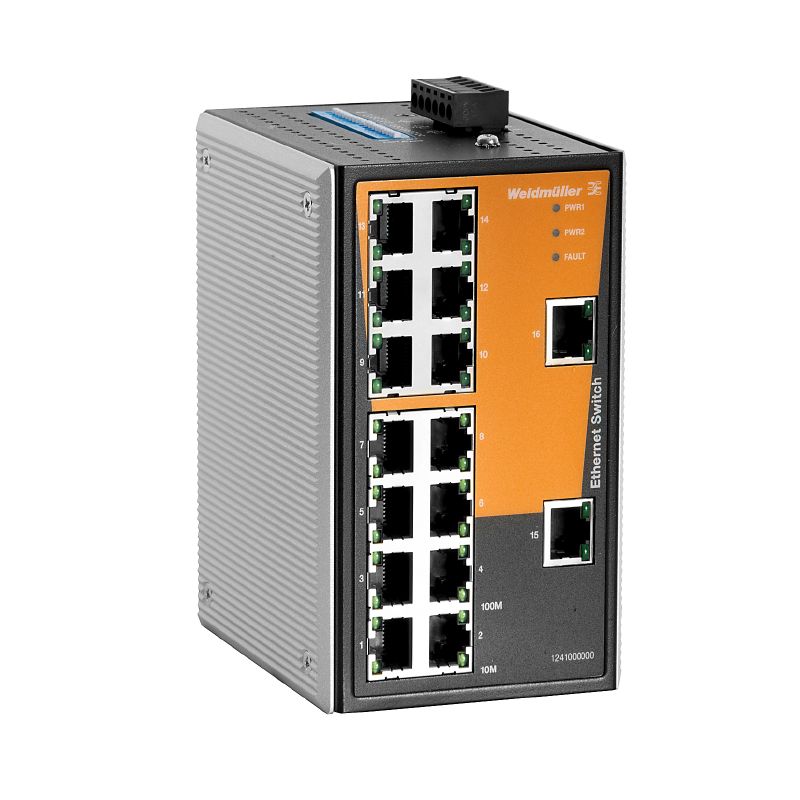

1286590000 - 16-Port Unmanaged Network Switch, Metal Housing, Fast Ethernet
1286590000 - 16-Port Unmanaged Network Switch, Metal Housing, Fast Ethernet
SKU: SKU: 1286590000 Download PDF
- 1286590000 - 16-Port Unmanaged Network Switch, Metal Housing, Fast Ethernet
- 1286590000 - 16-Port Unmanaged Network Switch, Metal Housing, Fast Ethernet
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience reliable networking with this unmanaged network switch, featuring 16 RJ45 ports that support Fast Ethernet Built to endure harsh environments, it functions within a wide temperature range of -40 °C to 75 °C This device meets multiple safety and electromagnetic compatibility standards, including UL508 and EN 55032 Measuring 105 mm deep, 135 mm tall, and 805 mm wide, it has a lightweight design at just 1.
14 kg Its rugged metal casing offers a robust protection rating of IP30, making it a great choice for various applications.
Features and Benefits:
•Includes 16x RJ45 ports supporting 10/100BaseT(X) with auto-negotiation and full-/half-duplex modes.
•Offers broadcast storm protection and port surveillance functionality.
•Equipped with LED indicators for power and fault status.
•Supports reverse polarity protection.
•DIP switch functionality for network management.
•Utilizes store and forward technology for data switching.
Specifications:
| Operating Temperature | -40 °C to 75 °C |
| Storage Temperature | -40 °C to 85 °C |
| Humidity | 5 to 95 % (non-condensing) |
| Power Supply Voltage | 12/24/48 V DC |
| Current Consumption | 0.27 A at 24 V |
| Overload Current Protection | 1.6 A |
| MTBF | 257,000 h according to MIL-HDBK-217F, GB 25°C |
| Bandwidth Backplane | 3.2 Gbit/s |
| MAC Table Size | 4 K |
| Packet Buffer Size | 1.25 Mbit |
| Housing Material | metal |
| Protection Degree | IP30 |
| Mounting Type | DIN rail |
| Flow Control | IEEE 802.3x flow control |
| Standard Compliance | IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X) and 100BaseFX; IEEE 802.3x for flow control |
