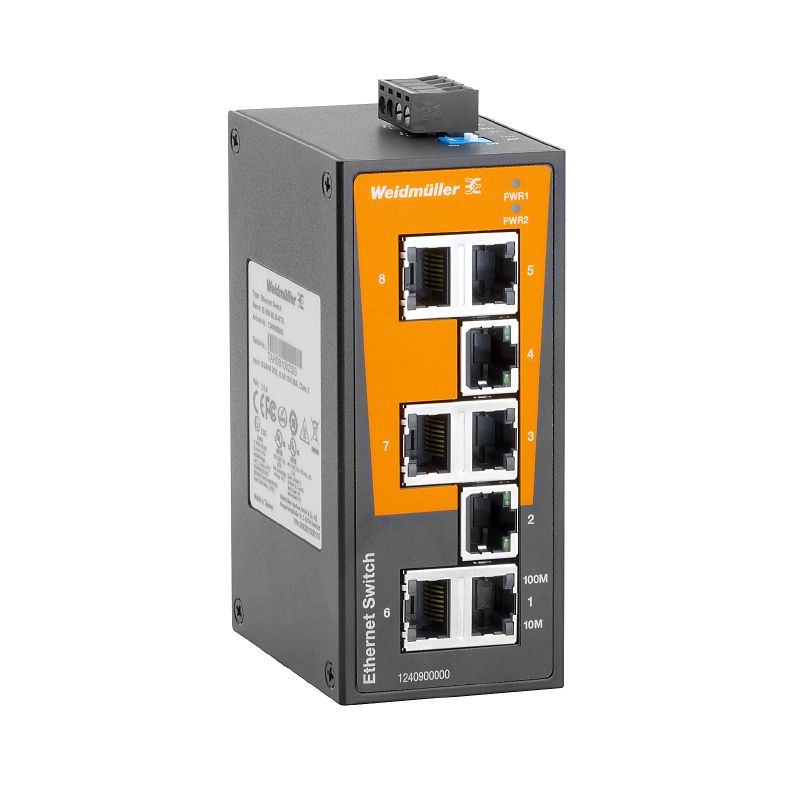

1286560000 - 8-Port Unmanaged Fast Ethernet Switch for Extreme Temperatures
1286560000 - 8-Port Unmanaged Fast Ethernet Switch for Extreme Temperatures
SKU: SKU: 1286560000 Download PDF
- 1286560000 - 8-Port Unmanaged Fast Ethernet Switch for Extreme Temperatures
- 1286560000 - 8-Port Unmanaged Fast Ethernet Switch for Extreme Temperatures
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Enhance your network setup with this unmanaged network switch, perfect for Fast Ethernet applications Equipped with 8 RJ45 ports, it supports various connectivity needs and operates efficiently in extreme temperatures, ranging from -40 °C to 75 °C This device adheres to RoHS standards and comes with the necessary certifications, ensuring reliability and compliance for your networking solutions.
Features and Benefits:
•IP30 protection rating.
•Unmanaged switch for ease of use.
•Operating temperature range of -40 °C to 75 °C.
•Supports Fast Ethernet.
•DIP switch for enabling/disabling broadcast storm protection.
•LED indicators for quick status checks.
•Networking environments requiring Fast Ethernet connections.
•Applications needing robust temperature resilience.
Specifications:
| Depth | 70 mm |
| Height | 115 mm |
| Width | 50 mm |
| Net weight | 275 g |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -40 °C to 75 °C |
| Current consumption | 0.13 A at 24 V |
| Supply voltage | 12/24/48 V DC |
| Bandwidth backplane | 1.6 Gbit/s |
| MAC table size | 2 K |
| Packet buffer size | 768 kBit |
| Protection degree | IP30 |
| Material | Aluminium |
| Mounting type | DIN rail |
| Flow control | IEEE 802.3x flow control |
