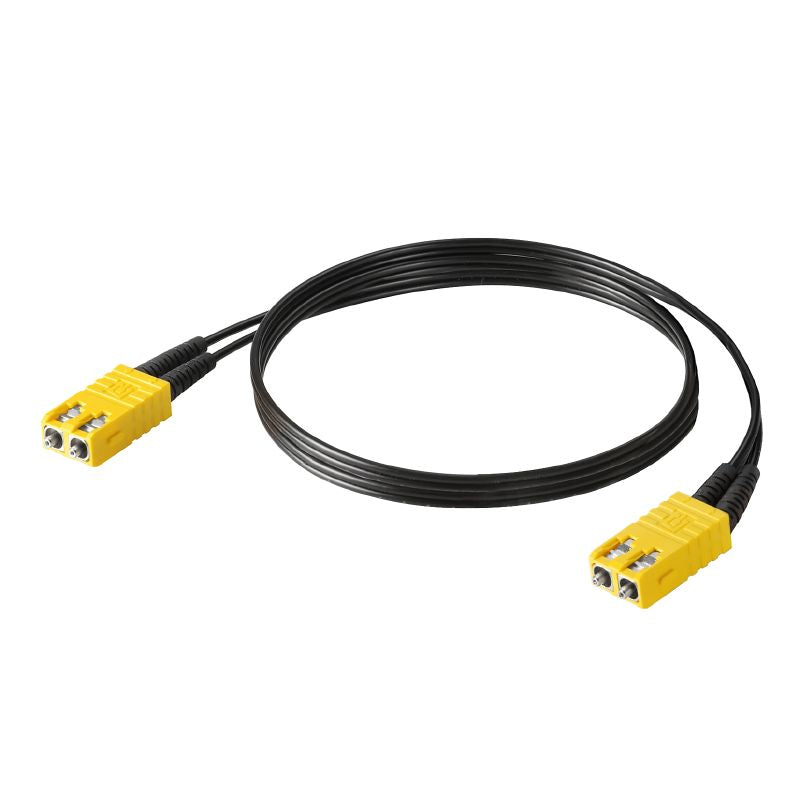

1273430200 - 20m PROFINET Connecting Line, SCRJ IP20, Durable Polycarbonate

1273430200 - 20m PROFINET Connecting Line, SCRJ IP20, Durable Polycarbonate

SKU: 1273430200   Download PDF

Select a Variant:
  • 1273430200 - 20m PROFINET Connecting Line, SCRJ IP20, Durable Polycarbonate
Qty:
Now $144.82   Web pricing policy
BEFORE   $0.00 Now $144.82 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a 20-meter connecting cable engineered for PROFINET applications, featuring SCRJ IP 20 compliance This high-performance cable is crafted with a durable polycarbonate sheath and boasts a core diameter of 980 micrometers, making it ideal for demanding environments Additionally, it meets ROHS standards for safer materials, ensuring you have a reliable and environmentally conscious connection.

Features and Benefits:

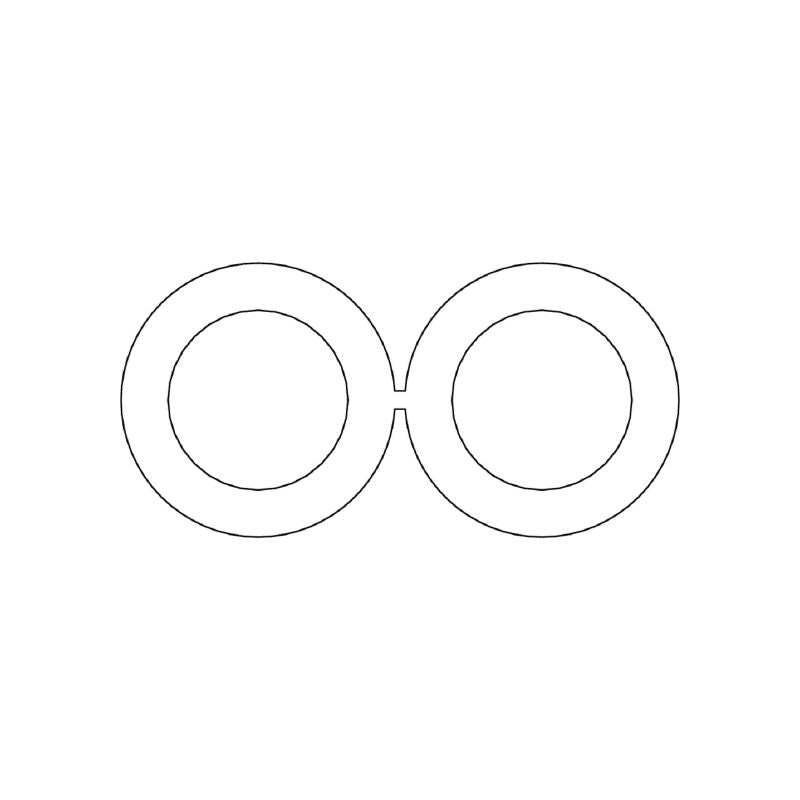

    •ZIPCORD cable layout.

    •Compliant with ROHS exemption 6c.

    •Operating temperature range from -20 °C to 80 °C.

    •High bending cycle durability with 10,000 cycles.

    •Pulling force capacity of up to 160 N.

    •Black sheathing color.

Specifications:

 Order Number 1273430200
 GTIN (EAN) 4050118272611
 Length 20 m
 Length (inches) 787.402 inch
 Fibre Type POF
 Attenuation ≤ 160 dB/km at 650 nm
 Bandwidth ≥ 100 MHz*km at 650 nm
 Insertion Loss ≤ 1.0 dB
 Insulation PE
 Number of Wires 2
 Sheath Diameter 2.2*4.5 mm
 Minimum Bending Radius (once only) 25 mm
 Minimum Bending Radius (repetitive) 25 mm
 Plug (Left) SC-RJ, IP20, male contact, straight, plug, Plastic, unshielded
 Plug (Right) SC-RJ, IP20, male contact, straight, plug, Plastic, unshielded
 Halogen No
 Environmental Product Compliance Compliant with exemption
 REACH SVHC Lead 7439-92-1
 SCIP 67cf1078-beca-4687-860b-dc475a6ec24a
 ETIM Classifications {'ETIM 6.0': 'EC002607', 'ETIM 7.0': 'EC002607', 'ETIM 8.0': 'EC002607', 'ETIM 9.0': 'EC002607', 'ETIM 10.0': 'EC002607'}
 ECLASS Classifications {'ECLASS 9.0': '27-06-10-03', 'ECLASS 9.1': '27-06-10-03', 'ECLASS 10.0': '27-06-10-03', 'ECLASS 11.0': '27-06-10-03', 'ECLASS 12.0': '27-06-10-03', 'ECLASS 13.0': '27-06-10-03', 'ECLASS 14.0': '27-06-10-03', 'ECLASS 15.0': '27-06-10-03'}
