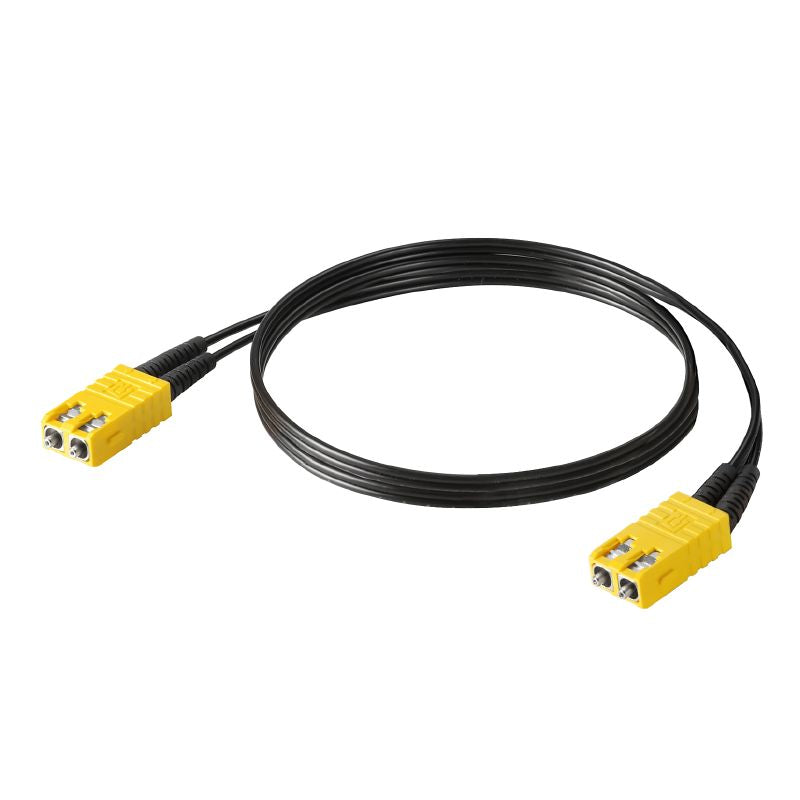

1273430050 - 5m PROFINET Connecting Line with IP20 SCRJ Connectors

1273430050 - 5m PROFINET Connecting Line with IP20 SCRJ Connectors

SKU: 1273430050   Download PDF

Select a Variant:
  • 1273430050 - 5m PROFINET Connecting Line with IP20 SCRJ Connectors
Qty:
Now $74.30   Web pricing policy
BEFORE   $0.00 Now $74.30 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Optimize your PROFINET system with this 5-meter connecting line Featuring SCRJ connectors with an IP 20 rating, this cable ensures reliable performance The core diameter measures 980 µm, and it complies with ROHS standards, making it a great choice for environmentally conscious users This line operates efficiently in a wide temperature range from -20 °C to 80 °C, making it suitable for various applications.

Features and Benefits:

    •Compliant with ROHS exemption 6c.

    •Utilizes POF fibre type.

    •Attenuation is ≤ 160 dB/km at 650 nm.

    •Bandwidth of ≥ 100 MHz*km at 650 nm.

    •Insertion loss is ≤ 1.0 dB.

    •Cable layout is ZIPCORD.

    •Insulated with PE.

    •Black sheath color.

    •Designed for 10,000 bending cycles.

    •Minimum bending radius of 25 mm (once and repetitive).

    •Pulling force rated at ≤ 160 N.

Specifications:

 Operating temperature: -20 °C...80 °C
 SCIP: 67cf1078-beca-4687-860b-dc475a6ec24a
 Number of wires: 2

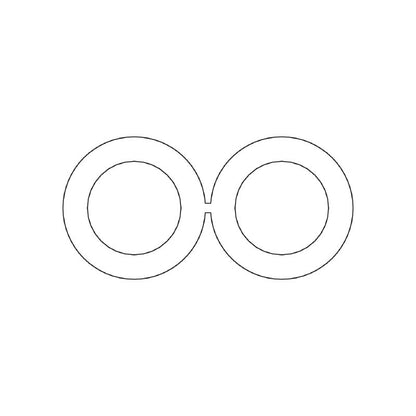

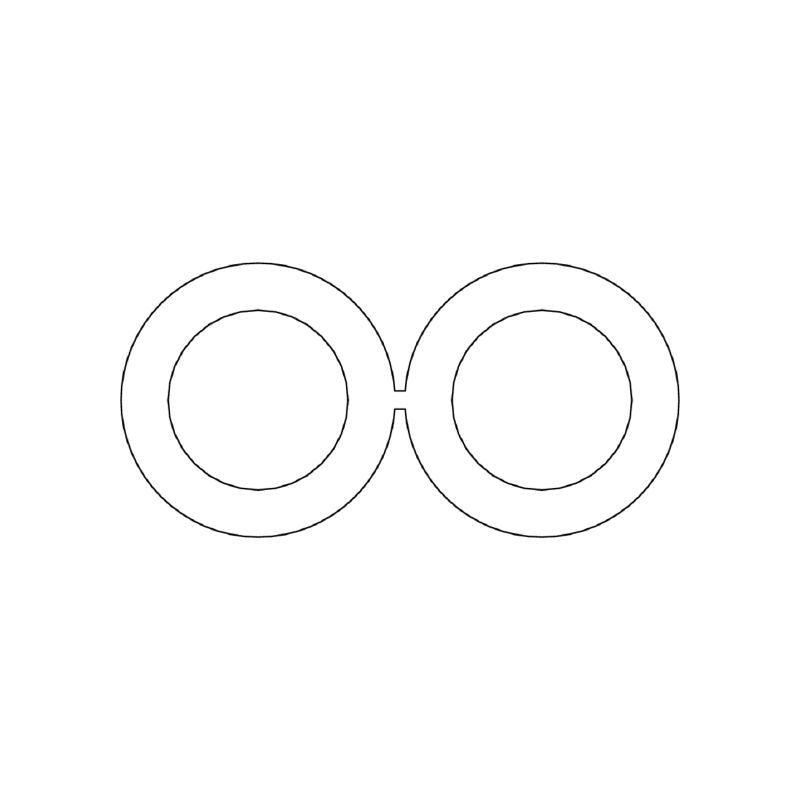

 Sheath diameter: 2.2*4.5 mm
 Plug left: SC-RJ, IP20, male contact, straight, plug, Plastic, unshielded
 Plug right: SC-RJ, IP20, male contact, straight, plug, Plastic, unshielded
 GTIN (EAN): 4050118062878
