1253240000 - IP65 POF Repeater, Aluminum, -20 to 55°C, PROFINET Support

Description:

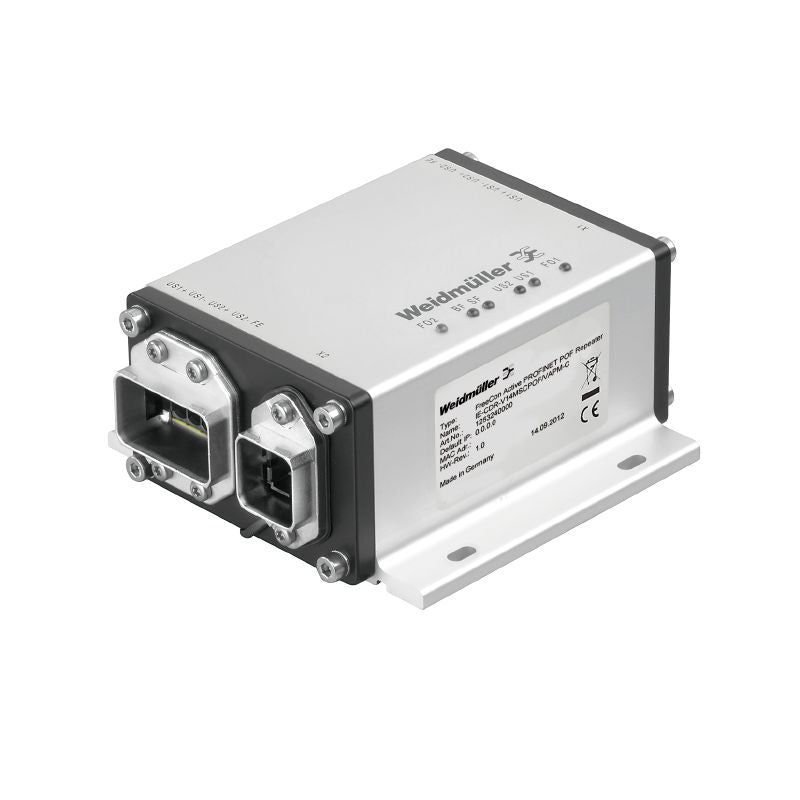

Introducing the freeCon POF repeater, engineered for dependable performance within a temperature range of -20 °C to 55 °C This device adheres to RoHS regulations and is exempt under certain conditions Housed in a sturdy aluminum profile, it features a painted die-cast zinc cover for added durability Designed for seamless connectivity, it utilizes a PROFINET PushPull SCRJ POF (V14) data interface with an impressive baud rate of 100 MB and a typical current consumption of 200 mA.

With LED indicators, you can easily monitor port statuses and any potential errors It operates on a voltage of 24 V, accommodating a range from 18 to 30 V DC Its robust construction boasts an IP65 protection degree and a UL 94 flammability rating of V-0 This repeater is also built to endure over 100 plugging cycles, making it a reliable choice for your connectivity needs.

Features and Benefits:

•Housing made of aluminum with a die-cast zinc cover.

•Protection degree of IP65.

•Supports 100 MB baud rate.

•Typical current consumption of 200 mA.

•More than 100 plugging cycles.

Specifications:
