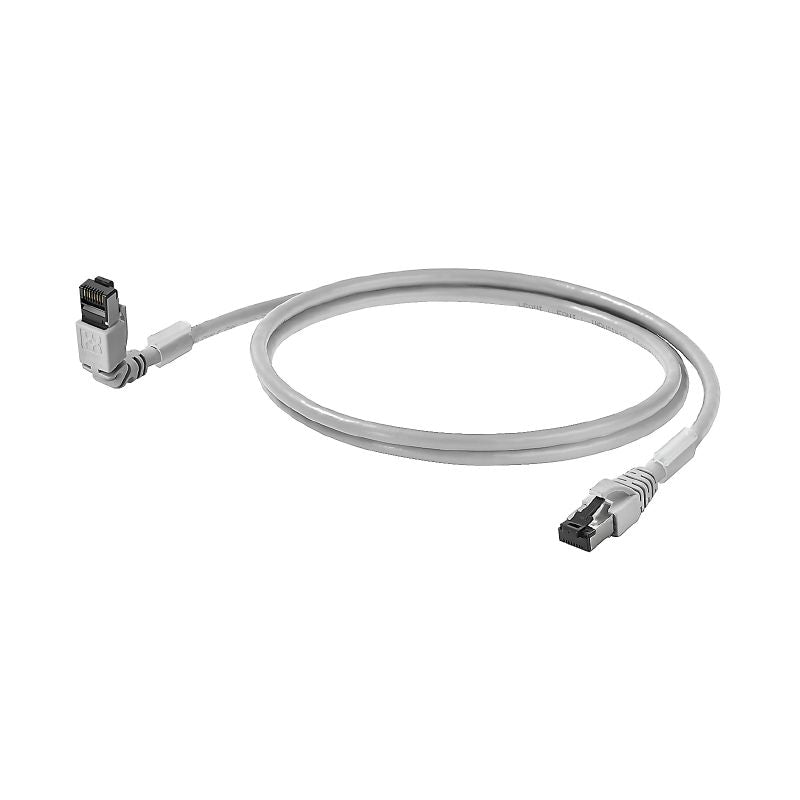

1248280015 - 1.5m Cat.6A 90° Angled RJ45 Patch Cable

1248280015 - 1.5m Cat.6A 90° Angled RJ45 Patch Cable

SKU: 1248280015   Download PDF

Select a Variant:
  • 1248280015 - 1.5m Cat.6A 90° Angled RJ45 Patch Cable
Qty:
Now $7.77   Web pricing policy
BEFORE   $0.00 Now $7.77 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Elevate your connectivity with this 15-meter patch cable, featuring a 90-degree angled RJ45 IP 20 connector Conforming to Cat6A specifications for lengths under 20 meters and Class EA for longer runs as per ISO/IEC 11801 2010 standards, this cable ensures reliable performance Constructed from LSZH material, it offers a safe and efficient solution for your networking needs.

Features and Benefits:

    •RoHS compliant without exemptions.

    •Halogen-free as per IEC 60754-2 standards.

    •Conforming to IEEE 802.3at for PoE/PoE+.

    •Twisted pair cable structure with complete shielding.

Specifications:

 Length 1.5 m
 Storage temperature -20 °C to 60 °C
 Operating temperature -20 °C to 60 °C
 Installation temperature 0 °C to 50 °C
 Current-carrying capacity at 50 °C 1 A
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Transmission rate 10 Gbit/s
 Sheath diameter 5.5 mm (min) - 5.9 mm (max)
 Number of wires 8
 Color sequence of wires white - blue, white - orange, white - green, white - brown

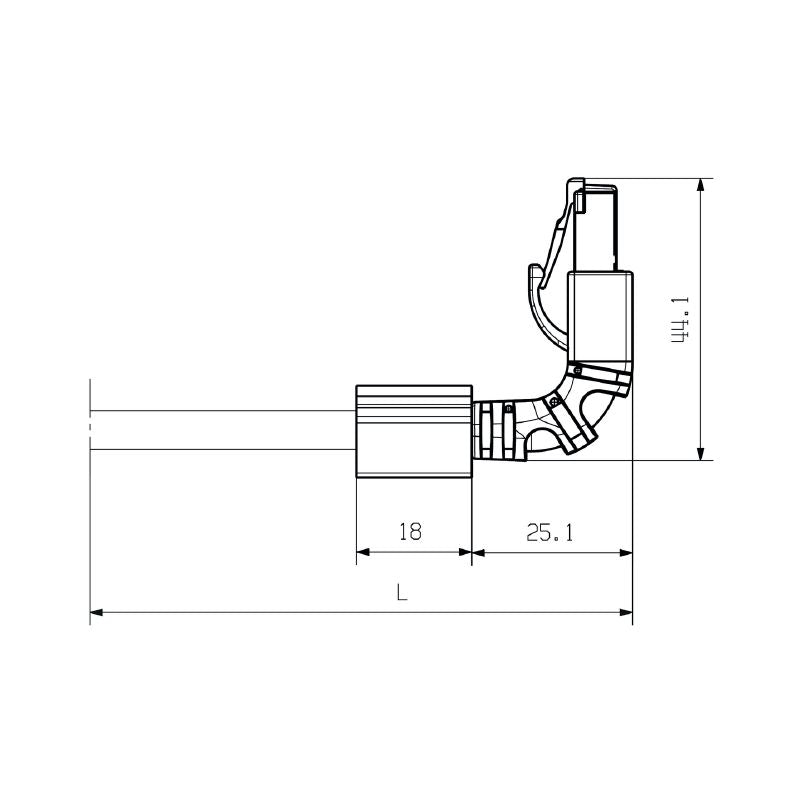

 Plug RJ45, IP20, male contact, straight, shielded on one end and angled 90° on the other
 Cable structure 4*2*AWG 27/7 - 4*2*0.1 mm²
 Insulation PE
 Resistance to flame spread in accordance with IEC 60332 standards
