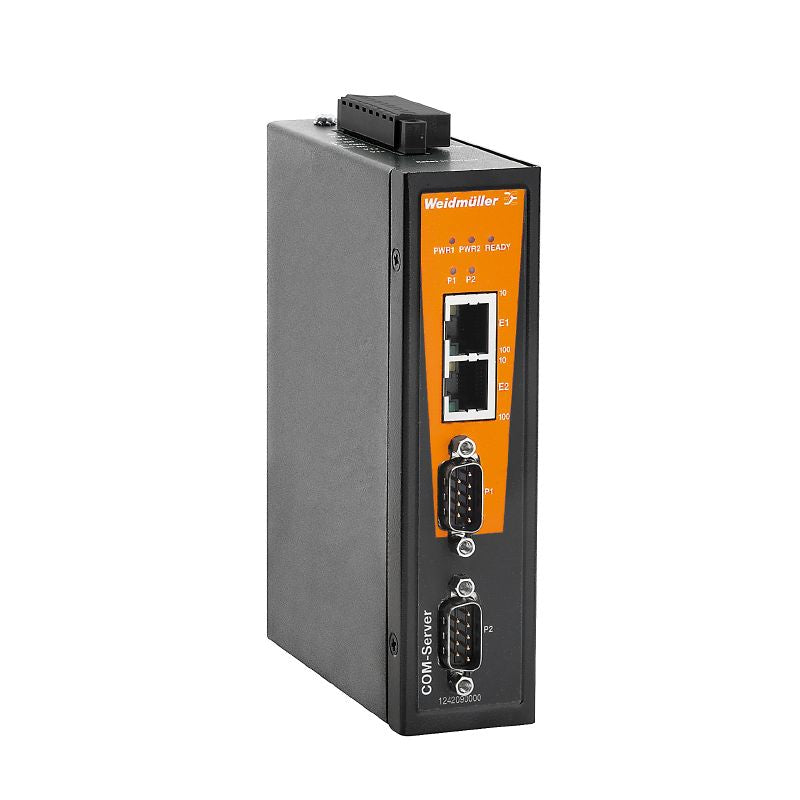

1242090000 - 2-Port Serial & Ethernet Converter for RS-232/485 & RJ45

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the IE-CS-2TX-2RS232/485, a versatile serial and Ethernet converter tailored for seamless data communication This device is equipped with two RJ45 ports supporting 10/100BASE-T(X) and two DB9 ports for RS-232/422/485 connections Built to withstand temperatures from 0 °C to 60 °C, it meets IP30 standards, making it suitable for use in demanding environments that can reach temperatures as low as -40 °C and as high as 85 °C.

This converter is RoHS compliant and features robust protection against surges and electrostatic discharge (ESD) Its design includes a removable 8-pole terminal block for easy power supply connections, accommodating a voltage range of 12 to 48 V DC This flexibility allows for straightforward installation and reliable operation in various applications.

Features and Benefits:

•2x RJ45 10/100BASE-T(X) interfaces.

•2x DB9 for RS-232/422/485.

•Protection against ESD with 15 kV for all signals.

•1 kV surge protection for the Ethernet cable.

•Web console, serial console, and Telnet console configuration options.

•Built-in buzzer and RTC for alarm functions.

Specifications:
