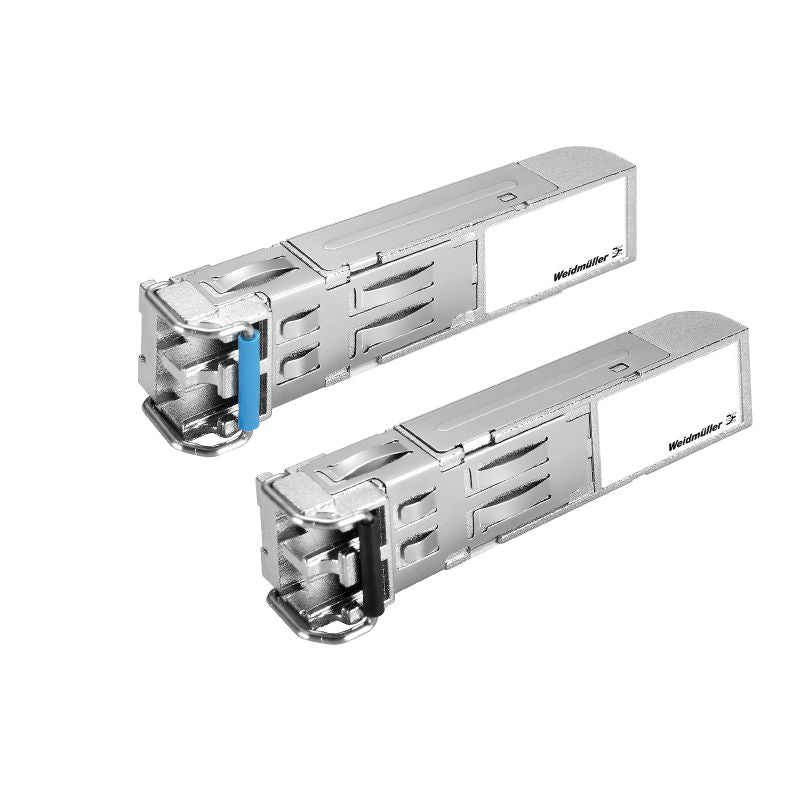

1241500000 - 1000 Mbps SFP Transceiver, LC-Duplex, 2 km Range
1241500000 - 1000 Mbps SFP Transceiver, LC-Duplex, 2 km Range
SKU: SKU: 1241500000 Download PDF
- 1241500000 - 1000 Mbps SFP Transceiver, LC-Duplex, 2 km Range
- 1241500000 - 1000 Mbps SFP Transceiver, LC-Duplex, 2 km Range
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Enhance your data transmission capabilities with this SFP transceiver, engineered for high-speed performance at 1000 Mbps It connects seamlessly through an LC-Duplex connector and supports a transmission distance of up to 2 kilometers Built to withstand environmental challenges, this device operates efficiently within a temperature range of 0 °C to 60 °C and can be stored in conditions from -40 °C to 85 °C.
Additionally, it features digital diagnostic monitoring (DDM) and adheres to RoHS standards, making it a reliable choice for your networking needs.
Features and Benefits:
•Compliant with RoHS regulations.
•Digital diagnostic monitoring function supported.
•High transmission rate of 1000 Mbps.
•Operating temperature from 0 °C to 60 °C.
•Suitable for multimode applications.
Specifications:
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | 0 °C to 60 °C |
| Humidity | 5 to 95 % (non-condensing) |
| Transmission distance | 2 km |
| Wavelength TX min | 1,270 nm |
| Wavelength TX max | 1,355 nm |
| Wavelength RX min | 1,260 nm |
| Wavelength RX max | 1,610 nm |
| Receive power min | -19 dBm |
| Receive power max | -1 dBm |
| Transmission power min | -9 dBm |
| Transmission power max | -1 dBm |
| Link-budget | 10 dB |
| Power supply | 3.3 V (via Ethernet switch) |
| Ethernet ports | 1 |
| Connector type | LC-Duplex |
