1241490000 - 1000 Mbps Multimode SFP Transceiver with LC-Duplex Connector
1241490000 - 1000 Mbps Multimode SFP Transceiver with LC-Duplex Connector
SKU: SKU: 1241490000 Download PDF
- 1241490000 - 1000 Mbps Multimode SFP Transceiver with LC-Duplex Connector
- 1241490000 - 1000 Mbps Multimode SFP Transceiver with LC-Duplex Connector
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

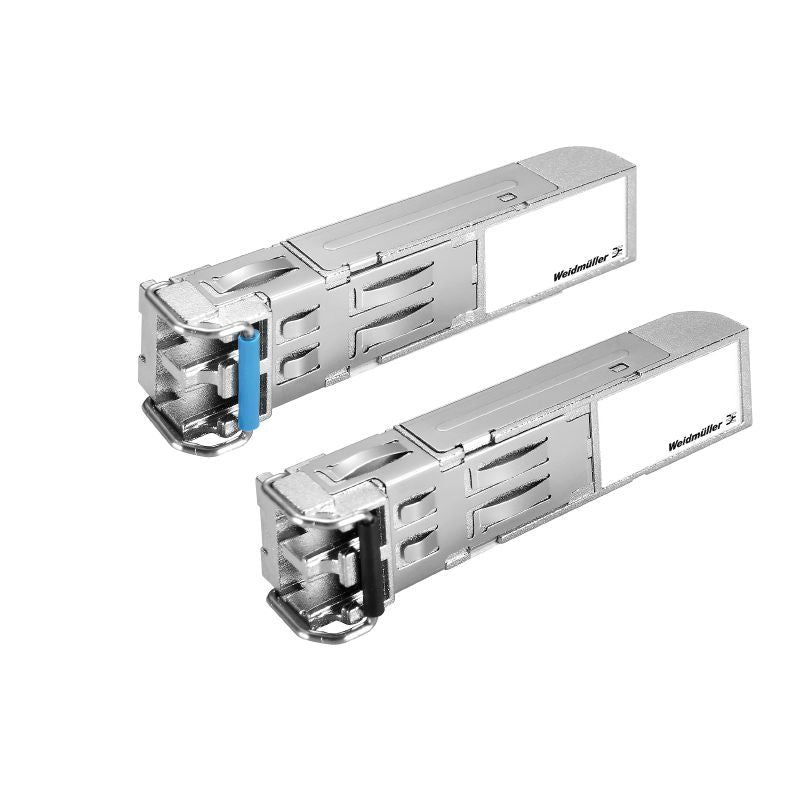

Introducing the IE-SFP-1GSXLC, a high-performance multimode SFP transceiver capable of delivering data at speeds of up to 1000 Mbps This device is equipped with an LC-Duplex connector and can transmit over distances of up to 055 km Built to function optimally in a temperature environment ranging from 0 °C to 60 °C, it adheres to RoHS guidelines for safety and environmental standards Additionally, the transceiver includes support for Digital Diagnostic Monitoring (DDM) for enhanced performance tracking.
Features and Benefits:
•Supports Gigabit Ethernet applications.
•Digital diagnostic monitoring function is supported.
•Compatible with various operating temperature conditions.
•Compact size for easy integration.
Specifications:
| Transmission rate | 1000 Mbps |
| Transceiver type | Multimode |
| Connector type | LC-Duplex |
| Transmission distance, typ. | 0.55 km |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | 0 °C to 60 °C |
| Receive power | -18 dBm to 0 dBm |
| Transmission power | -9.5 dBm to -4 dBm |
| Supply voltage | 3.3 V (via Ethernet switch) |
| Link-budget | 8.5 dB |
