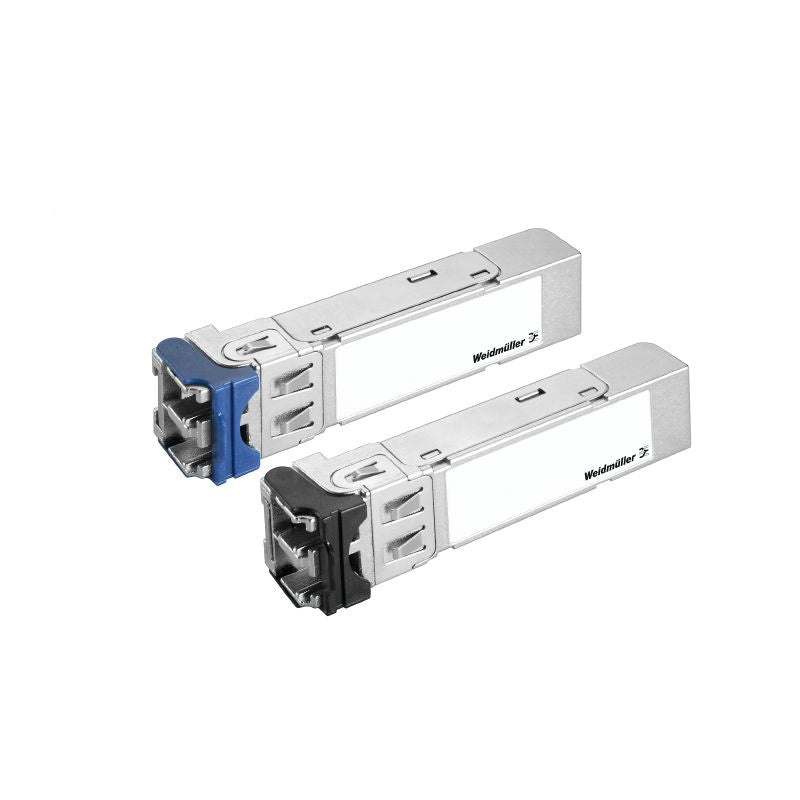

1241470000 - 100 Mbps Singlemode SFP Transceiver, LC-Duplex Support, 40 km
1241470000 - 100 Mbps Singlemode SFP Transceiver, LC-Duplex Support, 40 km
SKU: SKU: 1241470000 Download PDF
- 1241470000 - 100 Mbps Singlemode SFP Transceiver, LC-Duplex Support, 40 km
- 1241470000 - 100 Mbps Singlemode SFP Transceiver, LC-Duplex Support, 40 km
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover the reliability of this singlemode SFP transceiver, designed for seamless data transmission at a rate of 100 Mbps It features an LC-Duplex connector, allowing for effective connections over distances of up to 40 kilometers Built to perform in extreme conditions, it operates efficiently within a temperature spectrum of -40 °C to 85 °C Additionally, this transceiver is equipped with a digital diagnostic monitoring (DDM) capability, ensuring optimal performance and easy management.
Features and Benefits:
•Supports digital diagnostic monitoring function.
•Compliant with RoHS standards.
•Operates over a wide temperature range.
•Designed for a typical transmission distance of 40 km.
•Utilizes LC-Duplex type connector.
•Fast Ethernet connectivity.
Specifications:
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -40 °C to 85 °C |
| Transmission rate | 100 Mbps |
| Transceiver type | Singlemode |
| Transmission distance, typical | 40 km |
| Wavelength TX (min) | 1,280 nm |
| Wavelength TX (max) | 1,340 nm |
| Wavelength RX (min) | 1,100 nm |
| Wavelength RX (max) | 1,600 nm |
| Receive power (min) | -34 dBm |
| Receive power (max) | -3 dBm |
| Transmission power (min) | -5 dBm |
| Transmission power (max) | 0 dBm |
| Link budget | 29 dB |
| Ethernet ports | 1 |
| Supply voltage | 3.3 V (via Ethernet switch) |
| Type of mounting | Insert in SFP slot |
| EMC standards | ['EN 55032', 'EN 55024'] |
| Safety standard | ['UL 62368-1', 'EN 62368-1', 'EN 60825-1'] |
