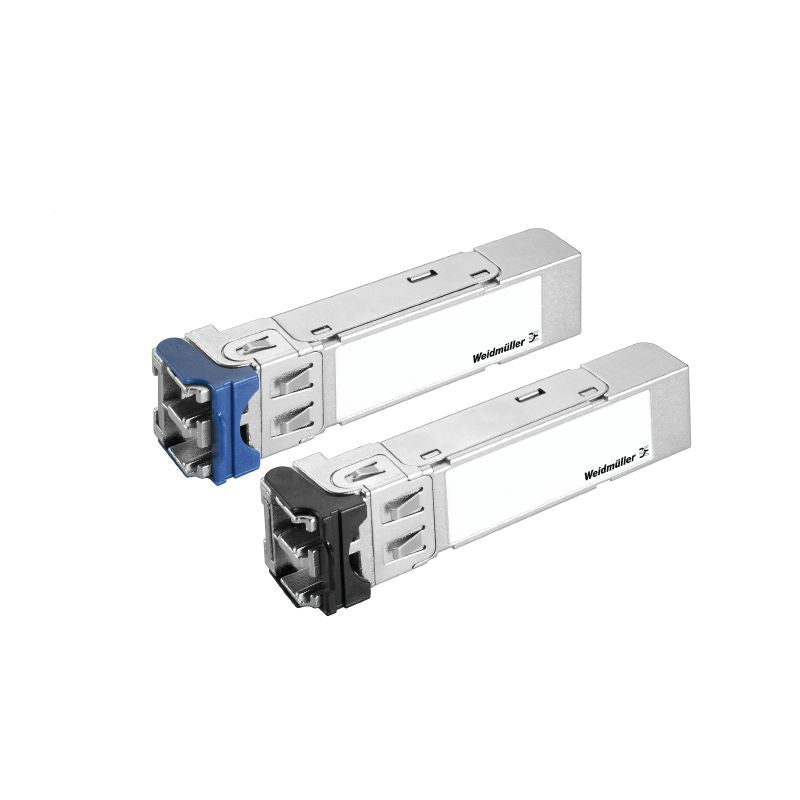

1241450000 - 100 Mbps Multimode SFP Transceiver, 4 km Range
1241450000 - 100 Mbps Multimode SFP Transceiver, 4 km Range
SKU: SKU: 1241450000 Download PDF
- 1241450000 - 100 Mbps Multimode SFP Transceiver, 4 km Range
- 1241450000 - 100 Mbps Multimode SFP Transceiver, 4 km Range
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a versatile multimode SFP transceiver designed for seamless connectivity at a transmission rate of 100 Mbps Capable of reaching distances up to 4 km, it operates efficiently across a wide temperature spectrum from -40 °C to 85 °C This transceiver complies with RoHS regulations and features a digital diagnostic monitor (DDM) for enhanced performance insights, ensuring reliable operation for all your networking needs.
Features and Benefits:
•Multimode transceiver with LC-Duplex connector.
•RoHS compliant with exemption.
•Supports storage and operating temperatures from -40 °C to 85 °C.
•Humidity tolerance of 5 to 95% (non-condensing).
Specifications:
| Transmission Rate | 100 Mbps |
| Max Distance | 4 km |
| Operating Temperature | -40 °C to 85 °C |
| Storage Temperature | -40 °C to 85 °C |
| Wavelength TX Min | 1280 nm |
| Wavelength TX Max | 1340 nm |
| Wavelength RX Min | 1100 nm |
| Wavelength RX Max | 1650 nm |
| Receive Power Min | -32 dBm |
| Receive Power Max | -3 dBm |
| Transmission Power Min | -18 dBm |
| Transmission Power Max | -8 dBm |
| Link Budget | 14 dB |
| Supply Voltage | 3.3 V |
| Ethernet Ports | 1 |
| Plug-in Connector | Duplex-LC |
